DWS · Quad-laser industrial SLA

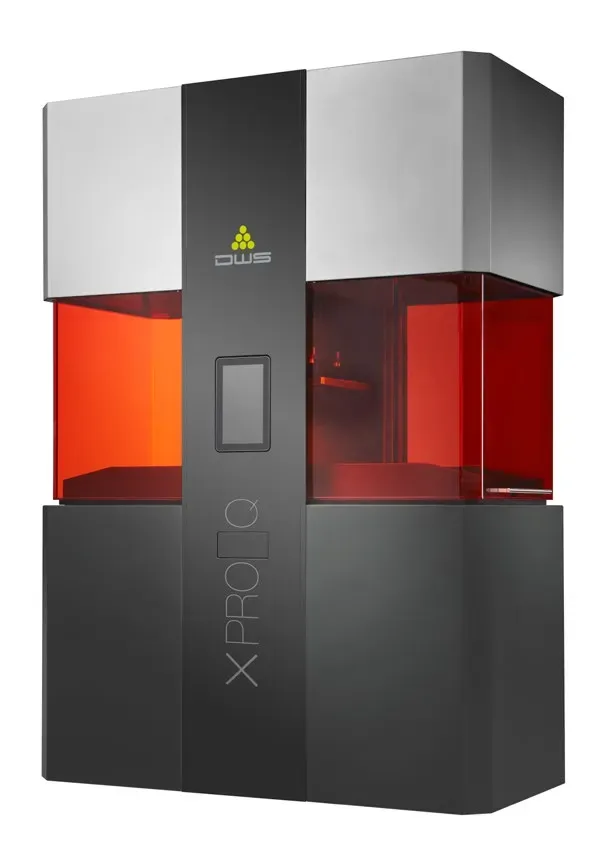

DWS XPRO Q / QHR
Quad-laser industrial SLA on a 300 × 300 × 300 mm working area, for high-volume production that needs resolution too. Four BlueEdge lasers run at once to shorten production times. The XPRO QHR is the HR laser version.
More from DWS- Working area, mm
- 300 × 300 × 300
- BlueEdge® lasers working at once
- 4
- Slice thickness, micron
- 10-100
DWS do not publish machine prices, so neither do we. We quote on the build and materials your work needs.
- Sold, installed and supported in the UK by Europac 3D
- Nauta+ and Fictor software included
Why the XPRO Q
Used for high-volume production, jewellery casting, mechanical parts, moulding.
Four BlueEdge lasers at once
Four solid-state BlueEdge® laser sources work simultaneously with quad-galvanometer scanning, shortening production times across the full working area.
HR laser version
The XPRO QHR adds an HR laser for production where precision and resolution both matter.
Tank Translation Technology
The TTT System (Tank Translation Technology) keeps the machine easy to use and, DWS say, reduces tank wear.
Cluster-ready, touch-screen control
Suitable for cluster configurations, with an integrated touch-screen monitor PC.
Specification
Specifications from dwssystems.com.
- Working area, mm
- 300 × 300 × 300
- BlueEdge® lasers working at once
- 4
- Slice thickness, micron
- 10-100
| Technology | Laser stereolithography (SLA) |
|---|---|
| Working area | 300 × 300 × 300 mm |
| Laser source | Solid-state BlueEdge® |
| Slice thickness | 10-100 micron |
| Scanning method | Quad-galvanometer |
| Software included | Nauta®+, Fictor® |
| Input file formats | .stl, .slc, .nauta, .fictor, .mkr, .3dm, .3ds, .ply, .obj, .lwo, .x |
|---|---|
| Machine size | 704 × 1446 × 2048 mm |
| Weight | 500 kg |
| Operating temperature and humidity | 20-25°C, 60% |
| Power supply | AC 230 V, 50 Hz |
| Electrical consumption | 500 W |
Software selector
The software that runs it
Nauta+ and Fictor
Materials it runs
DWS Fusia 445
Yellow castable for volume jewellery: tall casting trees, chains, bracelets and pre-set stone pieces with medium to high wall thickness. TPO-free Fusia 446 available.
View materialDWS Fusia Digital Wax
Green, TPO-free castable that behaves like traditional wax, for jewellery with smooth, broad surfaces, casting trees, chains and one-off industrial lost-wax parts.
View materialDWS Fusia DC905
Red castable for jewellery with very fine detail plus tight gaps: tennis chains, filigree and pre-set stones. TPO-free Fusia DC908 available.
View materialDWS Fusia DC800
Green castable for direct casting of jewellery that mixes filigree and solid sections. Burns out very easily with standard investments.
View materialCompare with
| DWS XPRO Q / QHR | DWS XPRO QL / QLHR | DWS XPRO SL | |
|---|---|---|---|
| Price | POA | POA | POA |
| Technology | Laser stereolithography (SLA) | Laser stereolithography (SLA) | Laser stereolithography (SLA) |
| Build volume | 300 × 300 × 300 mm | 300 × 300 × 500 mm | 300 × 300 × 500 mm |
| Layer thickness | 10-100 micron | 10-100 micron | 10-100 micron |
| Light source | Solid-state BlueEdge® | Solid-state BlueEdge® | Solid-state BlueEdge® |
| Machine size | 704 × 1446 × 2048 mm | 704 × 1446 × 2420 mm | 704 × 1446 × 2420 mm |
| Weight | 500 kg | 550 kg | 550 kg |
See the XPRO Q before you decide
Tell us what you make and we will arrange a demonstration. Or send us a part: we will tell you which printer suits it. We will print it for you if none is worth buying yet.
