HeyGears resins

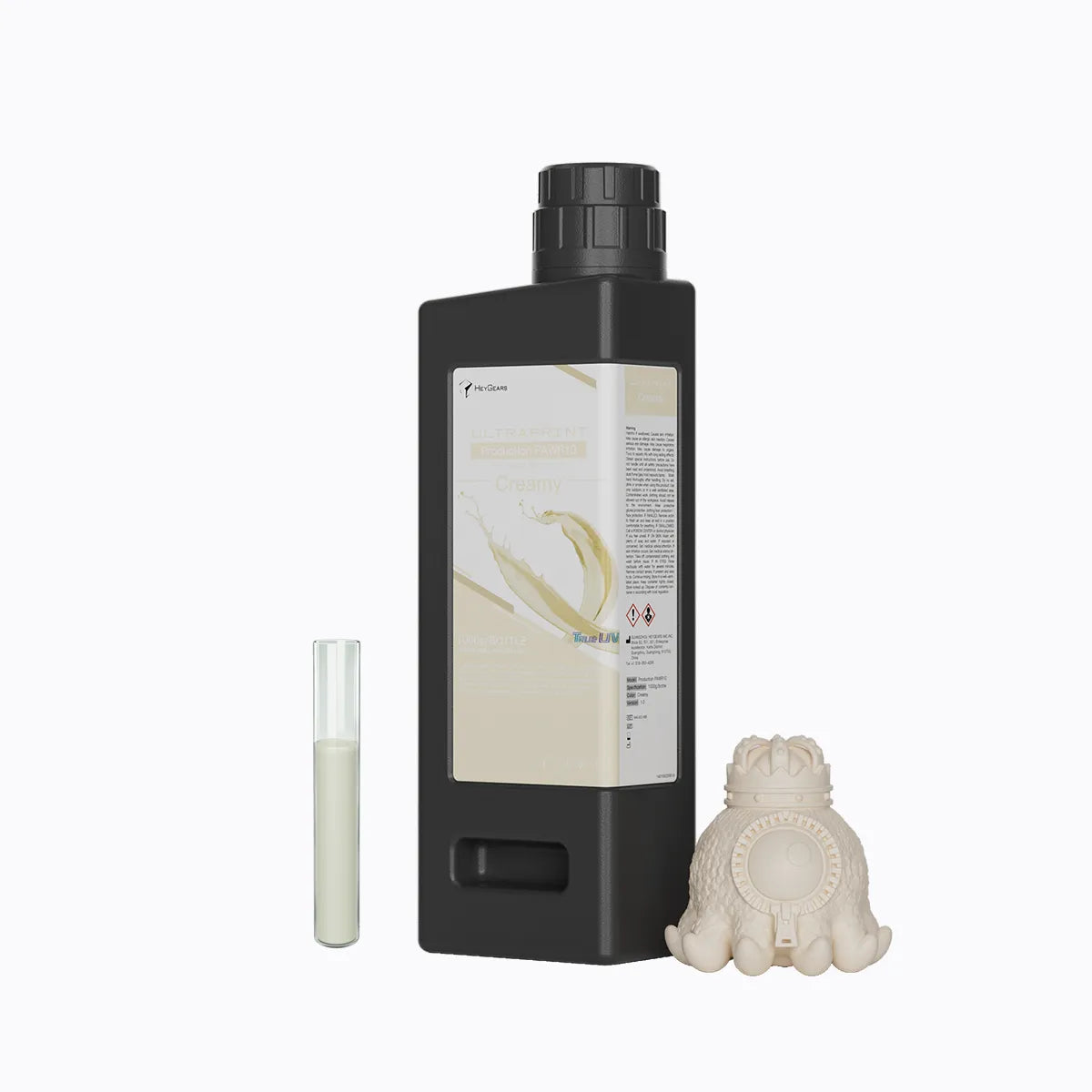

HeyGears UltraPrint PAWR10 Wear-Resistant Resin
Production resin for parts that see handling, contact and abrasion.
More from HeyGearsProperties
Figures as HeyGears publish them, checked on heygears.com in October 2026. They are HeyGears Lab averages with a deviation of ±10%. Rows marked (data sheet) come from the HeyGears technical data sheet.
- Colours
- Creamy, Cream Yellow
- Bottle
- 1000 g
- Surface hardness, pencil test
- 2H
| Colours | Creamy, Cream Yellow |
|---|---|
| Bottle | 1000 g |
| Surface hardness, pencil test | 2H |
| Flexural strength | 58 MPa |
| Flexural modulus | 1300 MPa |
| Tensile strength | 34 MPa (data sheet) |
| Tensile modulus | 1290 MPa (data sheet) |
| Elongation at break | 20% |
|---|---|
| Impact strength, notched | 64 J/m |
| Work of fracture | 4300 J/m² |
| Heat deflection temperature | 52°C |
| Hardness | 81 Shore D |
| Viscosity | 373 mPa·s |
| Water sorption | 2.5% |
Questions we get asked
Pricing and availability
Prices shown are UK benchmarks and are confirmed on enquiry. Tell us the configuration you need. We will quote it, including resin, post-processing and delivery.
Buying in the UK
UK company, UK demonstrations, UK-based buying advice — backed by HeyGears’ global technical support and knowledge base. Speak to us before you buy and arrange a demonstration with your own parts.
