DWS · High-resolution production SLA
DWS XCELL 300Q / QHR
The XCELL 300 with DWS's quad-laser light engine, aimed at the finest jewellery and eyewear detail in volume. A 300 × 300 × 550 mm build area and Smart Coating for unattended runs. Also available as the XCELL 300QHR.
More from DWS- Working area, mm
- 300 × 300 × 550
- BlueEdge lasers
- 4
- Slice thickness, microns
- 10-200
DWS do not publish machine prices, so neither do we. We quote on the build and materials your work needs.
- Sold, installed and supported in the UK by Europac 3D
- Nauta+ and Fictor software included
- Datasheet available to download
Why the XCELL 300Q

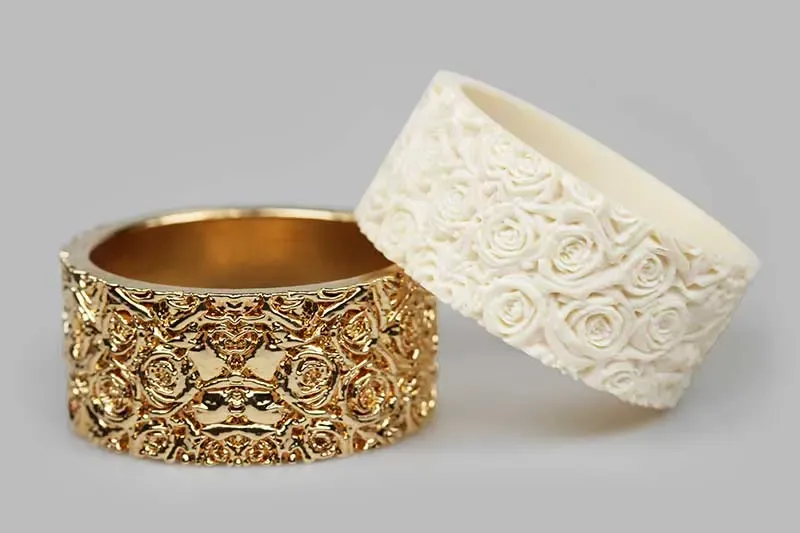

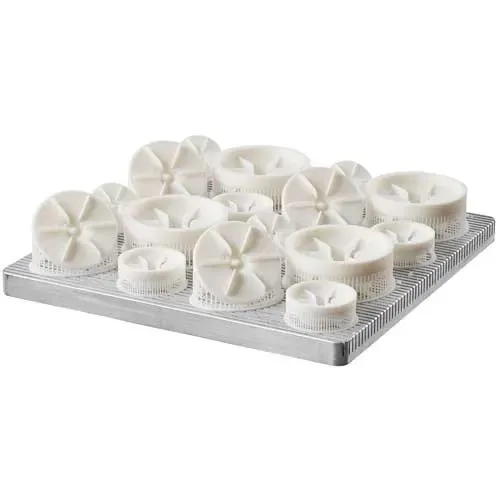

Used for jewellery, eyewear, jigs and fixtures, mechanical parts.
Quad-laser light engine
DWS's proprietary quad-laser engine with quad-galvanometer scanning, which DWS describe as the highest resolution available for jewellery and eyewear.
Minimal finishing
The quad-laser engine gives surfaces that need minimal finishing.
Smart Coating for unattended runs
Smart Coating supports repeatability and unmanned operation over several days, in a highly automated process.
Quick change, low upkeep
Quick material change, 600 W electrical consumption and, DWS say, zero maintenance.
Specification
Specifications from dwssystems.com.
- Working area, mm
- 300 × 300 × 550
- BlueEdge lasers
- 4
- Slice thickness, microns
- 10-200
| Technology | Smart Coating stereolithography |
|---|---|
| Working area | 300 × 300 × 550 mm |
| Laser source | Solid-state BlueEdge (quad) |
| Slice thickness | 10-200 microns, depending on material |
| Scanning method | Quad galvanometer |
| Software included | Nauta+, Fictor |
| Input file formats | .stl, .slc, .nauta, .fictor, .mkr, .3dm, .3ds, .ply, .obj, .lwo, .x |
|---|---|
| Machine size | 1503 × 899 × 1979 mm |
| Weight | 550 kg |
| Operating temperature and humidity | 20-25°C / 60% |
| Power supply | AC 230 / 115 V, 50-60 Hz |
| Electrical consumption | 600 W |
Software selector
The software that runs it
Nauta+ and Fictor
Materials it runs
DWS Fusia 445
Yellow castable for volume jewellery: tall casting trees, chains, bracelets and pre-set stone pieces with medium to high wall thickness. TPO-free Fusia 446 available.
View materialDWS Fusia Digital Wax
Green, TPO-free castable that behaves like traditional wax, for jewellery with smooth, broad surfaces, casting trees, chains and one-off industrial lost-wax parts.
View materialDWS Fusia DC905
Red castable for jewellery with very fine detail plus tight gaps: tennis chains, filigree and pre-set stones. TPO-free Fusia DC908 available.
View materialDWS Fusia DC800
Green castable for direct casting of jewellery that mixes filigree and solid sections. Burns out very easily with standard investments.
View materialCompare with
| DWS XCELL 300Q / QHR | DWS XCELL 300S | DWS XCELL 900Q / QHR | |
|---|---|---|---|
| Price | POA | POA | POA |
| Technology | Smart Coating stereolithography | Smart Coating stereolithography | Smart Coating stereolithography |
| Build volume | 300 × 300 × 550 mm | 300 × 300 × 550 mm | 900 × 300 × 550 mm |
| Layer thickness | 10-200 microns, depending on material | 10-200 microns, depending on material | 10-200 microns, depending on material |
| Light source | Solid-state BlueEdge (quad) | Single solid-state BlueEdge | Twelve solid-state BlueEdge |
| Machine size | 1503 × 899 × 1979 mm | 1503 × 899 × 1979 mm | 2100 × 860 × 2450 mm |
| Weight | 550 kg | 550 kg | 1200 kg |
See the XCELL 300Q before you decide
Tell us what you make and we will arrange a demonstration. Or send us a part: we will tell you which printer suits it. We will print it for you if none is worth buying yet.
