HeyGears UltraCraft Reflex 2
From prototype to functional part.
A 161-zone OptiZone light engine and a 230 × 144 × 230 mm build, taking every Reflex-series material.
HeyGears · Engineering and prototyping LCD

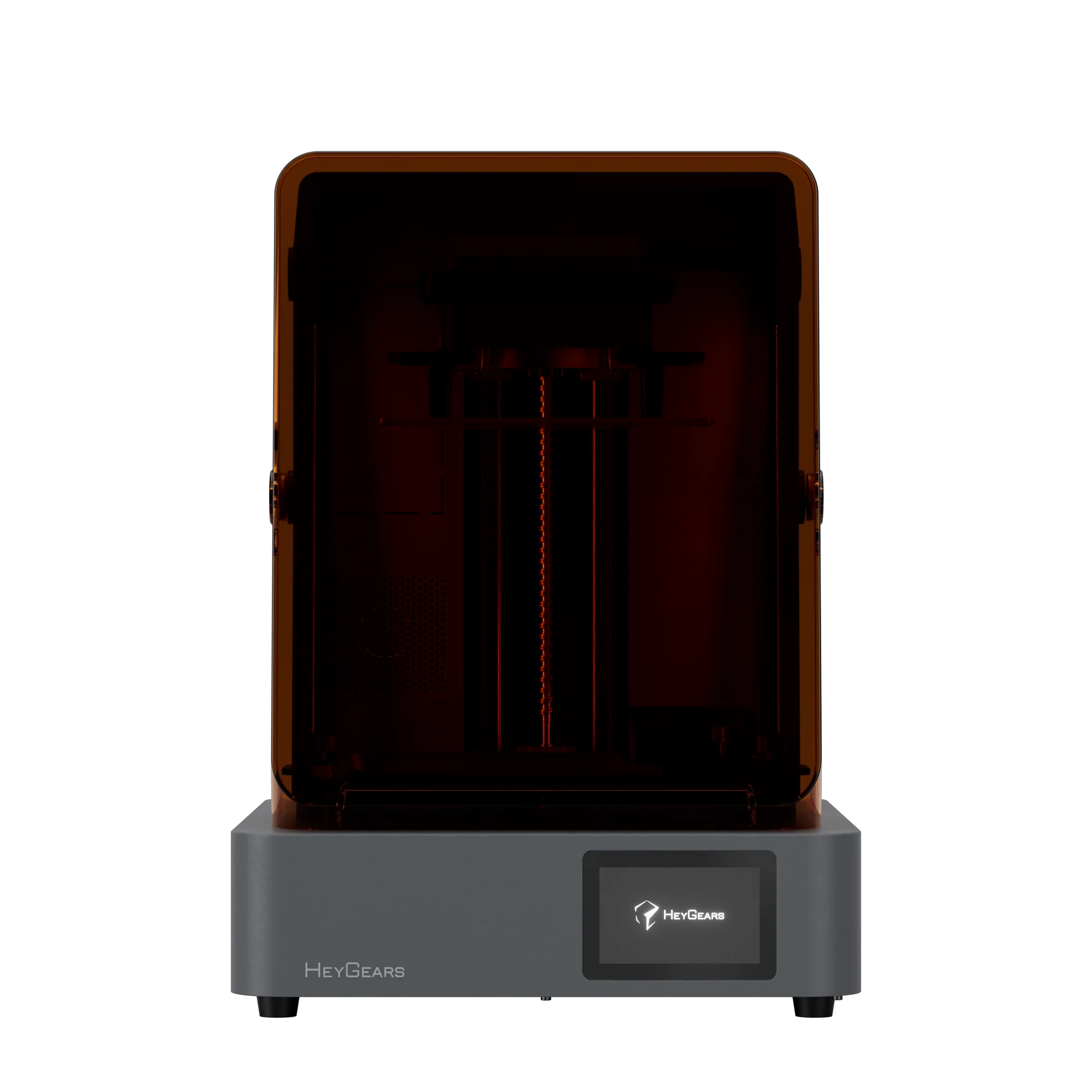

HeyGears Reflex 2
A professional LCD (MSLA) engineering and prototyping system for product development as well as functional parts, with a 161-zone OptiZone light engine. It takes every Reflex-series material.
More from HeyGears- Build volume, mm
- 230 × 144 × 230
- OptiZone light zones
- 161
- Amber Screen Pro life
- 6,000+ h
Sold and supported from the UKTry it first: we print a free sample of your part, or see it in Cheshire.
- Your part printed on it first, so you can test before you buy
- Prints are prepared in Blueprint Studio, HeyGears’ own software
What it prints
Sample parts as HeyGears show them.
Smooth surfaces
A miniature with smooth, flowing surfaces. Model by Nerikson.
Sharp details
Fine horns, hair and feathers held crisp. Model by Nerikson.
Advanced materials
161 light zones with stable hardware let the Reflex 2 run more advanced resins.
7,240 MPa flexural modulus
UltraPrint PAH270 resin under a bend test.
88% light transmittance
A clear part in UltraPrint PAT10 Transparent Resin.
109 MPa flexural strength
UltraPrint PAU20 General Purpose Tooling Resin under a bend test.
Specification
HeyGears’ Reflex 2 specification and Reflex Series Tech Specs, heygears.com. In the box from the HeyGears Wiki Reflex 2 operation guidelines. Checked 13 October 2026.
- Build volume, mm
- 230 × 144 × 230
- OptiZone light zones
- 161
- Amber Screen Pro life
- 6,000+ h
| Technology | LCD (MSLA) |
|---|---|
| Build volume | 230 × 144 × 230 mm |
| Screen | 10.7-inch Amber Screen Pro, over 6,000 hours |
| Light engine | 161-zone OptiZone |
| Optical wavelength | 385+ nm |
| XY native pixel | 40 μm |
| Accuracy | 20 μm |
| Layer thickness | 20 to 250 μm |
| Light uniformity | ≥94%, 86,020-zone calibration |
| Z-axis | C5 grade, layer error ≤2 μm |
| Frame | Die-cast unibody base |
| Release film | nFEP |
| Levelling | Floating platform, closes gaps up to 240 μm |
| Residue detection | 0.01 N force feedback, 0.15 mm residue |
|---|---|
| Scraper | Standard scraper |
| Resin heating | Optional heating scraper |
| Resin refill | Automatic |
| Print monitoring | Force curve monitoring |
| Machine size | 430 × 445 × 605 mm |
| Weight | 25.5 kg |
| Rated power | 350 W |
| Voltage | 100 to 240 V, 50/60 Hz |
| Connectivity | USB, Wi-Fi, LAN |
| External interfaces | GreenPrint purification module, Pulsing Release Module 2, RJ-45 |
| Interface languages | English, Simplified Chinese |
| Compatible resin | All Reflex-series materials |
In the box
- 3D Printer
- Power cord
- Build platform
- Resin tank
- Regular scraper
- Part removal tool
- Spatula
- T-type wrench
- Resin-refill lid
- Quick start guide
- After-sales service guide
