UnionTech · Dual-laser SLA for tyre mould production

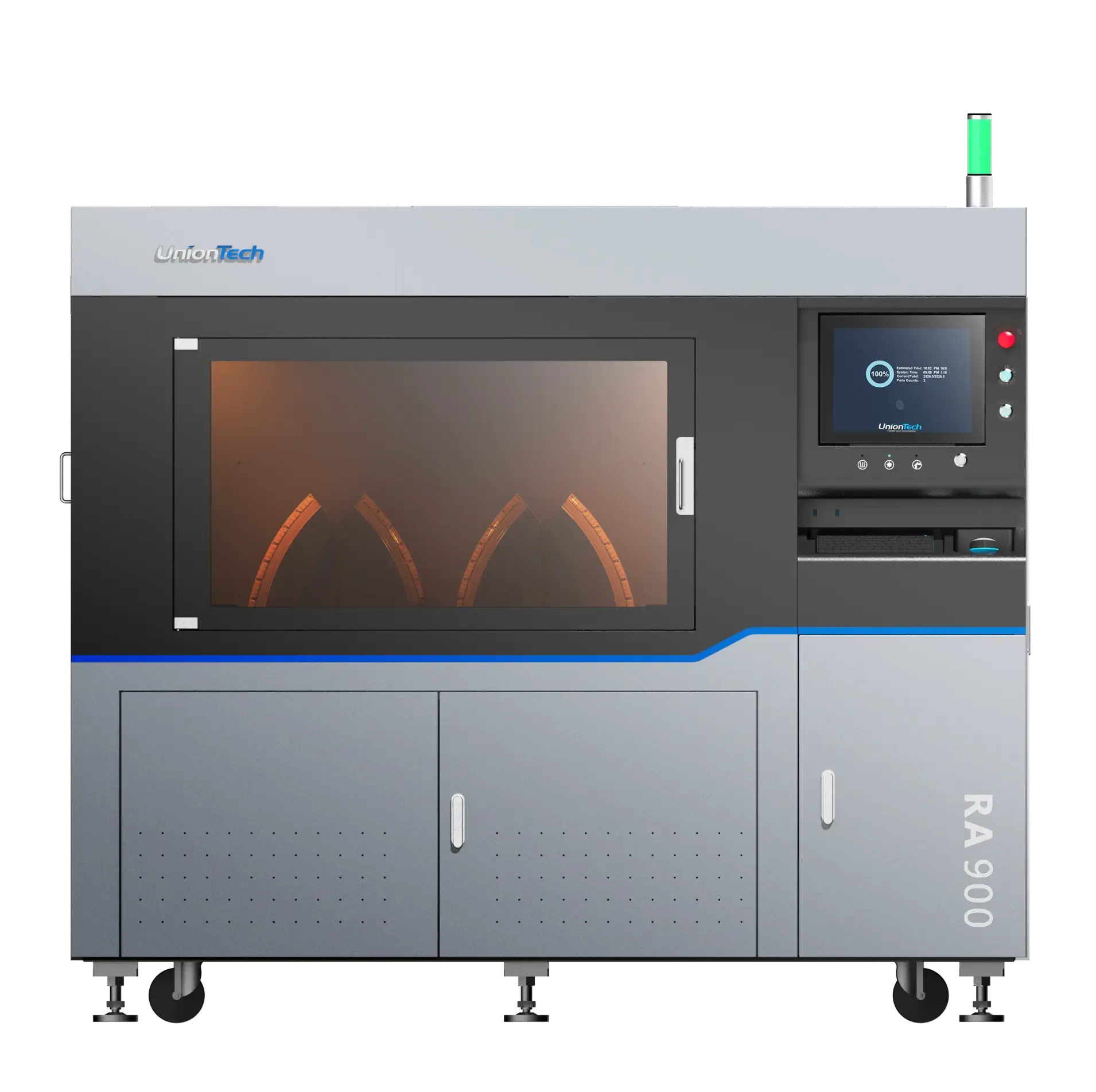

UnionTech RA900
A dual-laser SLA printer for tyre mould mass production. It prints four medium tread moulds in about 36 hours, where UnionTech say CNC takes two to three weeks.
More from UnionTech- Build volume, mm
- 950 × 550 × 400
- Lasers
- 2
- Dimensional accuracy, mm
- ±0.08
Priced on configuration. We quote on the build size, laser and materials your work needs.
- Sold, installed and supported in the UK by Europac 3D
Why the RA900
For tyre mould mass production.
Four moulds in one build
Two lasers and a 950 × 550 × 400 mm build volume sized for tyre moulds. It prints four medium tread moulds in about 36 hours, under 10 hours each.
Fine finish and roundness
UnionTech quote surface roughness under Ra 3.5 µm, roundness deviation of 0.05 mm or less and dimensional accuracy of ±0.08 mm.
Steady in long runs
UnionTech quote a yield above 95% in continuous operation, helped by a new enclosed optical path.
Prepared in one click
The RA900 ships with UT-ONE, which places parts, generates supports and schedules production automatically.
Batch size of one
UnionTech say it supports zero-inventory, lot-size-one manufacturing.
What it makes
UnionTech show tyre mould samples printed on the RA900.
Tyre base moulds
Four printed at once, in a build volume sized for them.
Tread moulds for production
UnionTech position the RA900 for ventless, insert-free tyre moulds, where finish and roundness matter.
Specification
Specifications from uniontech3d.com. UnionTech ask buyers to confirm the current offering, so check any figure you plan around with us.
- Build volume
- 950 × 550 × 400 mm
- Lasers
- 2
- Four moulds
- About 36 hours
| Build volume | 950 × 550 × 400 mm |
|---|---|
| Accuracy | Under 100 mm: ±0.1 mm. 100 mm and over: ±0.1% of the dimension. Dimensional accuracy ±0.08 mm |
| Layer thickness | 0.05-0.25 mm |
| Lasers | 2, solid-state frequency-tripled Nd:YVO₄ |
| Wavelength | 355 nm |
| Beam size | 0.07-0.85 mm |
| Scanning speed | 6-18 m/s |
| Surface roughness | Below Ra 3.5 µm |
| Roundness deviation | 0.05 mm or less |
| Control software | UnionTech RSCON |
| Preparation software | PolydevsPro, BPC |
|---|---|
| Operating system | Windows 10 |
| Data interface | .stl |
| Electrical supply | 100-240 VAC, 50/60 Hz, 3.0 kVA |
| Room temperature | 22-26 °C |
| Relative humidity | Below 40% |
| Resin vat capacity | 370 kg |
| Resin vat size | 997 × 787 × 457 mm |
| Machine size | 2152 × 1445 × 1836 mm |
| Machine weight | 1100 kg |
Before it arrives
What the RA900 needs from your site, from UnionTech's published data.
Floor space and weight
The machine measures 2152 × 1445 × 1836 mm and weighs 1100 kg. Check the route in and the floor loading before delivery.
Power
It needs 100-240 VAC, 50/60 Hz, at 3.0 kVA.
The room
UnionTech specify a room at 22-26 °C with relative humidity below 40%.
Data and network
It takes .stl files and runs on Windows 10.
Software selector
The software that runs it
Included with the printer
UnionTech RSCON
UnionTech's control software. It runs the printer under closed-loop control and takes .stl files from your preparation software.
UnionTech UT-ONE
Ships with the RA900. It places parts and generates supports automatically. It also schedules production. UnionTech also list PolydevsPro and BPC for part preparation.
Bought, installed and supported in the UK
Europac 3D supplies UnionTech printers in the UK.
Advice before you buy
Tell us what you make. We will tell you whether the RA900 suits it, then quote on the configuration and materials your work needs.
Installation
We install the printer on your site.
Training
We train your operators to run the printer and its software.
Service and support
Support after installation comes from Europac 3D in the UK, backed by UnionTech.
RA900 questions
How fast is the RA900?
UnionTech quote four medium tread moulds in about 36 hours, under 10 hours a mould, against two to three weeks for CNC.
What finish and accuracy does it hold?
UnionTech quote surface roughness under Ra 3.5 µm, roundness deviation of 0.05 mm or less and dimensional accuracy of ±0.08 mm.
How does it differ from the RA600?
The RA900 has two lasers, a larger 950 × 550 × 400 mm build sized for four tyre base moulds, faster scanning at 6-18 m/s and ships with UT-ONE.
What does the room need?
UnionTech specify a room at 22-26 °C with relative humidity below 40%. The printer needs 100-240 VAC, 50/60 Hz, at 3.0 kVA.
Who installs and supports the RA900 in the UK?
Europac 3D. We supply, install and support UnionTech printers in the UK, as well as training your operators.
Compare with
| UnionTech RA900 | UnionTech RA600 | UnionTech RSPro1400 | |
|---|---|---|---|
| Price | POA | POA | POA |
| Build volume | 950 × 550 × 400 mm | 600 × 600 × 400 mm | 1400 × 700 × 500 mm |
| Accuracy, parts under 100 mm | ±0.1 mm | ±0.1 mm | ±0.2 mm |
| Layer thickness | 0.05-0.25 mm | 0.05-0.25 mm | 0.1-0.25 mm |
| Lasers | 2 × 355 nm | 355 nm | 2 × 355 nm |
| Scanning speed | 6-18 m/s | 8-15 m/s | 6-10 m/s |
| Machine weight | 1100 kg | 850 kg | 1907 kg |
See the RA900 before you decide
Tell us what you make and we will arrange a demonstration. Or send us a part: we will tell you which printer suits it. We will print it for you if none is worth buying yet.
