HeyGears UltraCraft Reflex Turbo
The Reflex, with a longer-lived screen.
An upgraded Amber screen that lasts 2.5 times as long, running the full UltraPrint range through Blueprint Studio.
HeyGears · Professional Reflex platform
HeyGears UltraCraft Reflex Turbo
The Turbo revision of the original UltraCraft Reflex, with an upgraded Amber screen. It runs the full UltraPrint resin range through Blueprint Studio.
More from HeyGears- Build volume, mm
- 192 × 121 × 220
- XY native pixel
- 33 μm
- Amber screen life
- 2.5×
Sold and supported from the UKTry it first: we print a free sample of your part, or see it in Cheshire.
£1,299ex VAT, £1,558.80 inc VAT
Print my part and send it back1 item£1,299ex VAT, each at its own price
Get a quote for this kit- Your part printed on it first, so you can test before you buy
- Prints are prepared in Blueprint Studio, HeyGears’ own software
Specification
HeyGears’ Reflex Turbo specification and Reflex Series Tech Specs, heygears.com, checked 13 October 2026.
- Build volume, mm
- 192 × 121 × 220
- XY native pixel
- 33 μm
- Amber screen life
- 2.5×
| Technology | LCD (MSLA) |
|---|---|
| Build volume | 192 × 121 × 220 mm |

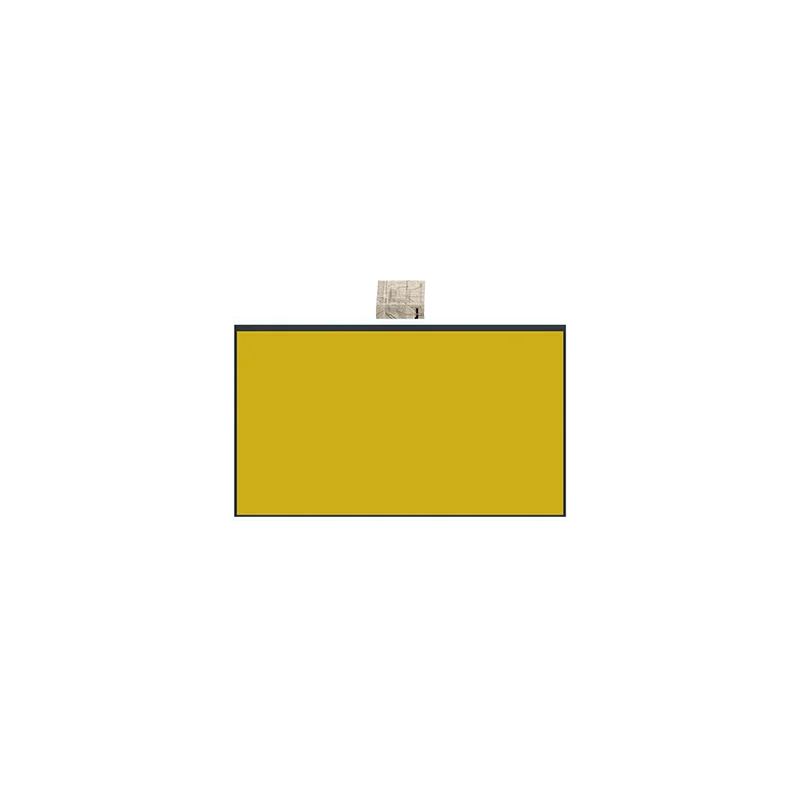

| Screen | 9.25-inch Amber screen, 22% more contrast, 2.5× the life |
| Light source | COB, 385+ nm |
| XY native pixel | 33 μm |
| Accuracy | ±16 μm |
| Z-axis | C5 ball screw, ±2 μm repeatability |
| Frame | Die-cast base |
| Release film | nFEP |
| Residue detection | 0.1 N force sensors, detects 0.2 mm residue |
| Levelling | Floating screen, 0.15°, closes gaps up to 240 μm |
| Resin refill | Automatic, detects to within 5 g |
| Resin heating | Heated resin tank, 10 to 22 °C in 20 minutes |
|---|---|
| Print monitoring | Force curve monitoring |
| Smallest pillar | 0.136 mm |
| Resin profiles | Up to 180 resin and process combinations |
| External interfaces | Pulsing Release Module, RJ-45 Ethernet |
| Machine size | 400 × 420 × 572 mm |
| Weight | 25 kg |
| Rated power | 350 W |
| Voltage | 100 to 240 V AC, 50/60 Hz |
| Connectivity | USB drive, Wi-Fi, Ethernet |
| Interface languages | English, Simplified Chinese, Japanese |
