DWS · Large-volume industrial SLA
DWS XPRO SL
Single-laser industrial SLA with a tall 300 × 300 × 500 mm working area, for fashion accessories, footwear and big parts at a low running cost. It keeps the performance of the XPRO S with a 500 mm Z axis.
More from DWS- Working area, mm
- 300 × 300 × 500
- Solid-state BlueEdge® laser
- 1
- Slice thickness, micron
- 10-100
DWS do not publish machine prices, so neither do we. We quote on the build and materials your work needs.
- Sold, installed and supported in the UK by Europac 3D
- Nauta+ and Fictor software included
Why the XPRO SL

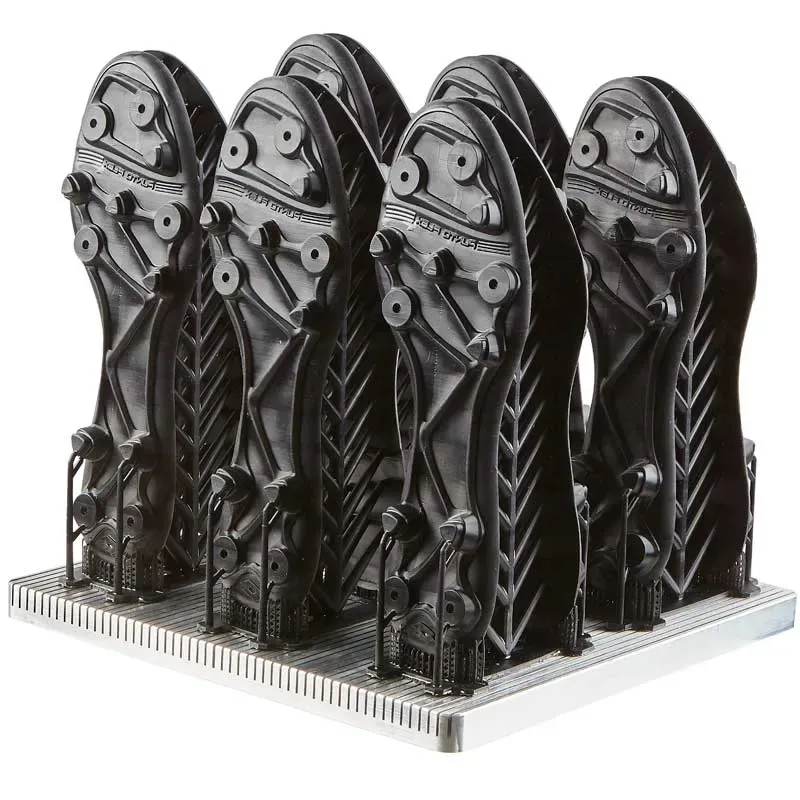

Used for fashion accessories, footwear, luxury leather goods, fashion design, gaskets, jigs and fixtures.
500 mm Z axis
The same performance as the XPRO S with the Z axis extended to 500 mm, for producing large quantities of models, including big parts, quickly.
Low running costs
Low running and maintenance costs. Strong value for money thanks to the large working area.
Built for fashion and footwear
DWS aim the XPRO SL at accessories, fashion design, footwear and luxury leather goods.
Integrated touch screen
An integrated touch-screen monitor PC on the machine.
Specification
Specifications from dwssystems.com.
- Working area, mm
- 300 × 300 × 500
- Solid-state BlueEdge® laser
- 1
- Slice thickness, micron
- 10-100
| Technology | Laser stereolithography (SLA) |
|---|---|
| Working area | 300 × 300 × 500 mm |
| Laser source | Solid-state BlueEdge® |
| Slice thickness | 10-100 micron |
| Scanning method | Galvanometer |
| Software included | Nauta®+, Fictor® |
| Input file formats | .stl, .slc, .nauta, .fictor, .mkr, .3dm, .3ds, .ply, .obj, .lwo, .x |
|---|---|
| Machine size | 704 × 1446 × 2420 mm |
| Weight | 550 kg |
| Operating temperature and humidity | 20-25°C, 60% |
| Power supply | AC 230 V, 50 Hz |
| Electrical consumption | 500 W |
Software selector
The software that runs it
Nauta+ and Fictor
Materials it runs
DWS name material classes for this machine rather than grades. We match the grade to your part when we quote.
Compare with
| DWS XPRO SL | DWS XPRO QL / QLHR | DWS XPRO Q / QHR | |
|---|---|---|---|
| Price | POA | POA | POA |
| Technology | Laser stereolithography (SLA) | Laser stereolithography (SLA) | Laser stereolithography (SLA) |
| Build volume | 300 × 300 × 500 mm | 300 × 300 × 500 mm | 300 × 300 × 300 mm |
| Layer thickness | 10-100 micron | 10-100 micron | 10-100 micron |
| Light source | Solid-state BlueEdge® | Solid-state BlueEdge® | Solid-state BlueEdge® |
| Machine size | 704 × 1446 × 2420 mm | 704 × 1446 × 2420 mm | 704 × 1446 × 2048 mm |
| Weight | 550 kg | 550 kg | 500 kg |
See the XPRO SL before you decide
Tell us what you make and we will arrange a demonstration. Or send us a part: we will tell you which printer suits it. We will print it for you if none is worth buying yet.
