Standard White resin
An ABS-like resin and our most cost-effective SLA material for large components. It offers excellent surface detail, accuracy and durability.
- Build volume
- 800 × 800 × 550 mm
- Heat deflection
- 52 °C
Full specification →
Material · Industrial SLA

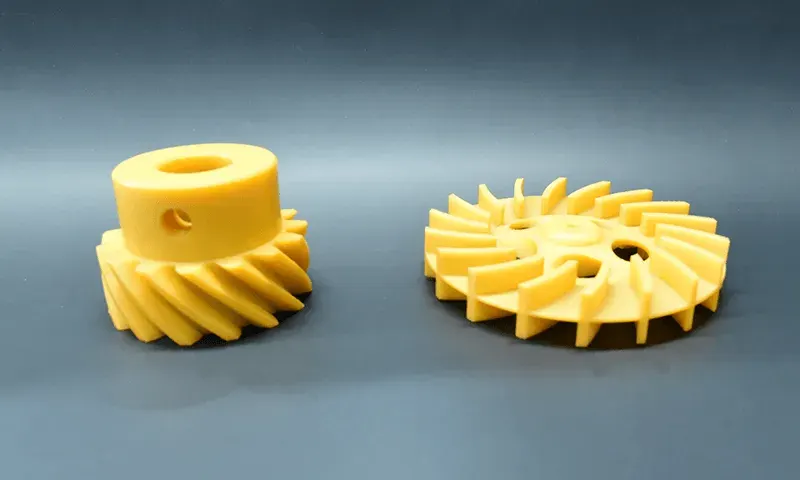

High Temp 220D resin
Precision SLA parts that hold their shape up to 227 °C. An industrial-grade resin for functional prototypes and production-style components where conventional resins would soften or creep.
227 °C
heat deflection at 0.455 MPa
4,321 MPa
flexural modulus
Shore D 90
hardness
Built for heat, stiffness and stability
High temperature resins stay stiff and dimensionally stable under heat, where standard resins soften, creep or distort. They are used for functional prototypes, tooling-style components, jigs, fixtures, airflow parts and test articles that must hold tight tolerances during thermal or mechanical testing.
Performance depends on post-processing: thorough cleaning, a full UV cure and a controlled thermal post-cure bring out the highest heat resistance. The trade-off is that it is more rigid and less impact-tolerant than a tough resin. It is therefore the choice when heat, stiffness and accuracy come first.
At a glance
- Build volume
- 600 × 600 × 400 mm
- Min feature size
- 0.5 mm
- Min wall
- 0.8 mm, at a 1:6 ratio
- Build layer
- 100 microns
- Lead time
- From 7 days
What it is used for
- 01
Wind tunnel models
Stiff, accurate test articles that hold shape.
- 02
Impellers
Airflow parts that must stay true when warm.
- 03
Motors and housings
Enclosures around heat sources.
- 04
Rapid tooling
Tooling-style components and fixtures.
- 05
Electrical casings
Rigid casings with good detail.
- 06
Automotive housings
Under-bonnet style prototypes.
Material properties
From the High Temp 220D datasheet. Heat figures assume full post-processing.
- Hardness (ASTM D2240)
- Shore D 90
- Flexural modulus (ASTM D790)
- 4,321 MPa
- Flexural strength (ASTM D790)
- 116 MPa
- Impact strength (ASTM D256)
- 16 J/m
- Elongation at break
- 12–20%
- Heat deflection at 0.455 MPa
- 227 °C
- Heat deflection at 1.82 MPa
- 170 °C
- Density
- 1.16 g/cm³ at 25 °C
When size and cost matter more
Standard White prints larger, up to 800 × 800 × 550 mm, at our lowest SLA price.
