HeyGears resins

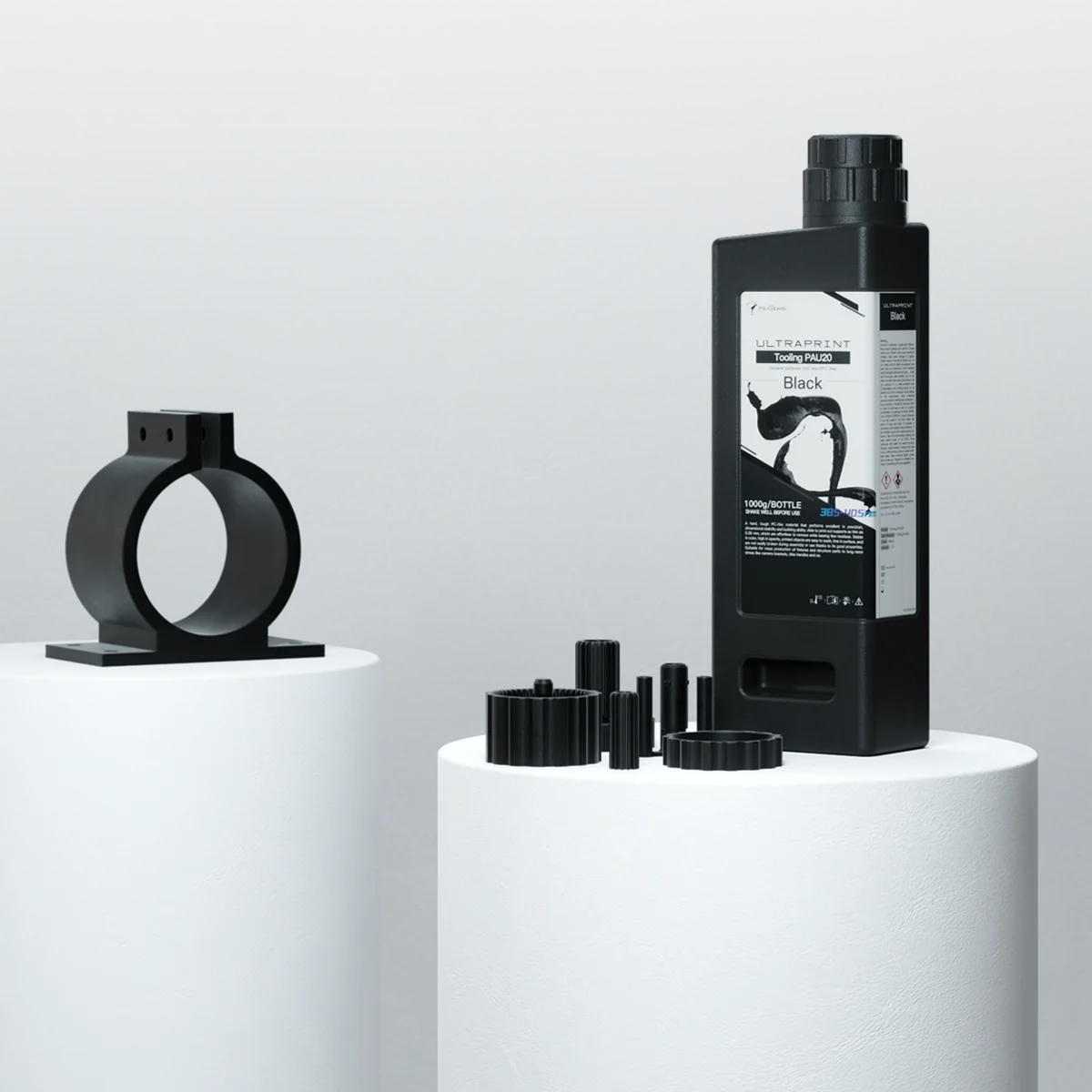

HeyGears UltraPrint PAU20 Structural Resin
PC-like tooling and engineering resin for functional tooling, fixtures and demanding engineering parts.
More from HeyGearsProperties
Figures as HeyGears publish them, checked on heygears.com in October 2026. They are HeyGears Lab averages with a deviation of ±10%. Rows marked (data sheet) come from the HeyGears technical data sheet.
- Colour
- Black
- Bottle
- 1000 g
- Flexural strength
- 109 MPa
| Colour | Black |
|---|---|
| Bottle | 1000 g |
| Flexural strength | 109 MPa |
| Flexural modulus | 2300 MPa |
| Tensile strength | 69 MPa (data sheet) |
| Tensile modulus | 2290 MPa (data sheet) |
| Elongation at break | 23% |
| Impact strength, notched | 35 J/m |
|---|---|
| Work of fracture | 5400 J/m² |
| Heat deflection temperature | 60°C (140°F) |
| Hardness | 84 Shore D |
| Viscosity | 3400 mPa·s |
| Water sorption | 1.9% |
Questions we get asked
Pricing and availability
Prices shown are UK benchmarks and are confirmed on enquiry. Tell us the configuration you need. We will quote it, including resin, post-processing and delivery.
Buying in the UK
UK company, UK demonstrations, UK-based buying advice — backed by HeyGears’ global technical support and knowledge base. Speak to us before you buy and arrange a demonstration with your own parts.
