UnionTech · SLA for tyre mould production

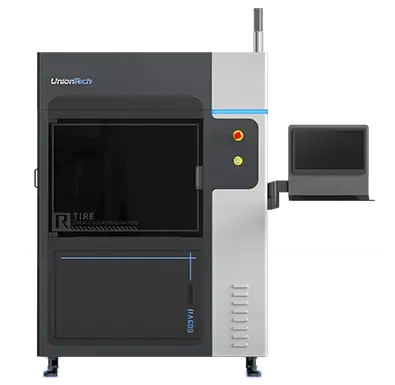

UnionTech RA600
An SLA printer built for tyre mould manufacturing. It reproduces complex tread patterns at ±0.1 mm, so tyre master moulds come off the printer with faster lead times.
More from UnionTech- Build volume, mm
- 600 × 600 × 400
- Accuracy under 100 mm, mm
- ±0.1
- Scanning speed, m/s
- 8-15
Priced on configuration. We quote on the build size, laser and materials your work needs.
- Sold, installed and supported in the UK by Europac 3D
Why the RA600
For tyre master moulds and tyre mould prototypes.
Runs unattended, around the clock
Software generates the print paths automatically, so the RA600 runs 24/7 without manual programming.
Fine tread detail
It holds ±0.1 mm on fine tread patterns and complex geometry, which leaves room for more intricate mould designs.
Fewer steps
Moulds print as one piece without separate steel sheets, which UnionTech say shortens production cycles and cuts cost.
Print on demand
Printing moulds as they are needed means no stock of mould patterns to store.
Less chemical use
UnionTech say the digital route uses fewer chemicals than conventional mould prototyping.
What it makes
UnionTech show tyre mould samples printed on the RA600.
Tyre master moulds
Master moulds with complex tread patterns, printed directly from the design data.
Tyre mould prototypes
Prototype moulds for new tread designs, made without waiting for machining.
Specification
Specifications from uniontech3d.com. UnionTech ask buyers to confirm the current offering, so check any figure you plan around with us.
- Build volume
- 600 × 600 × 400 mm
- Accuracy under 100 mm
- ±0.1 mm
- Operation
- Unattended, 24/7
| Build volume | 600 × 600 × 400 mm |
|---|---|
| Accuracy | Under 100 mm: ±0.1 mm. 100 mm and over: ±0.1% of the dimension |
| Layer thickness | 0.05-0.25 mm |
| Laser | 355 nm, solid-state frequency-tripled Nd:YVO₄ |
| Beam focus | Dynamic and variable |
| Beam size | 0.12-0.8 mm |
| Scanning speed | 8-15 m/s |
| Resin vat | Replaceable or fixed |
| Control software | UnionTech RSCON |
| Operating system | Windows 10 |
| Data interface | .stl |
|---|---|
| Network | Ethernet, IEEE 802.3, TCP/IP |
| Electrical supply | 200-240 VAC, 50/60 Hz, single phase |
| Rated power | 2.6 kVA |
| Systems control | Closed-loop |
| Room temperature | 22-26 °C, changing by no more than 1 °C an hour |
| Relative humidity | Below 40% |
| Machine size | 1375 × 1295 × 1930 mm |
| Machine weight | 850 kg |
Before it arrives
What the RA600 needs from your site, from UnionTech's published data.
Floor space and weight
The machine measures 1375 × 1295 × 1930 mm and weighs 850 kg. Check the route in and the floor loading before delivery.
Power
It needs 200-240 VAC, 50/60 Hz, single phase, rated at 2.6 kVA.
The room
UnionTech specify a room at 22-26 °C, changing by no more than 1 °C an hour, with relative humidity below 40%.
Data and network
It takes .stl files over Ethernet and runs on Windows 10.
Software selector
The software that runs it
Included with the printer
UnionTech RSCON
UnionTech's control software. It runs the printer under closed-loop control and takes .stl files from your preparation software. UnionTech say their software prepares the data and generates the print paths, so the RA600 needs no manual programming.
Bought, installed and supported in the UK
Europac 3D supplies UnionTech printers in the UK.
Advice before you buy
Tell us what you make. We will tell you whether the RA600 suits it, then quote on the configuration and materials your work needs.
Installation
We install the printer on your site.
Training
We train your operators to run the printer and its software.
Service and support
Support after installation comes from Europac 3D in the UK, backed by UnionTech.
RA600 questions
What accuracy can the RA600 achieve?
Up to ±0.1 mm on parts under 100 mm and ±0.1% of the dimension on larger parts. That is enough for fine tread detail and complex geometry.
Can it print complex, intricate tread patterns?
Yes. UnionTech built the RA600 for tyre master moulds and say it excels at highly detailed, complex tread patterns.
How much faster is it than conventional mould making?
UnionTech report that LiChong Mould improved efficiency by over 80% after adopting the RA600 for tyre moulds. Your result depends on your moulds and your current process.
Will it change our existing workflow?
UnionTech designed it to fit existing digital design and manufacturing workflows. It takes .stl files. Their software handles data preparation and print paths.
Who installs and supports the RA600 in the UK?
Europac 3D. We supply, install and support UnionTech printers in the UK, as well as training your operators.
Compare with
| UnionTech RA600 | UnionTech RA900 | UnionTech D600 | |
|---|---|---|---|
| Price | POA | POA | POA |
| Build volume | 600 × 600 × 400 mm | 950 × 550 × 400 mm | 600 × 600 × 100 mm |
| Accuracy, parts under 100 mm | ±0.1 mm | ±0.1 mm | ±0.1 mm |
| Layer thickness | 0.05-0.25 mm | 0.05-0.25 mm | 0.05-0.25 mm |
| Lasers | 355 nm | 2 × 355 nm | 355 nm |
| Scanning speed | 8-15 m/s | 6-18 m/s | 8-15 m/s |
| Machine weight | 850 kg | 1100 kg | 850 kg |
See the RA600 before you decide
Tell us what you make and we will arrange a demonstration. Or send us a part: we will tell you which printer suits it. We will print it for you if none is worth buying yet.
