Standard White resin
An ABS-like resin and our most cost-effective SLA material for large components. It offers excellent surface detail, accuracy and durability.
- Build volume
- 800 × 800 × 550 mm
- Heat deflection
- 52 °C
Full specification →
3D printing service · Industrial SLA
Large format SLA, for industrial parts
Precision, scale and performance. Our UnionTech stereolithography fleet produces functional prototypes, tooling and end-use parts with outstanding surface finish, in single pieces up to 800 mm across.
800 mm
largest single part
100 microns
build layer
From 7 days
resin parts back
What SLA is
Stereolithography is a form of additive manufacturing that uses vat photopolymerisation. A UV laser cures liquid polymer resin layer by layer, exactly where it is needed.
Unlike FDM, which melts filament, or SLS, which sinters powder, the liquid resin solidifies very precisely. The result is smooth surfaces, tight tolerances and clean geometry straight off the build platform.
At a glance
- Build volume
- 800 × 800 × 550 mm
- Min feature size
- 0.5 mm
- Min wall
- 0.8 mm, at a 1:6 ratio
- Build layer
- 100 microns
- Lead time
- From 7 days
Why industrial SLA
- 01
Surface finish and detail
Ultra-smooth surfaces and fine features for visual models or precision prototypes, with little post-processing.
- 02
Dimensional accuracy
Tight tolerances and stable, repeatable parts for functional testing or fit checks.
- 03
Complex geometry
Intricate internal features, thin walls and forms other processes struggle with.
- 04
Large single pieces
Big components in one piece, with fewer joins and consistent quality across the build.

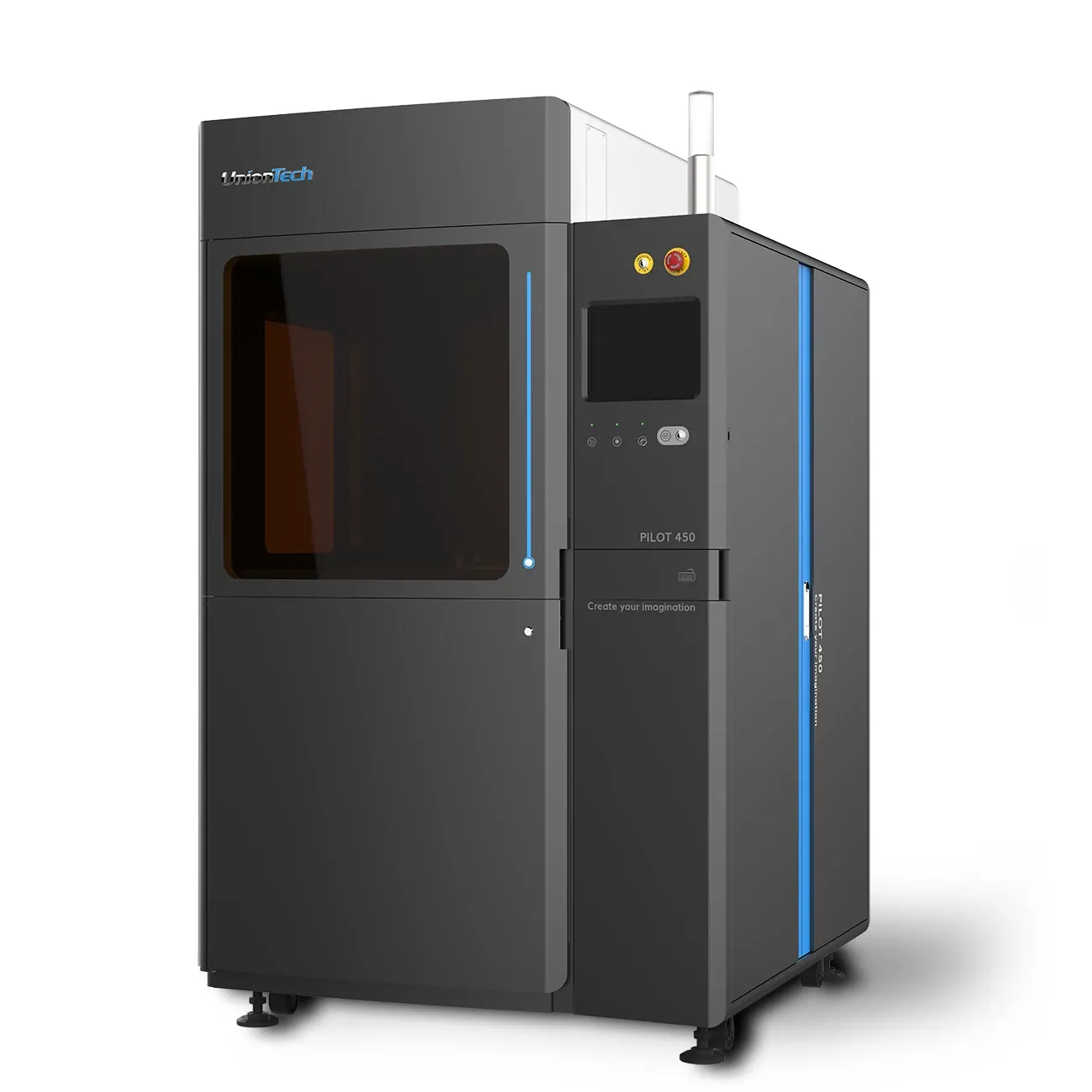

Why we run UnionTech
UnionTech industrial SLA machines are our machine of choice, for their vertical wall consistency and accuracy. Large-volume UnionTech machines print big, seamless parts with high accuracy, so full-scale prototypes, jigs, tooling and foundry moulds need fewer joins.
They give an excellent surface finish and crisp detail across large areas, so parts need less sanding. They are cost-efficient at scale, which means a better price per part than many large format alternatives.
Aerospace and automotive
Industrial equipment and tooling
Product design and consumer goods
Health and medical prototyping
Marketing and exhibition models

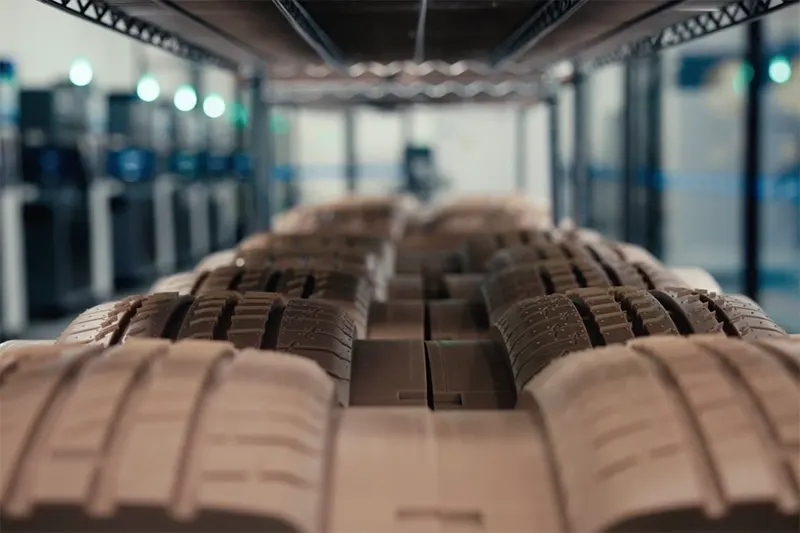

Mould making and art foundry models
Printed here in resin
Two resins
Standard White for size and cost, High Temp 220D for heat. Both print on our UnionTech fleet.
High Temp 220D resin
For components that need dimensional stability and mechanical performance at elevated temperatures. Parts reach an HDT of up to 227 °C when correctly post-processed.
- Build volume
- 600 × 600 × 400 mm
- Heat deflection
- 227 °C at 0.455 MPa
Full specification →
Send us the part
Upload the file to our instant quote, choose the material and the quantity and the price comes back on screen. Order it there and then.
- A price straight awayNo waiting for a reply: the quote is worked out from the file itself.
- We check the fileBefore anything is printed, so a bad mesh never reaches a machine.
- No file yet?Ring or email with a photograph or a description and an engineer will help.
- Call the team0330 229 0175Monday to Friday, 8.30am to 5pm
- Emailsales@europac3d.comAnswered the same working day
- Files we take
- STL, STEP, IGES, OBJ, 3MF
- Largest part
- 800 × 800 × 550 mm
- Nylon on MJF
- From 2 days
- Resin on SLA
- From 7 days
Get an instant quote
- Upload your 3D file
- Choose the material and how many
- See the price and order online
Opens our quoting tool in a new tab. Want advice on the material or process first? Contact us or ring 0330 229 0175.
