PA12 nylon
Strong, durable and accurate. Isotropic properties in X, Y and Z. The right choice when many thousands of parts are needed.
- Tensile strength
- 48 MPa
- Elongation at break
- 20%
Full specification →
Material · HP Multi Jet Fusion

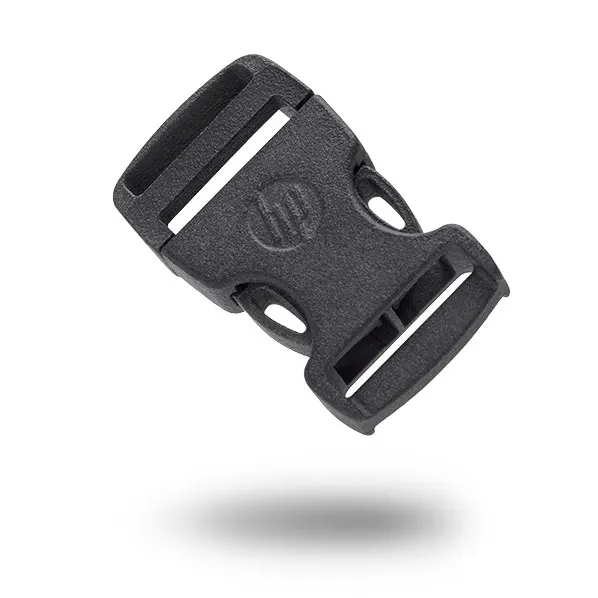

PA11 nylon
Strong, flexible production parts with an excellent surface finish. High impact resistance and elongation at break make it the choice for snap fits, prostheses, insoles, sports goods or living hinges.
50%
elongation at break
50 MPa
tensile strength
Biocompatible
for orthotic and medical devices

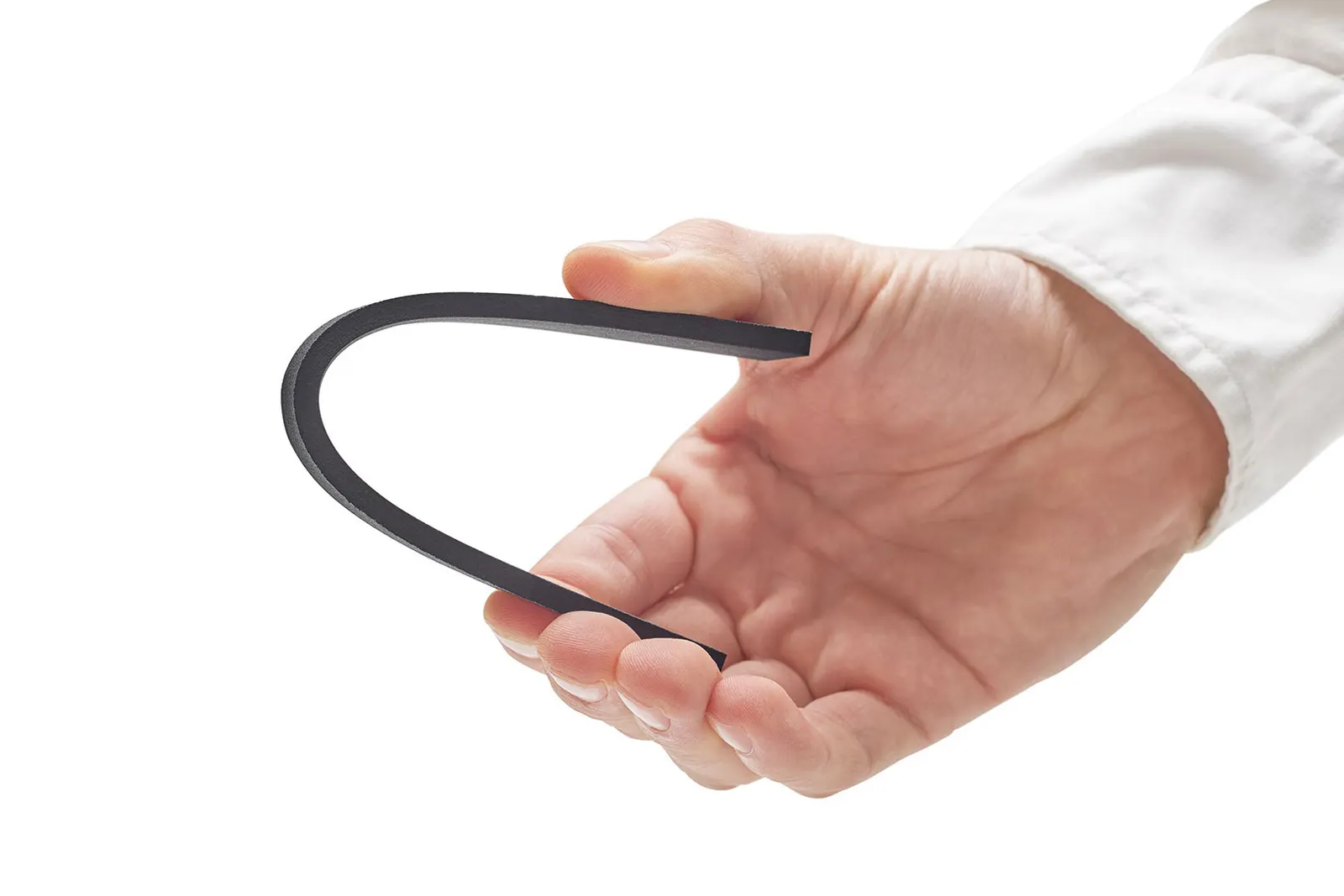

It bends and comes back
PA11 is tensile, durable and highly impact resistant, with a high elongation at break. That is what makes it right for parts that flex in use rather than parts that only have to be stiff.
Like PA12 it prints thousands of parts in one twelve hour build with no support structures. It has isotropic properties in X, Y and Z. Its temperature and chemical resistance are excellent.
At a glance
- Build volume
- 380 × 380 × 284 mm
- Min feature size
- 0.5 mm
- Build layer
- 80 microns
- Min wall
- 0.5 mm
- Lead time
- From 2 days
Why PA11
- 01
Strong and flexible
Takes repeated flexing without cracking.
- 02
Biocompatible
Suited to orthotics, prostheses and other medical devices.
- 03
Large production runs
Many thousands of parts in a single build.
- 04
Watertight
Dense, sealed parts straight from the 3D printer.
- 05
Temperature resistant
Excellent temperature and chemical resistance.
- 06
Low cost
Production pricing once the build is full.
Material properties
From HP’s datasheet for HP 3D High Reusability PA11.
- Tensile strength
- 50 MPa
- Elongation at break
- 50%
- Flexural modulus
- 1,600 MPa
- Flexural strength
- 60 MPa
- Heat deflection
- 183 °C at 0.45 MPa

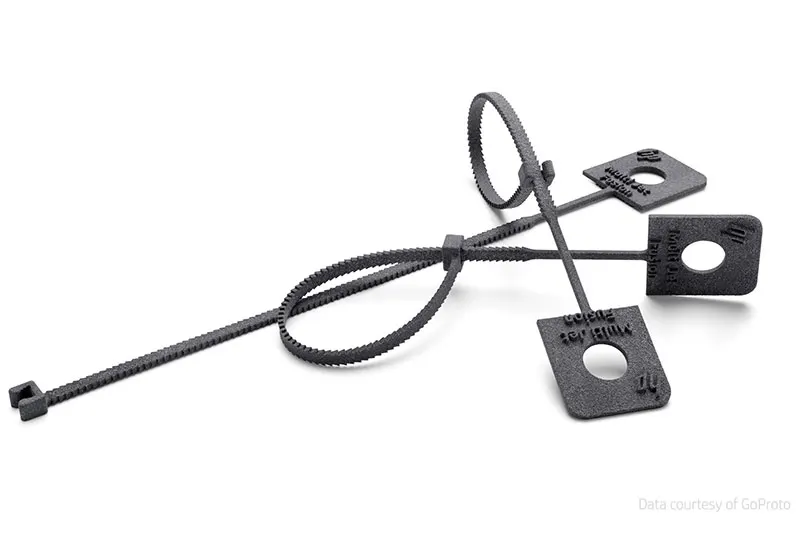

PA11 at work
The other nylon
PA12 is stiffer and the lower cost per part. Both print on the same machines.
Send us the part
Upload the file to our instant quote, choose the material and the quantity and the price comes back on screen. Order it there and then.
- A price straight awayNo waiting for a reply: the quote is worked out from the file itself.
- We check the fileBefore anything is printed, so a bad mesh never reaches a machine.
- No file yet?Ring or email with a photograph or a description and an engineer will help.
- Call the team0330 229 0175Monday to Friday, 8.30am to 5pm
- Emailsales@europac3d.comAnswered the same working day
- Files we take
- STL, STEP, IGES, OBJ, 3MF
- Largest part
- 800 × 800 × 550 mm
- Nylon on MJF
- From 2 days
- Resin on SLA
- From 7 days
Get an instant quote
- Upload your 3D file
- Choose the material and how many
- See the price and order online
Opens our quoting tool in a new tab. Want advice on the material or process first? Contact us or ring 0330 229 0175.
