UnionTech · Large-format production SLA

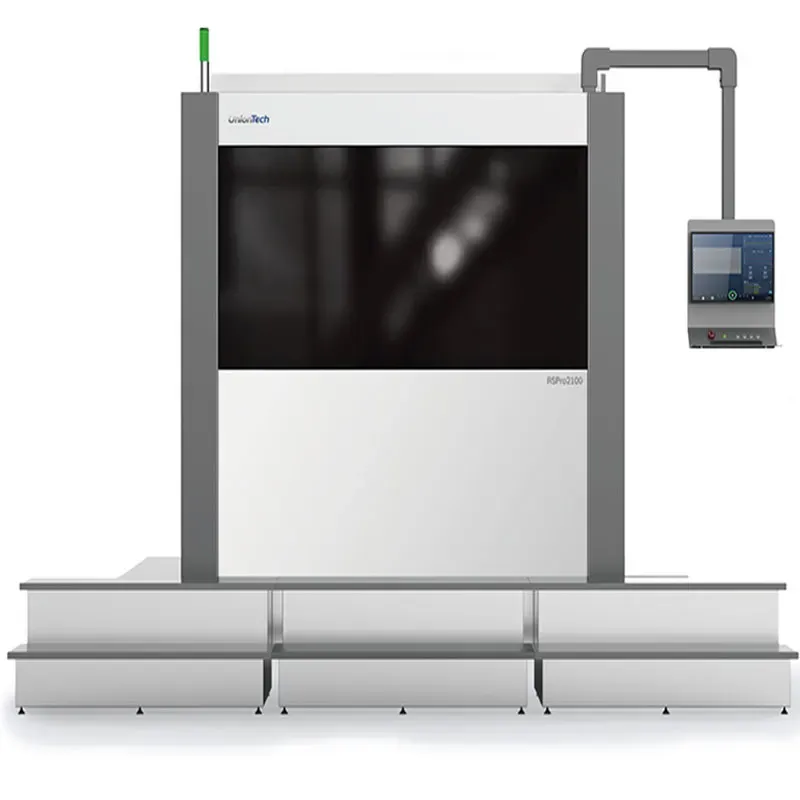

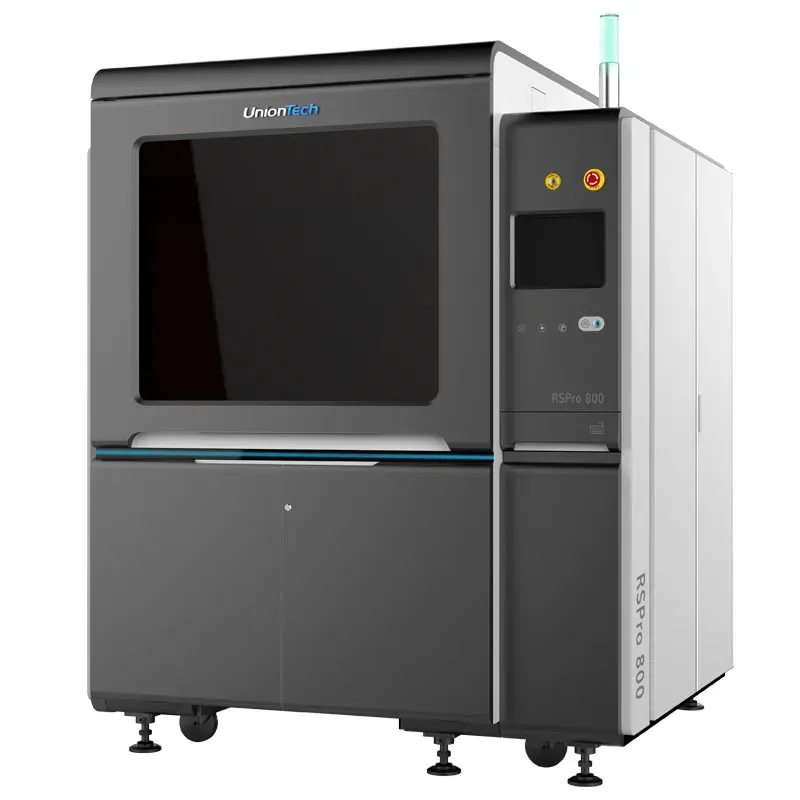

UnionTech RSPro Series SLA
Large-format industrial SLA from 600 mm to 2.1 m, with up to four lasers, for production parts and full-size prototypes. Open materials and closed-loop control throughout.
More from UnionTech- Max build envelope, mm (RSPro 2100)
- 2100 × 700 × 800
- Lasers (RSPro 2100)
- Up to 3
- Min layer thickness, mm (RSPro 600)
- 0.05
Priced on configuration. We quote on the build size, laser and materials your work needs.
- Sold, installed and supported in the UK by Europac 3D
Why the RSPro

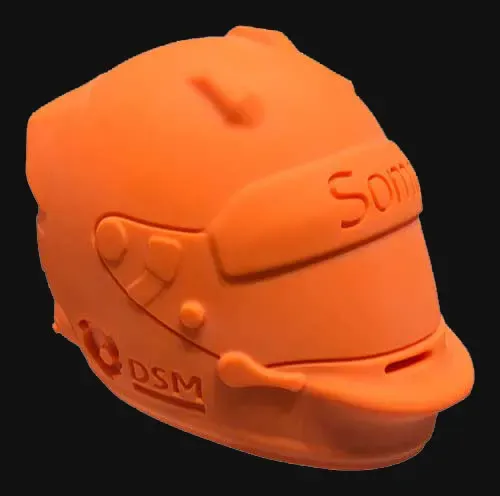

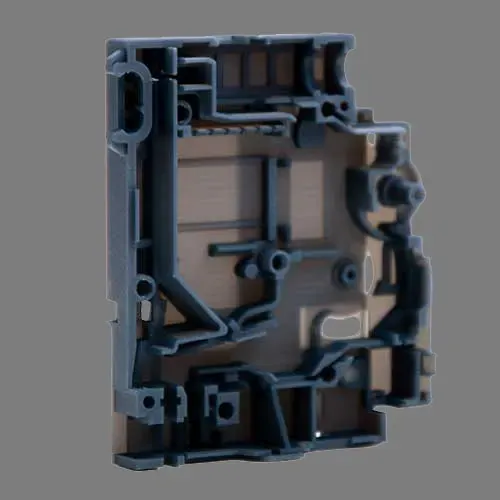

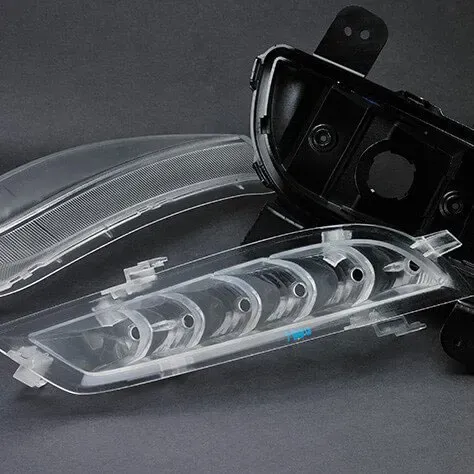

Used for automotive parts, aerospace parts, investment casting, industrial parts, prototyping.
Up to four lasers
The RSPro 800 X runs four lasers in sync, which UnionTech say is up to 60% faster than their previous system.
Builds up to 2100 mm long

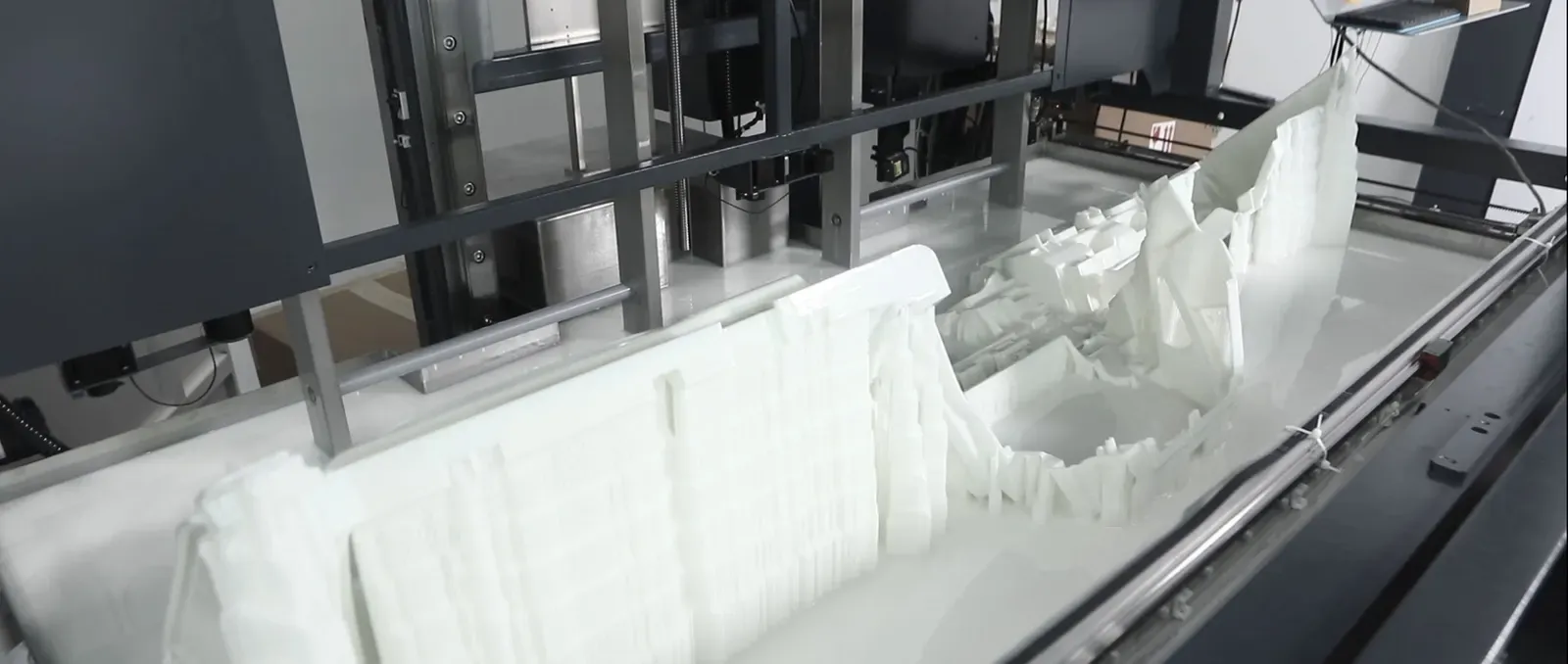

Six sizes from 600 × 600 × 500 mm to 2100 × 700 × 800 mm, so bumpers, dashboards and door panels print in one piece.
Granite recoater frame
A granite recoater frame keeps large builds dimensionally stable, with minimal deformation.
Closed-loop control
Platform movement, laser power, resin level, temperature and vacuum are all under closed-loop control for repeatable parts.
Open material platform
Run Somos grades or other resins chosen for the application, including high-strength, heat-resistant and transparent materials.
Remote fleet monitoring
The RSPro 800 X adds UT-ONE, for monitoring and batch management of several printers.
Specification
6 models, side by side.

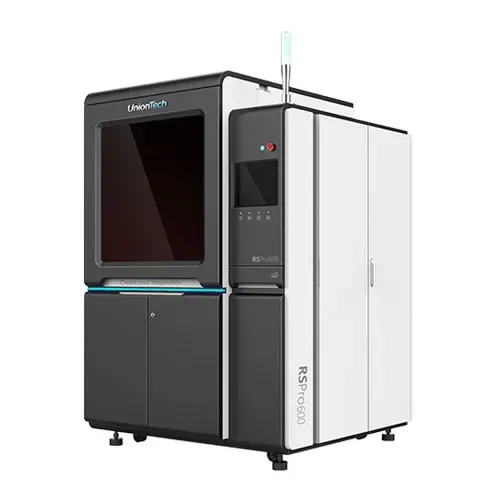

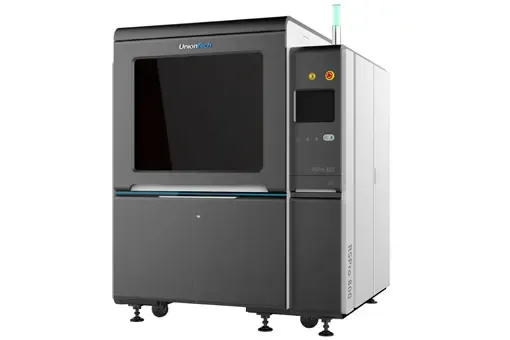

| RSPro 600 2.0 | RSPro 800 2.0 | RSPro 800 X | RSPro 1400 | RSPro 1800 | RSPro 2100 | |
|---|---|---|---|---|---|---|
| Build volume | 600 × 600 × 500 mm | 800 × 800 × 550 mm | 800 × 800 × 550 mm | 1400 × 700 × 500 mm | 1800 × 900 × 600 mm | 2100 × 700 × 800 mm |
| Accuracy | ±0.1 mm, ±0.1% | ±0.15 mm, ±0.15% | ±0.1 mm, ±0.1% | ±0.2 mm, ±0.2% | ±0.2 mm, ±0.2% | ±0.2 mm, ±0.2% |
| Layer thickness | 0.05-0.25 mm | 0.07-0.25 mm | 0.05-0.25 mm | 0.1-0.25 mm | 0.1-0.25 mm | 0.1-0.25 mm |
| Laser | 355 nm | 355 nm | 4 × 355 nm | 2 × 355 nm | 2 × 355 nm | 3 × 355 nm |
| Beam size | 0.12-0.2 mm | 0.12-0.85 mm | 0.12-0.9 mm | 0.12-0.85 mm | 0.12-0.85 mm | 0.1-0.85 mm |
| Scanning speed | 6-10 m/s | 6-12 m/s | 2.5-12.8 m/s | 6-10 m/s | 8-15 m/s | 8-15 m/s |
| Resin vat | Replaceable | Replaceable | 560 kg, replaceable | Fixed | Fixed | Fixed |
| Control software | RSCON | RSCON | RSCON | RSCON | RSCON | RSCON |
| Rated power | 3.0 kVA | 3.0 kVA | – | 3.9 kVA | 4.7 kVA | 5.4 kVA |
| Machine size | 1550 × 1600 × 2115 mm | 1750 × 1600 × 2110 mm | 2045 × 1965 × 2475 mm | 1885 × 1835 × 2100 mm | 2305 × 1630 × 2465 mm | 2630 × 1945 × 2765 mm |
| Machine weight | 1490 kg | 1440 kg | 1693 kg | 1907 kg | 2080 kg | 2520 kg |
Specifications from uniontech3d.com.
Software selector
The software that runs it
Included with every printer
UnionTech RSCON
Closed-loop control of the laser, platform, resin level and temperature on every UnionTech SLA machine.

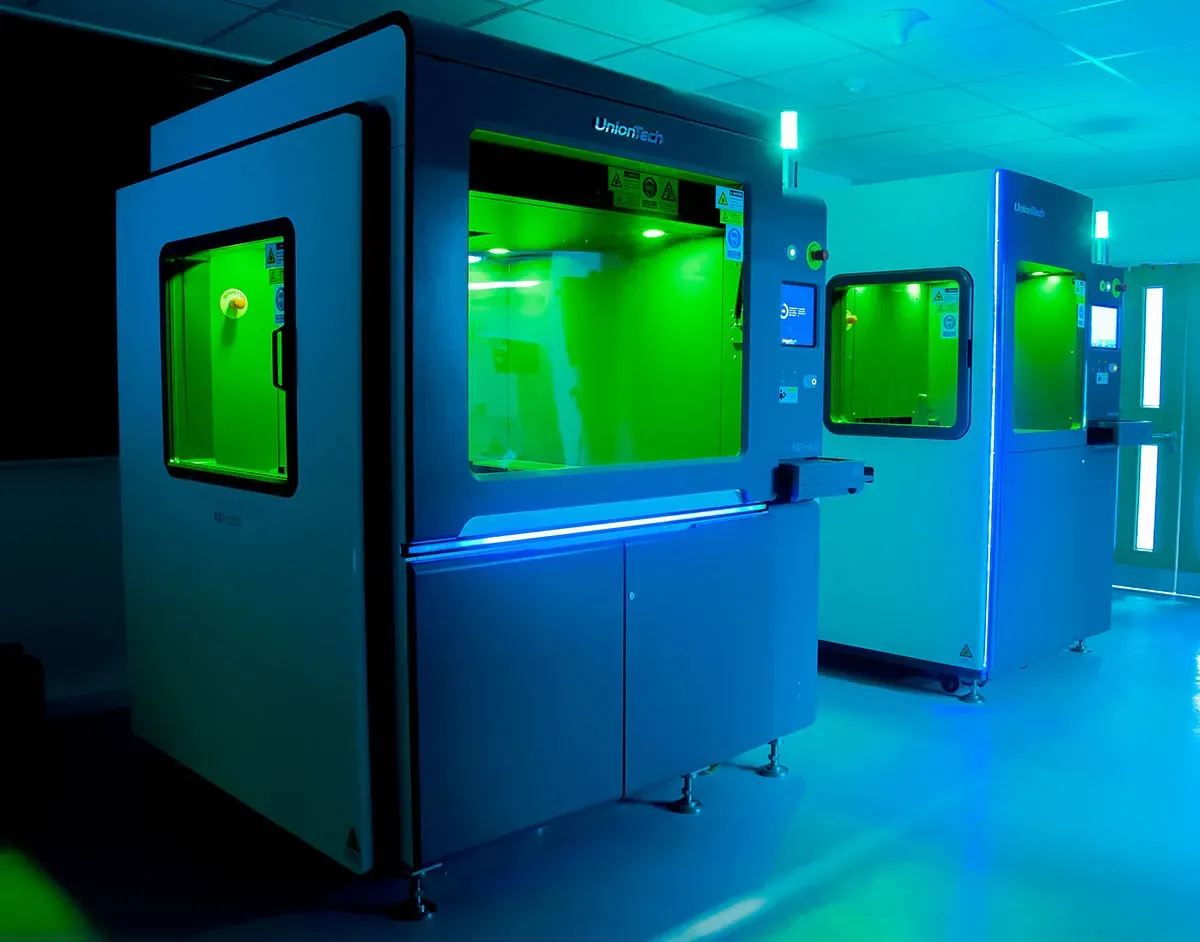

UnionTech printers at work
Compare with
| UnionTech RSPro Series SLA | UnionTech Pilot Series SLA | UnionTech RA600 | |
|---|---|---|---|
| Price | POA | POA | POA |
| Build volume | 600 × 600 × 500 mm to 2100 × 700 × 800 mm | 250 × 250 × 250 mm / 450 × 450 × 400 mm | 600 × 600 × 400 mm |
| Layer thickness | 0.05-0.25 mm to 0.1-0.25 mm | 0.05-0.25 mm | 0.05-0.25 mm |
| Light source | 355 nm, up to 4 × 355 nm | 355 nm | 355 nm |
| Machine size | 1550 × 1600 × 2115 mm to 2630 × 1945 × 2765 mm | 1090 × 1000 × 1850 mm / 1310 × 1290 × 2135 mm | 1375 × 1295 × 1930 mm |
| Weight | 1490 kg to 2520 kg | 726 kg / 945 kg | 850 kg |
See the RSPro before you decide
Tell us what you make and we will arrange a demonstration. Or send us a part: we will tell you which printer suits it. We will print it for you if none is worth buying yet.
