HeyGears resins

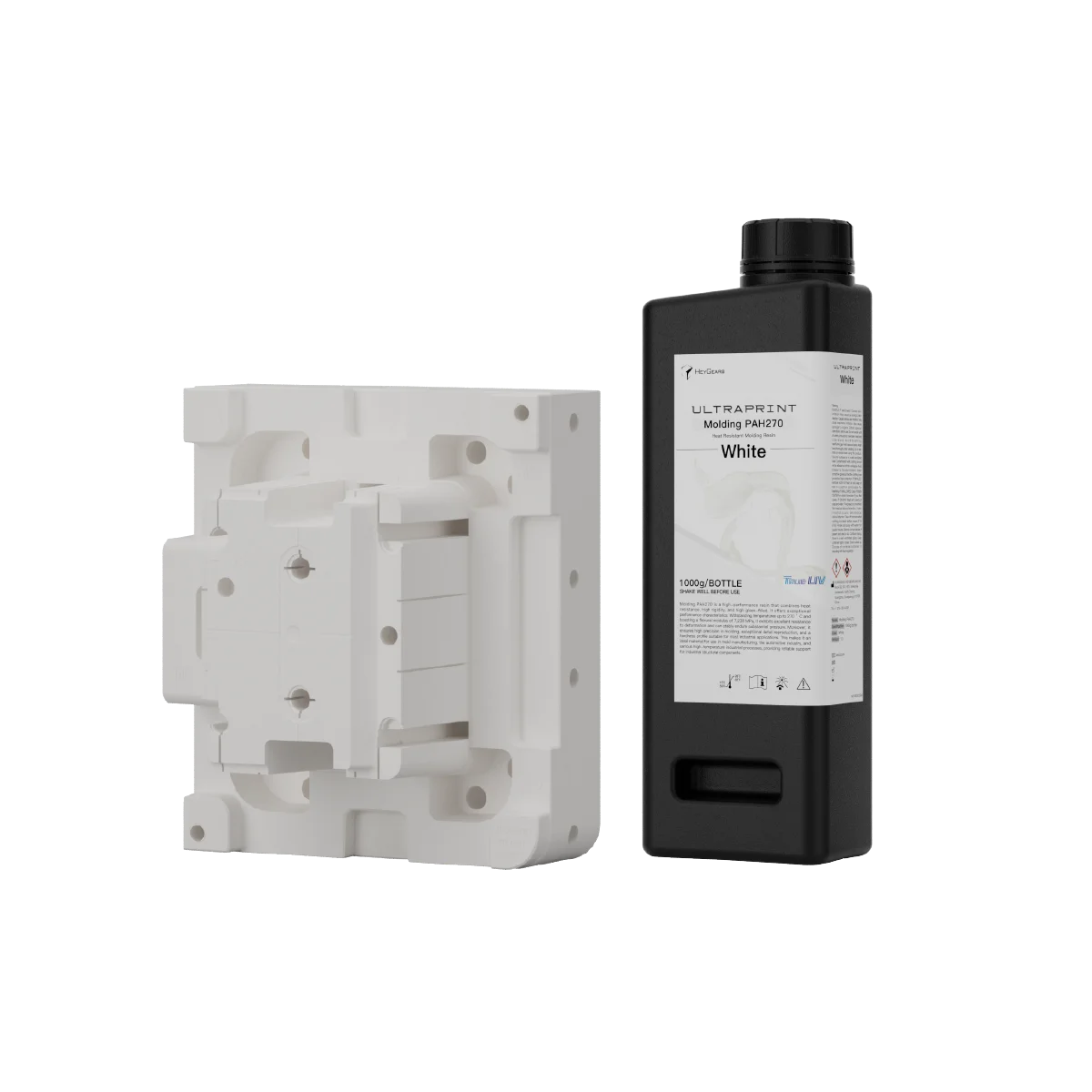

HeyGears UltraPrint PAH270 Injection-Molding Resin
Ultra-high-temperature, high-stiffness material for tooling, moulds, jigs, fixtures and demanding engineering work.
More from HeyGearsProperties
Figures as HeyGears publish them, checked on heygears.com in October 2026. They are HeyGears Lab averages with a deviation of ±10%.
- Colour
- White
- Bottles
- 1000 g, 2000 g
- Heat deflection temperature at 0.455 MPa
- 270°C (518°F)
| Colour | White |
|---|---|
| Bottles | 1000 g, 2000 g |
| Heat deflection temperature at 0.455 MPa | 270°C (518°F) |
| Flexural modulus | 7240 MPa |
| Flexural strength | 101 MPa |
| Tensile strength | 65 MPa |
| Elongation at break | 4% |
|---|---|
| Impact strength, notched | 13 J/m |
| Hardness | 94 Shore D |
| Viscosity | 1265 mPa·s |
| Water sorption | 0.9% |
| Density | 1.38 to 1.7 g/cm³ at 25°C |
Questions we get asked
Pricing and availability
Prices shown are UK benchmarks and are confirmed on enquiry. Tell us the configuration you need. We will quote it, including resin, post-processing and delivery.
Buying in the UK
UK company, UK demonstrations, UK-based buying advice — backed by HeyGears’ global technical support and knowledge base. Speak to us before you buy and arrange a demonstration with your own parts.
