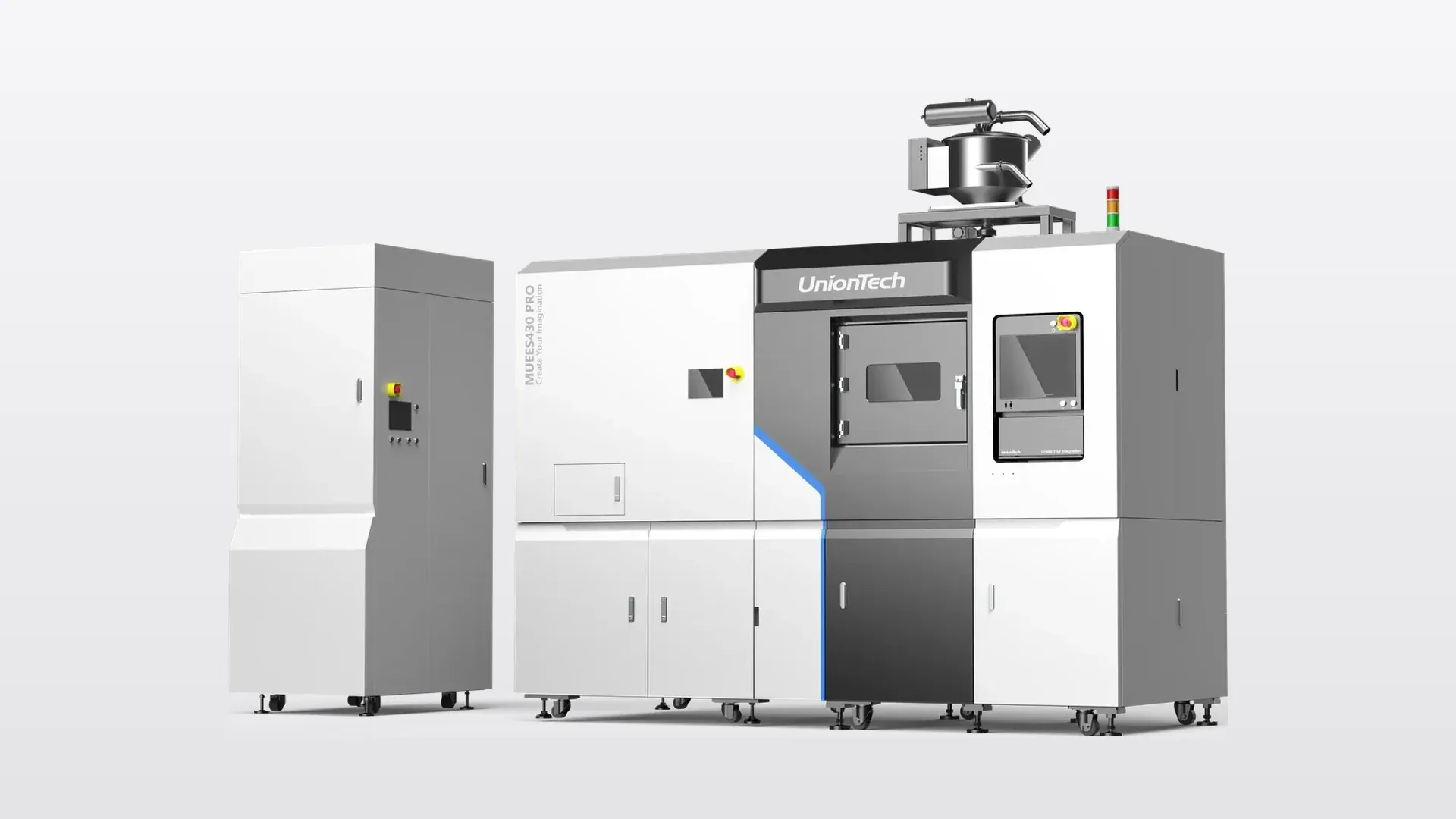

UnionTech MUEES430 PRO
Metal parts in batches, not one at a time.
Four 500 W fibre lasers share a 430 × 340 × 330 mm build, so a single run makes a full plate of production parts in steel, aluminium or titanium.
- 4 × 500 W
- Fibre lasers
- ±3 μm
- Z-axis accuracy
- Up to 6 m/s
- Scanning speed
UnionTech · SLM metal printer for batch production

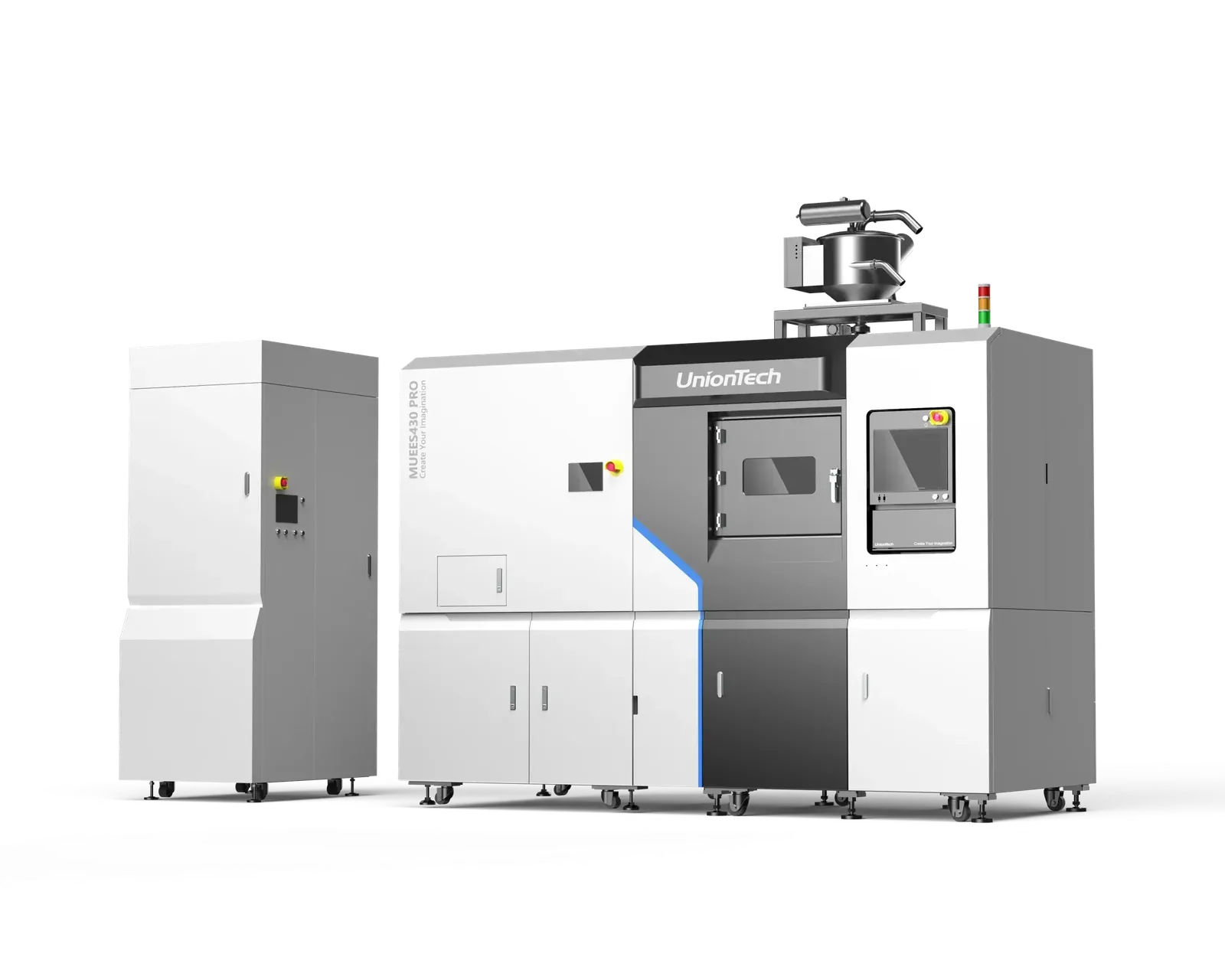

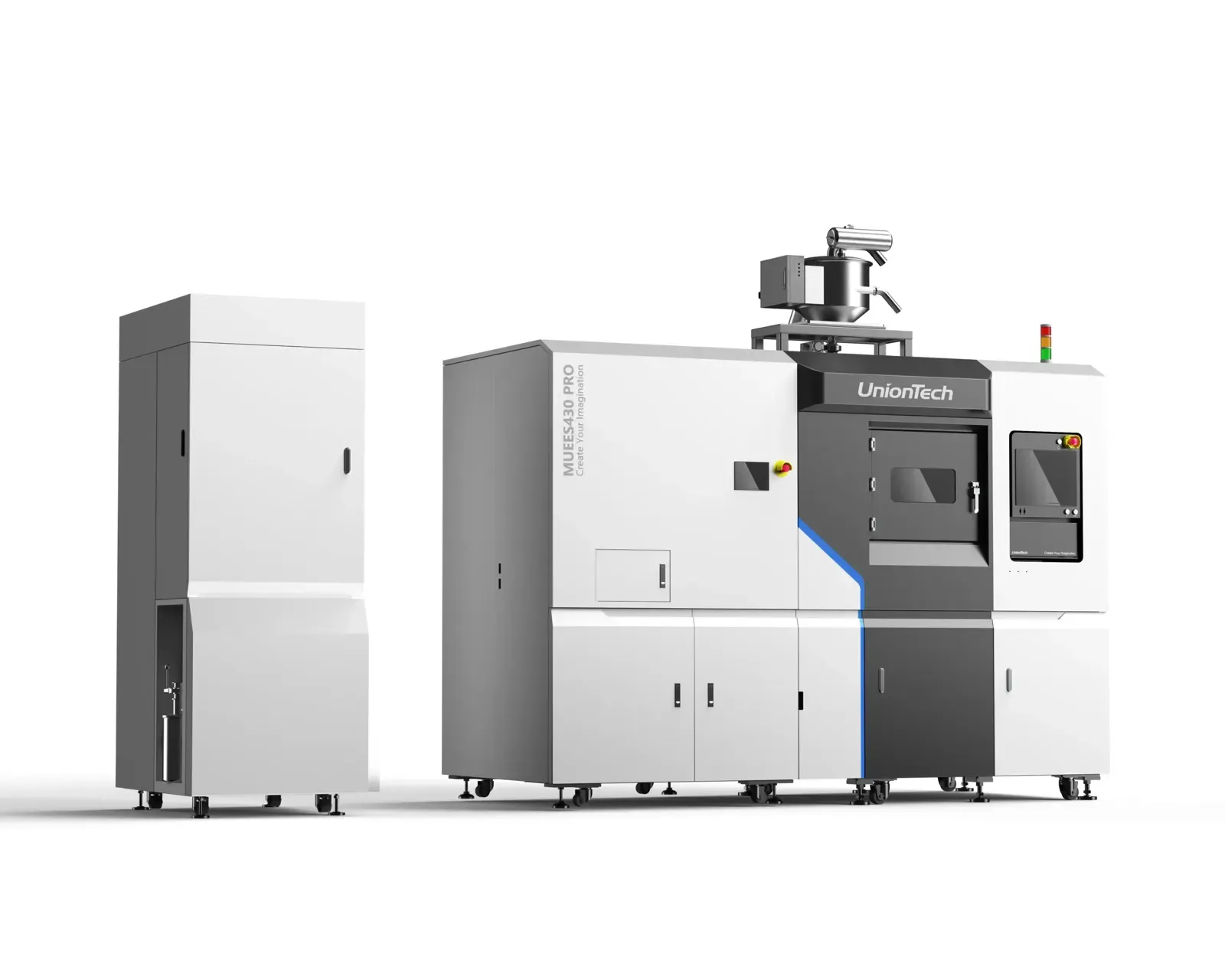

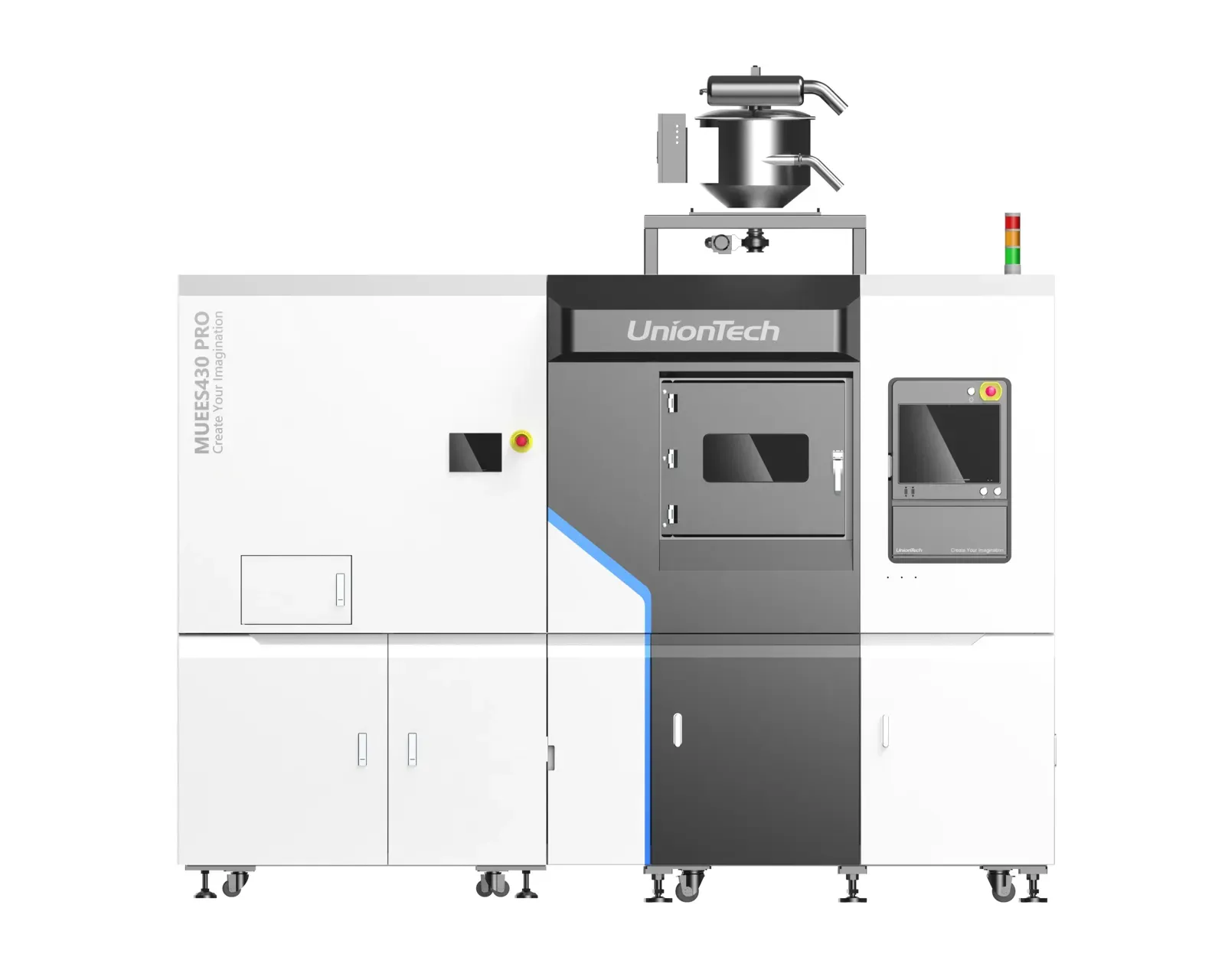

UnionTech MUEES430 PRO
UnionTech's industrial SLM metal printer for batch production. Four 500 W fibre lasers work a 430 × 340 × 330 mm build in stainless steel, aluminium and titanium alloys, with bidirectional recoating and monitoring that records every build.
More from UnionTech- Build volume, mm
- 430 × 340 × 330
- Yb fibre lasers
- 4 × 500 W
- Layer thickness, mm
- 0.02-0.1
Priced on configuration. We quote on the materials and set-up your work needs.
- Sold, installed and supported in the UK by Europac 3D
- Designed to ISO 13849 for continuous running
Why the MUEES430 PRO
For aerospace parts, mould making and batch production of metal parts.
Four lasers
Four 500 W Yb fibre lasers with high-speed galvo scanners scan at up to 6 m/s and jump at up to 18 m/s, for batch throughput.
Bidirectional recoating
Powder is spread in both directions, so less of each build is spent recoating. UnionTech say it is 20% more efficient than one-way spreading.
Even gas flow
A gas path designed with CFD keeps the flow smooth and uniform across the build chamber, for consistent parts.
Precise and traceable
Optical encoders hold the Z axis within ±3 μm for thin, even layers. Real-time monitoring watches the whole chamber, so every build is traceable.
Long filter life
UnionTech's own recirculation system uses a sintered-plate filter with a larger area, rated for over 40,000 hours. Fast purging reaches 4,000 ppm oxygen within 10 minutes.
Built for safe, continuous running
Designed to ISO 13849, with UPS power backup. Dual fixed seals stop leaks and, UnionTech say, triple the service interval of the rails.

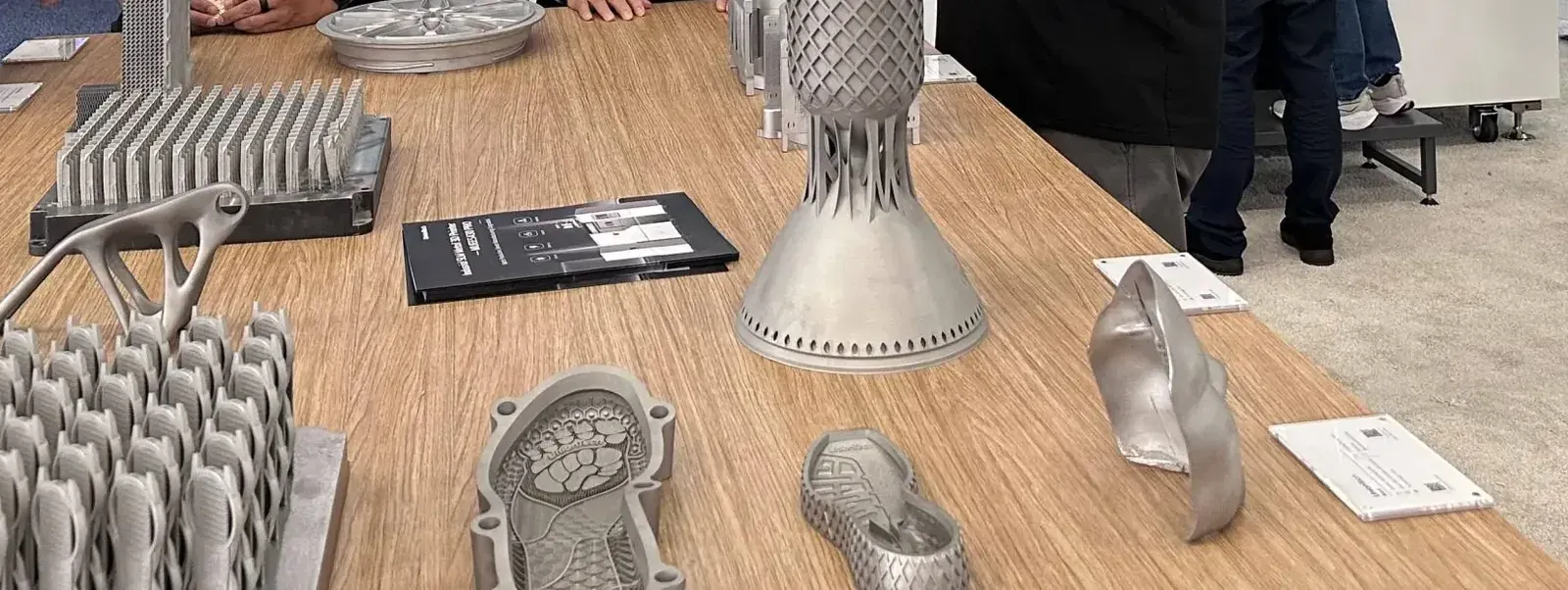

What one build delivers

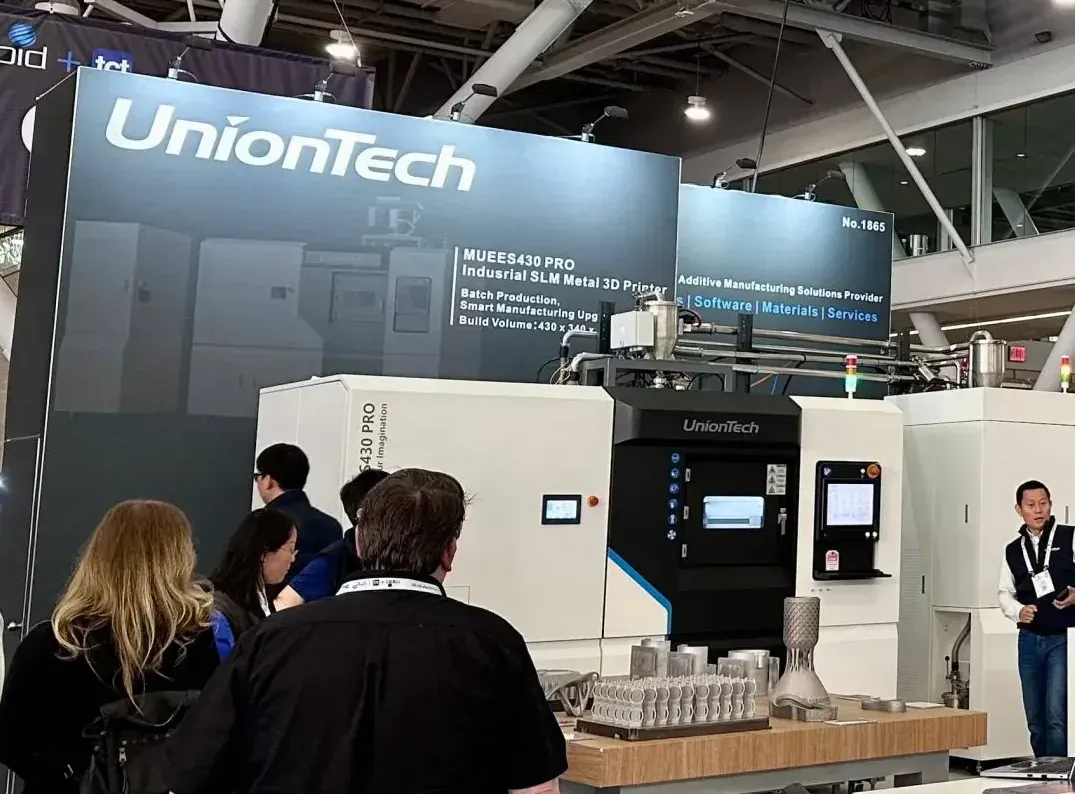

Batches UnionTech printed on the MUEES430 PRO for its launch at RAPID + TCT 2026.
- Watch cases
- 116316L stainless steel cases, 42 × 7 × 53 mm, in one 35.4-hour build.
- Tyre mould sipes
- 208Sipes 11 × 9 × 49 mm, printed in one piece with no welding.
- Wheel rim
- 19 hA 320 × 320 × 52 mm AlSi10Mg automotive rim.
- Heat exchanger
- 32%Lighter, with a TPMS lattice. 364 × 125 × 318 mm in AlSi10Mg.
What it makes
UnionTech built the MUEES430 PRO for batch production. These are the jobs it shows it doing.

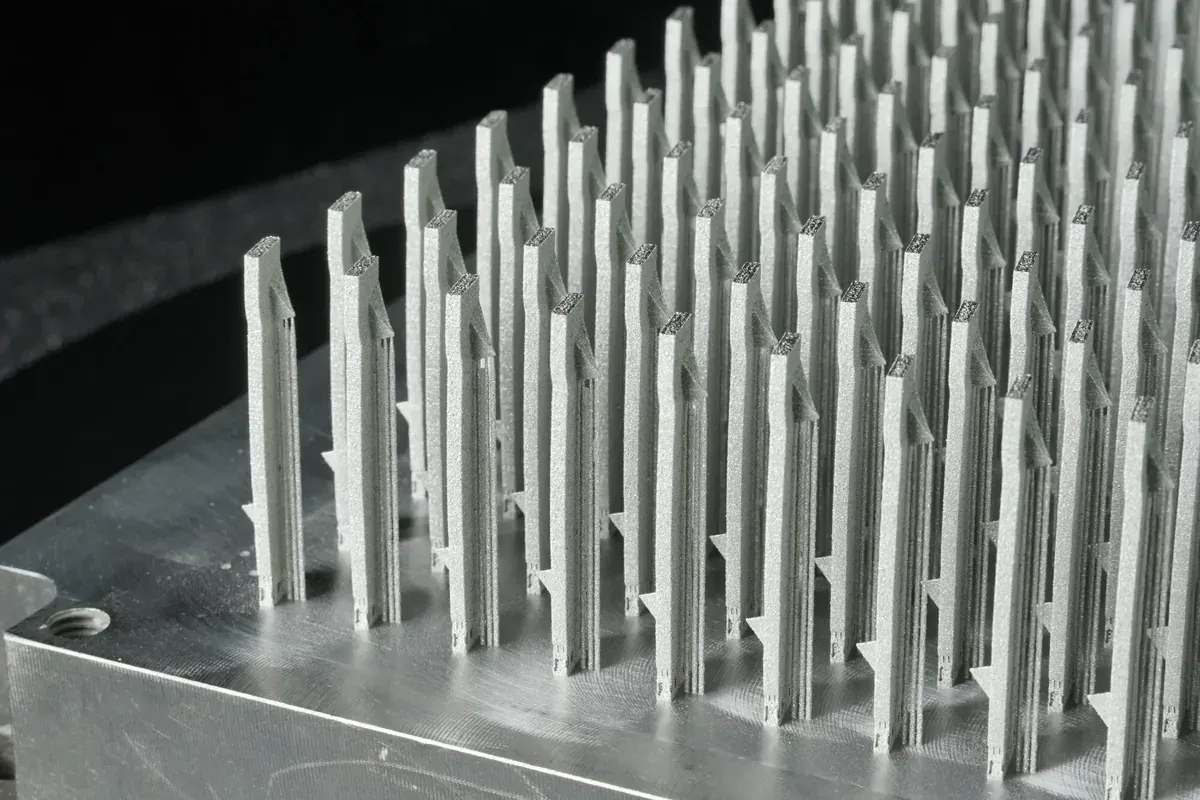

Tyre mould sipes
Sipes printed in volume, each in one piece with no welding. That gives them more strength and fatigue life, and suits short runs of many different designs.

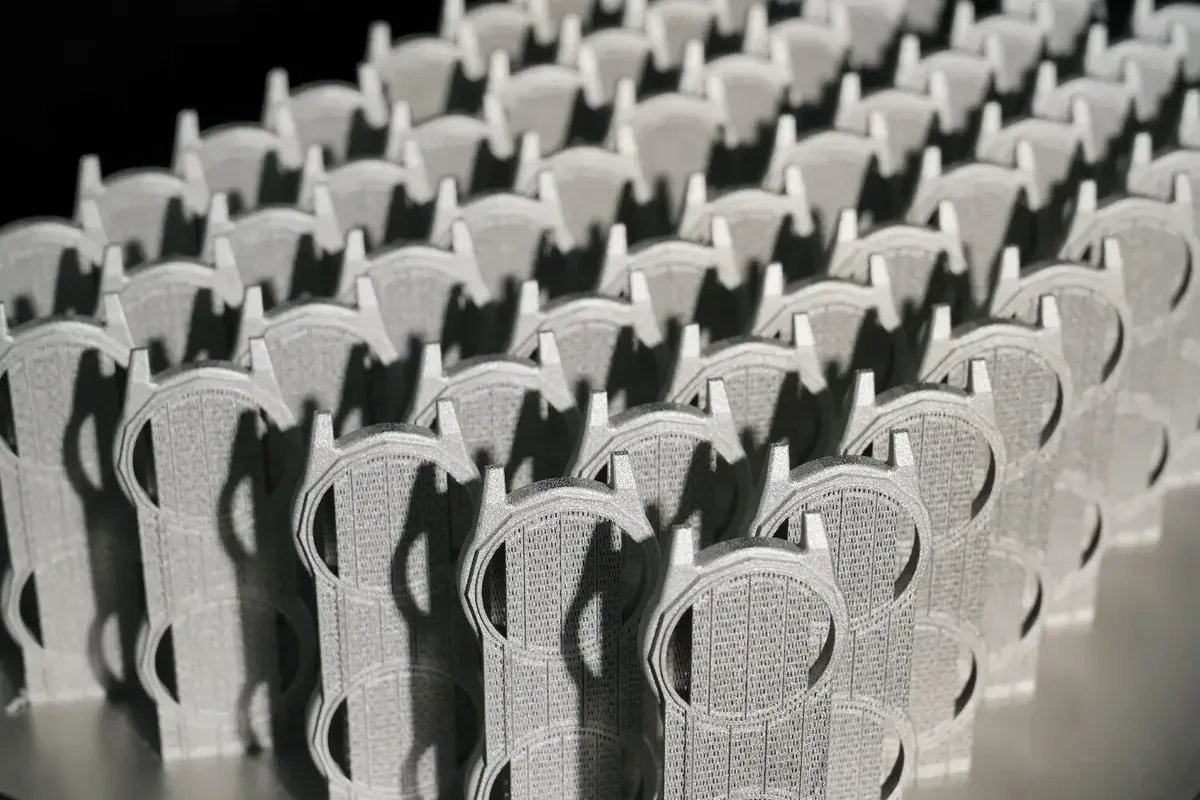

Watch cases
Hollow, integrated watch cases printed in batches in 316L stainless steel, with a fine finish.
Automotive lightweighting
Wheel rims and valve bodies with complex internal channels, printed in one piece to cut weight and shorten design validation.
Aerospace
Lattice heat exchangers and topology-optimised titanium (TC4) brackets, 20% to 50% lighter than the parts they replace.
Energy and industrial
A tail nozzle that replaces a welded assembly of more than 30 parts, and stainless steel heat sinks.
Mould making
Metal inserts and parts for mould manufacturing.
Specification
Specifications from uniontech3d.com. UnionTech ask buyers to confirm the current offering, so check any figure you plan around with us.
- Build volume
- 430 × 340 × 330 mm
- Lasers
- 4 × 500 W
- Z-axis accuracy
- ±3 μm
| Materials | Stainless steel, aluminium alloy, high-strength aluminium, titanium alloy |
|---|---|
| Build volume | 430 × 340 × 330 mm |
| Lasers | Yb fibre, 4 × 500 W |
| Accuracy | 100 mm and under: ±0.1 mm. Over 100 mm: ±0.1% of the length |
| Z-axis accuracy | ±3 μm |
| Scanning speed | Up to 6 m/s, jumps at up to 18 m/s |
| Laser beam quality | M² ≤ 1.2, power stable within ±1% |
| Layer thickness | 0.02-0.1 mm |
|---|---|
| Preheating | Up to 200 °C |
| Oxygen level | Down to 100 ppm or less |
| Filter service life | Over 40,000 hours |
| Relative humidity | 50% or less |

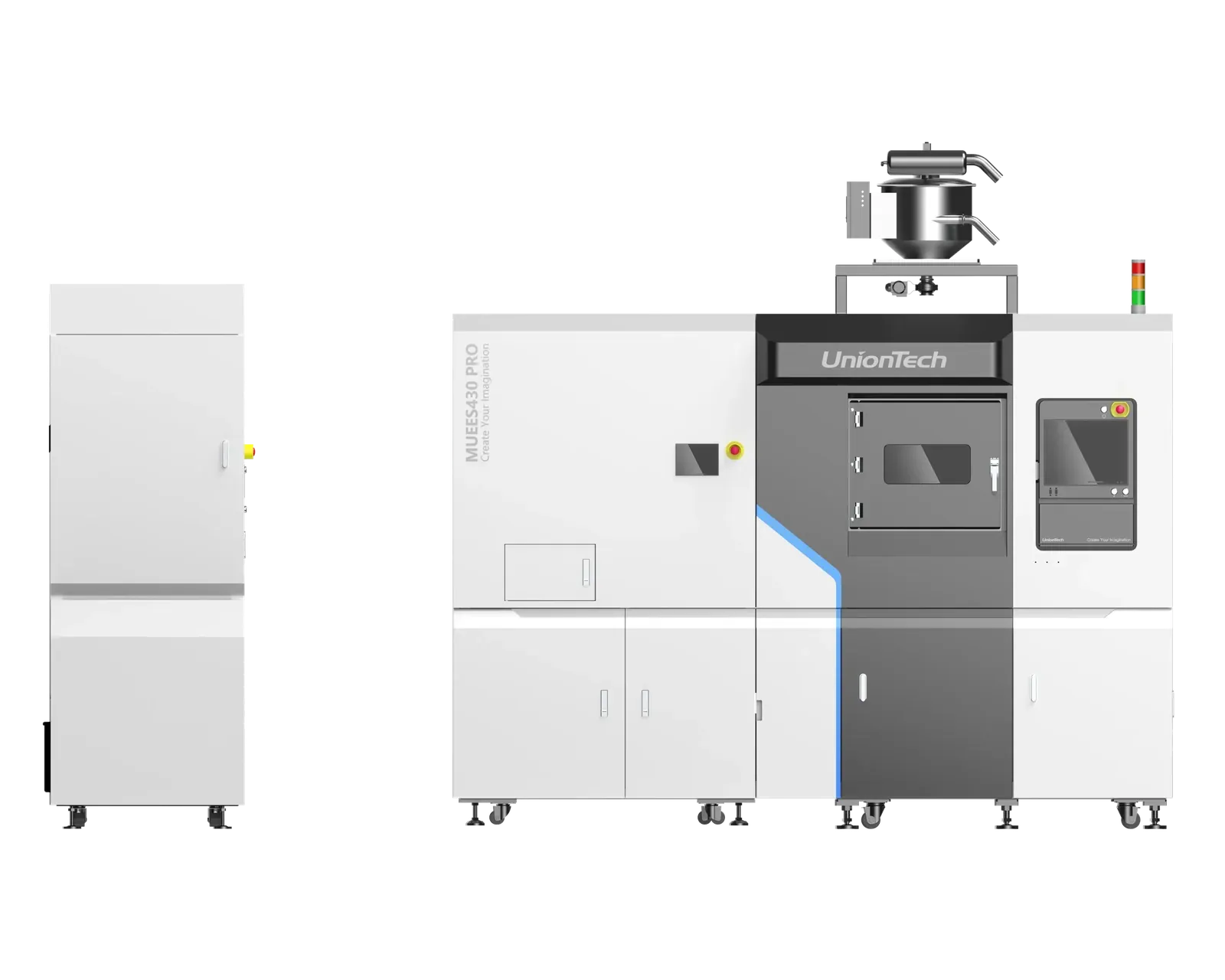

| Machine size | 3120 × 1470 × 2260 mm, including the circulation unit |
| Machine weight | 2710 kg |
The software behind it
UnionTech show their own software with the MUEES430 PRO.

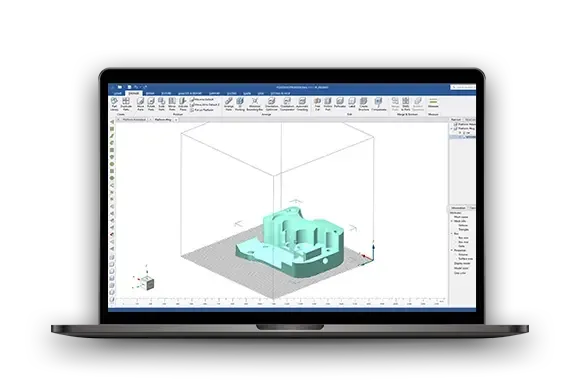

UnionTech build software
UnionTech's software lays out parts in the machine's 430 × 340 × 330 mm build volume and prepares the build to print. Ask us which package comes with your configuration.
Before it arrives
What the MUEES430 PRO needs from your site, from UnionTech's published data.
Floor space and weight
The machine measures 3120 × 1470 × 2260 mm including the circulation unit and weighs 2710 kg. Check the route in and the floor loading before delivery.
The room
UnionTech specify relative humidity of 50% or less. Ask us for the full site requirements before you plan the room.
Materials it runs
Metal powders listed by UnionTech for the MUEES430 PRO.
Stainless steel
Listed by UnionTech for the MUEES430 PRO.
Aluminium alloy
A reactive alloy. The recirculation system holds oxygen at 100 ppm or less to print it.
High-strength aluminium
Listed by UnionTech alongside standard aluminium alloy.
Titanium alloy
A reactive alloy, printed in the same low-oxygen atmosphere.
Bought, installed and supported in the UK
Europac 3D supplies UnionTech printers in the UK.
Advice before you buy
Tell us what you make. We will tell you whether the MUEES430 PRO suits it, then quote on the configuration and materials your work needs.
Installation
We install the printer on your site.
Training
We train your operators to run the printer and its software.
Service and support
Support after installation comes from Europac 3D in the UK, backed by UnionTech.
MUEES430 PRO questions
How productive is the MUEES430 PRO?
It has four lasers scanning at up to 6 m/s, plus bidirectional recoating that UnionTech say is 20% more efficient than one-way spreading.
Can it print titanium and aluminium?
Yes. UnionTech list stainless steel, aluminium alloy, high-strength aluminium and titanium alloy. The recirculation system holds oxygen at 100 ppm or less for reactive materials.
How precise is it?
Optical encoders keep the Z axis within ±3 μm. UnionTech quote ±0.1 mm on parts up to 100 mm, plus ±0.1% of the length above that.
What keeps running costs down?
UnionTech rate the filter in their recirculation system for over 40,000 hours, which reduces maintenance over the life of the machine.
Is it safe to run around the clock?
UnionTech design it to ISO 13849, with UPS power backup to protect builds and dual fixed seals against leaks.
Who installs and supports the MUEES430 PRO in the UK?
Europac 3D. We supply, install and support UnionTech printers in the UK, as well as training your operators.
See the MUEES430 PRO before you decide
Tell us what you make and we will arrange a demonstration. Or send us a part: we will tell you which printer suits it. We will print it for you if none is worth buying yet.
