HeyGears resins

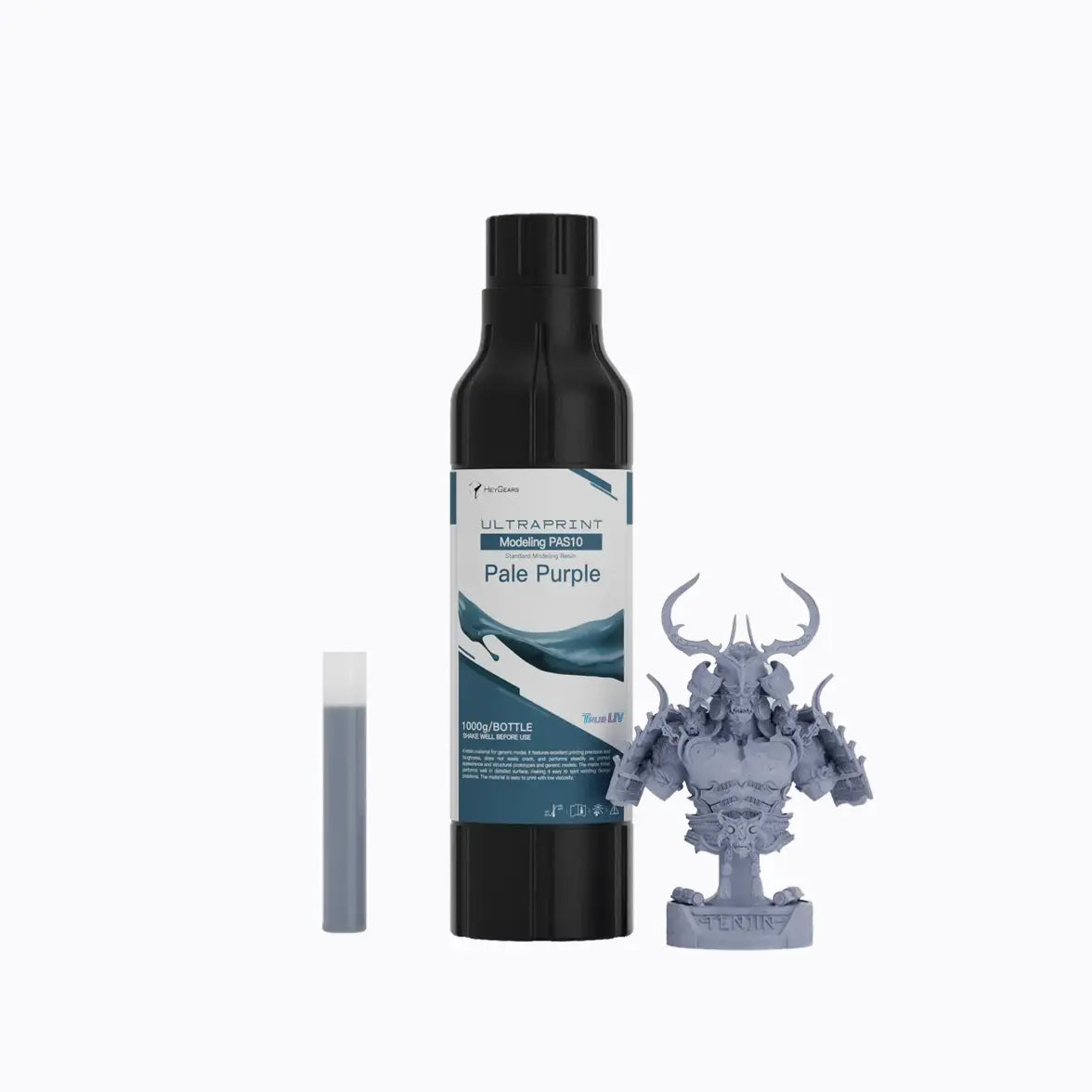

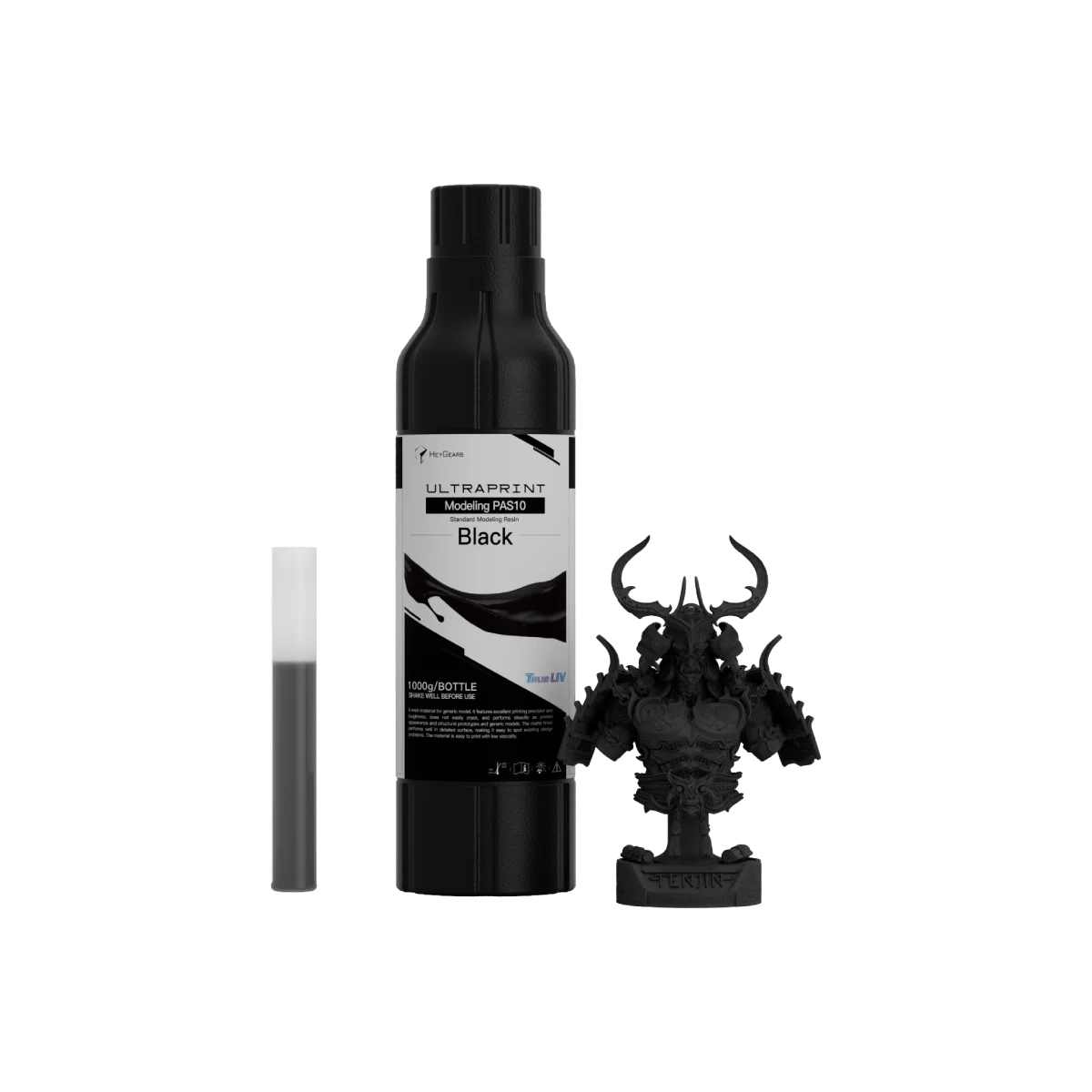

HeyGears UltraPrint PAS10 Standard Modeling Resin
General-purpose modelling resin, the standard choice across the Reflex line.
More from HeyGearsProperties
Figures as HeyGears publish them, checked on heygears.com in October 2026. They are HeyGears Lab averages with a deviation of ±10%. Rows marked (data sheet) come from the HeyGears technical data sheet.
- Colours
- Pale Purple, Black, White
- Bottle
- 1000 g
- Flexural strength
- 79 MPa (Pale Purple), 88 MPa (Black), 91 MPa (White)
| Colours | Pale Purple, Black, White |
|---|---|
| Bottle | 1000 g |
| Flexural strength | 79 MPa (Pale Purple), 88 MPa (Black), 91 MPa (White) |
| Flexural modulus | 1630 MPa (Pale Purple), 2490 MPa (Black), 2460 MPa (White) |
| Tensile strength | 45 MPa (Pale Purple, data sheet) |
| Tensile modulus | 1400 MPa (Pale Purple, data sheet) |
| Elongation at break | 16% (Pale Purple), 15% (Black), 20% (White) |
| Impact strength, notched | 32 J/m (Pale Purple), 27 J/m (Black), 45 J/m (White) |
|---|---|
| Work of fracture | 3200 J/m² (Pale Purple), 2200 J/m² (Black), 7680 J/m² (White) |
| Heat deflection temperature | 51°C (Pale Purple), 55°C (Black), 51°C (White) |
| Hardness | 81 Shore D (Pale Purple), 85 Shore D (Black), 85 Shore D (White) |
| Viscosity | 531 mPa·s (Pale Purple), 250 mPa·s (Black), 229 mPa·s (White) |
| Water sorption | 1.2% (Pale Purple, data sheet) |
