DWS · High-resolution production SLA
DWS XCELL 900Q / QHR
The ultra-wide 900 × 300 × 550 mm XCELL format with a twelve-laser BlueEdge light engine, which DWS position as its highest resolution option for jewellery and eyewear. Also offered as the higher-resolution XCELL 900QHR.
More from DWS- Working area, mm
- 900 × 300 × 550
- BlueEdge lasers
- 12
- Slice thickness, microns
- 10-200
DWS do not publish machine prices, so neither do we. We quote on the build and materials your work needs.
- Sold, installed and supported in the UK by Europac 3D
- Nauta+ and Fictor software included
- Datasheet available to download
Why the XCELL 900Q

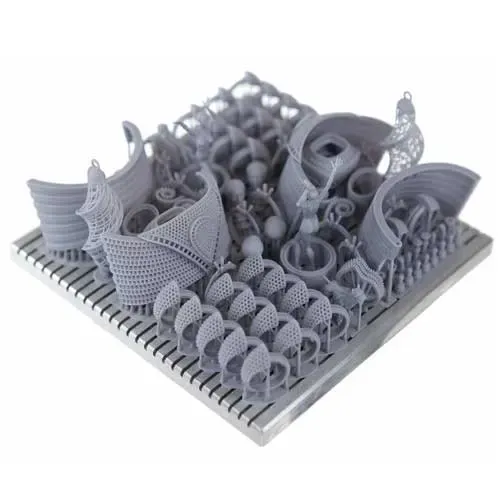

Used for jewellery, eyewear, full-scale prototyping, jigs and fixtures, mechanical parts, moulding.
Twelve-laser light engine
Twelve solid-state BlueEdge lasers with twelve-galvanometer scanning, which DWS describe as the highest resolution available for jewellery and eyewear.
Ultra-wide 900 × 300 × 550 mm build
The same ultra-wide format as the XCELL 900S, with best-in-class surface quality for minimal finishing.
Smart Coating for unattended runs
Smart Coating controls the viscosity, quantity and displacement of resin, for repeatable, unmanned production over several days.
Light-engine-agnostic platform
The fourth printer on the XCELL platform, whose design accepts different irradiation solutions. Quick material change and, DWS say, zero maintenance.
Specification
Specifications from dwssystems.com.
- Working area, mm
- 900 × 300 × 550
- BlueEdge lasers
- 12
- Slice thickness, microns
- 10-200
| Technology | Smart Coating stereolithography |
|---|---|
| Working area | 900 × 300 × 550 mm |
| Laser source | Twelve solid-state BlueEdge |
| Slice thickness | 10-200 microns, depending on material |
| Scanning method | Twelve galvanometers |
| Software included | Nauta+, Fictor |
| Input file formats | .stl, .slc, .nauta, .fictor, .mkr, .3dm, .3ds, .ply, .obj, .lwo, .x |
|---|---|
| Machine size | 2100 × 860 × 2450 mm |
| Weight | 1200 kg |
| Operating temperature and humidity | 20-25°C / 60% |
| Power supply | AC 230 / 115 V, 50-60 Hz |
| Electrical consumption | 600 W |
Software selector
The software that runs it
Nauta+ and Fictor
Materials it runs
Compare with
| DWS XCELL 900Q / QHR | DWS XCELL 900S | DWS XCELL 300Q / QHR | |
|---|---|---|---|
| Price | POA | POA | POA |
| Technology | Smart Coating stereolithography | Smart Coating stereolithography | Smart Coating stereolithography |
| Build volume | 900 × 300 × 550 mm | 900 × 300 × 550 mm | 300 × 300 × 550 mm |
| Layer thickness | 10-200 microns, depending on material | 10-200 microns, depending on material | 10-200 microns, depending on material |
| Light source | Twelve solid-state BlueEdge | Triple solid-state BlueEdge | Solid-state BlueEdge (quad) |
| Machine size | 2100 × 860 × 2450 mm | 2100 × 860 × 2450 mm | 1503 × 899 × 1979 mm |
| Weight | 1200 kg | 1200 kg | 550 kg |
See the XCELL 900Q before you decide
Tell us what you make and we will arrange a demonstration. Or send us a part: we will tell you which printer suits it. We will print it for you if none is worth buying yet.
