UnionTech · Compact SLA for small-batch production

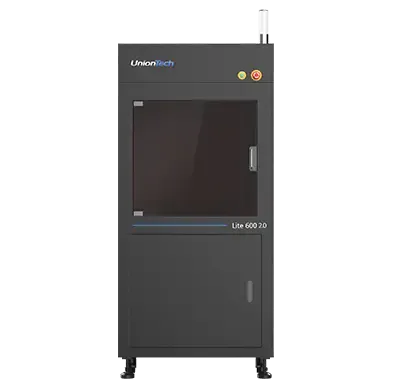

UnionTech Lite 600 2.0
A 600 × 600 × 400 mm SLA printer for small-batch production, in a smaller frame than the generation before it. It runs a range of resins and is calibrated at the factory.
More from UnionTech- Build volume, mm
- 600 × 600 × 400
- Layer thickness, mm
- 0.05-0.25
- Scanning speed, m/s
- 8-15
Priced on configuration. We quote on the build size, laser and materials your work needs.
- Sold, installed and supported in the UK by Europac 3D
Why the Lite 600 2.0
For small-batch production and prototypes.
Smaller
The frame is smaller than the previous Lite 600, which saves floor space and cuts transport costs.
Stronger
UnionTech reduced the adjustment points and upgraded the frame, to make the machine more stable.
Calibrated at the factory
Automatic calibration at the factory reduces manual accuracy error and makes the printer easier to run.
A large build for its size
600 × 600 × 400 mm of build volume in a machine 880 mm wide.
Accurate to ±0.1 mm
UnionTech quote ±0.1 mm on parts under 100 mm and ±0.1% of the dimension above that.
What it makes
UnionTech show these parts printed on the Lite 600 2.0.
Automotive parts
Parts such as an automotive audio panel.
Packaging prototypes
Bottle prototypes for packaging design.
Anatomical models
Models such as a hand skeleton.
Engineering parts
Functional engineering parts.
Figures and display models
Detailed figures and models, such as UnionTech’s squirrel sample.
Specification
Specifications from uniontech3d.com. UnionTech ask buyers to confirm the current offering, so check any figure you plan around with us.
- Build volume
- 600 × 600 × 400 mm
- Accuracy under 100 mm
- ±0.1 mm
- Machine width
- 880 mm
| Build volume | 600 × 600 × 400 mm |
|---|---|
| Accuracy | Under 100 mm: ±0.1 mm. 100 mm and over: ±0.1% of the dimension |
| Layer thickness | 0.05-0.25 mm |
| Laser | 355 nm, solid-state frequency-tripled Nd:YVO₄ |
| Beam focus | Dynamic and variable |
| Beam size | 0.12-0.8 mm |
| Scanning speed | 8-15 m/s |
| Resin vat | Fixed |
| Control software | UnionTech RSCON |
| Operating system | Windows 10 |
| Data interface | .stl |
|---|---|
| Network | Ethernet, IEEE 802.3, TCP/IP |
| Electrical supply | 200-240 VAC, 50/60 Hz, single phase |
| Rated power | 2.6 kVA |
| Systems control | Closed-loop |
| Room temperature | 22-26 °C, changing by no more than 1 °C an hour |
| Relative humidity | Below 40% |
| Machine size | 880 × 1280 × 1895 mm |
| Machine weight | 760 kg |
Before it arrives
What the Lite 600 2.0 needs from your site, from UnionTech's published data.
Floor space and weight
The machine measures 880 × 1280 × 1895 mm and weighs 760 kg. Check the route in and the floor loading before delivery.
Power
It needs 200-240 VAC, 50/60 Hz, single phase, rated at 2.6 kVA.
The room
UnionTech specify a room at 22-26 °C, changing by no more than 1 °C an hour, with relative humidity below 40%.
Data and network
It takes .stl files over Ethernet and runs on Windows 10.
Software selector
The software that runs it
Included with the printer
UnionTech RSCON
UnionTech's control software. It runs the printer under closed-loop control and takes .stl files from your preparation software.
Bought, installed and supported in the UK
Europac 3D supplies UnionTech printers in the UK.
Advice before you buy
Tell us what you make. We will tell you whether the Lite 600 2.0 suits it, then quote on the configuration and materials your work needs.
Installation
We install the printer on your site.
Training
We train your operators to run the printer and its software.
Service and support
Support after installation comes from Europac 3D in the UK, backed by UnionTech.
Lite 600 2.0 questions
How is the 2.0 different from the original Lite 600?
UnionTech made it smaller, reduced the adjustment points, upgraded the frame for stability and added automatic calibration at the factory.
How accurate is it?
UnionTech quote ±0.1 mm on parts under 100 mm and ±0.1% of the dimension on larger parts.
What does the room need?
UnionTech specify a room at 22-26 °C, changing by no more than 1 °C an hour, with relative humidity below 40%. The printer needs 200-240 VAC, 50/60 Hz, single phase power, rated at 2.6 kVA.
Who installs and supports the Lite 600 2.0 in the UK?
Europac 3D. We supply, install and support UnionTech printers in the UK, as well as training your operators.
Compare with
| UnionTech Lite 600 2.0 | UnionTech D600 | UnionTech RSPro600 2.0 | |
|---|---|---|---|
| Price | POA | POA | POA |
| Build volume | 600 × 600 × 400 mm | 600 × 600 × 100 mm | 600 × 600 × 500 mm |
| Accuracy, parts under 100 mm | ±0.1 mm | ±0.1 mm | ±0.1 mm |
| Layer thickness | 0.05-0.25 mm | 0.05-0.25 mm | 0.05-0.25 mm |
| Lasers | 355 nm | 355 nm | 355 nm |
| Scanning speed | 8-15 m/s | 8-15 m/s | 6-10 m/s |
| Machine weight | 760 kg | 850 kg | 1490 kg |
See the Lite 600 2.0 before you decide
Tell us what you make and we will arrange a demonstration. Or send us a part: we will tell you which printer suits it. We will print it for you if none is worth buying yet.
