Resin 3D printers, from the desk to the factory floor

Two kinds of resin 3D printer for two very different buyers. HeyGears Reflex 3D printers sit on a desk, for small businesses and design teams. UnionTech builds large-frame industrial SLA for print bureaus and production lines. DWS covers jewellery, dental and fine detail.

Talk to a specialist Book a demonstration

HeyGears prices are on the page. UnionTech and DWS are priced on configuration. Call 0330 229 0175

26: 3D printers in the current range
£1,199: ex VAT, the starting price of a HeyGears Reflex
2100 mm: longest SLA build, on the UnionTech RSPro2100
20 µm: finest resolution, on the DWS DW 029MKIII

Talk to a specialist

On the desk, or on the factory floor?

Both print in resin, for very different buyers. Start with the size of your business, the parts you make and how many.

Engineers at a HeyGears Reflex 2 Pro resin 3D printer

Small businesses, studios and design teams

HeyGears Reflex: professional resin printing on a desk

Bench-top resin 3D printers that work as one system with UltraPrint resins, Blueprint Studio and UltraCraft Wash and Cure. No installation: delivered, set up and printing, with the UK price of every model on the page.

Product designers and engineers
Small manufacturers and studios
Small batch production
A first professional resin 3D printer

Price: From £1,199 ex VAT
Largest build: 230 × 144 × 350 mm
Set-up: Bench-top, no installation

See the Reflex range HeyGears showcase

Two UnionTech RSPro SLA 3D printers lit green and blue in a production hall

Print bureaus, motorsport and industry

UnionTech: large-frame industrial SLA

Production stereolithography from the 250 mm PILOT to the 2.1 metre RSPro2100, open to Somos and other performance resins, plus SLM metal. Installed on your site by our engineers. Our own bureau runs UnionTech machines every day.

Print bureaus and service providers
Motorsport and automotive teams
Patterns, tooling and wind tunnel models
Large parts in one piece

Price: On configuration
Largest build: 2100 × 700 × 800 mm
Set-up: Installed and commissioned on site

See the UnionTech range UnionTech showcase

The DWS stereolithography 3D printer range

Specialist

DWS: jewellery, dental and fine-detail SLA

Italian stereolithography for specialist work: castable jewellery, dental models and precision parts down to 20 microns, on DWS’s own materials.

See the DWS range DWS showcase

The HeyGears Reflex range.

Bench-top resin 3D printers for small businesses, studios and design teams. Every Reflex has its UK price and every UltraPrint resin carries a tuned profile for it.

HeyGears Reflex 2 series

The OptiZone generation

The Amber Screen Pro, rated beyond 6,000 hours, behind an OptiZone light engine that evens out the light zone by zone. The Pro adds a 350 mm build height and 1,032 zones for batch production.

Reflex 2 seriesReflex 2 ProBuild volume230 × 144 × 350 mmLight engine1,032-zone OptiZoneProduction and batch runs£2,549 ex VATDetails

Reflex 2 seriesReflex 2Light engine161-zone OptiZoneScreenAmber Screen Pro, 6,000 h+Engineering prototypes£1,260 ex VATDetails

HeyGears Reflex series

The established platform

The Reflex that set up the system: a 385 nm Amber Screen, a C5 ball-screw Z axis and the full UltraPrint resin range. The Turbo adds the upgraded screen.

Reflex seriesReflex TurboLight sourceAmber Screen, 385 nmZ axis±2 μm repeatabilityDetailed prototypes£1,299 ex VATDetails

Reflex seriesReflexBuild volume192 × 121 × 220 mmXY pixel33 μmA first professional resin 3D printer£1,199 ex VATDetails

Compare every Reflex side by side, with the resins each one runs.

Compare the range HeyGears showcase

The UnionTech range.

Industrial SLA for print bureaus, motorsport and production. Open materials, granite-stable frames and builds up to 2.1 metres. Every UnionTech is priced on the build size, lasers and materials you need.

UnionTech PILOT series

Detailed prototypes, smaller footprint

SLA for smaller-volume industrial work, fully open to performance materials including Somos. 250 to 450 mm platforms.

Close-up of the lattice inside a clear SLA impeller

About the PILOT series

PILOT seriesPILOT 250Build volume250 × 250 × 250 mmAccuracy under 25.4 mm±0.025 mmDetailed prototypes and small parts.Price on applicationDetails

PILOT seriesPILOT 450Build volume450 × 450 × 400 mmLayer thickness0.05 to 0.25 mmPrototypes and short runs on a mid-size platform.Price on applicationDetails

UnionTech RSPro series

Large-format production

Large-volume SLA with class-leading accuracy and vertical wall quality, for small to medium production runs. 600 to 2100 mm platforms.

A full-size shoe sole printed on a UnionTech RSPro

About the RSPro series

RSPro seriesRSPro600 2.0Build volume600 × 600 × 500 mmLayer thickness0.05 to 0.25 mmProduction SLA on a 600 mm platform.Price on applicationDetails

RSPro seriesRSPro800 2.0Build volume800 × 800 × 550 mmScanning speed6 to 12 m/sThe large-format workhorse of the RSPro range.Price on applicationDetails

RSPro seriesRSPro800 XBuild volume800 × 800 × 550 mmLasers4Four lasers, up to 60% faster than before, UnionTech say.Price on applicationDetails

RSPro seriesRSPro1400Build volume1400 × 700 × 500 mmLasers2Long parts in one piece.Price on applicationDetails

RSPro seriesRSPro1800Build volume1800 × 900 × 600 mmLasers2Very large parts and multi-part builds.Price on applicationDetails

RSPro seriesRSPro2100Build volume2100 × 700 × 800 mmLasers3UnionTech’s largest SLA build. Dashboards and door panels print at full size, in one piece.Price on applicationDetails

UnionTech Specialist

Dental, tyre moulds and general production

The D600 for dental or orthodontic models, the RA600 and RA900 for tyre moulds, plus the compact Lite 600 2.0.

About the specialist range

SpecialistLite 600 2.0Build volume600 × 600 × 400 mmLayer thickness0.05 to 0.25 mmCompact production SLA for general parts.Price on applicationDetails

Specialist · DentalD600Build volume600 × 600 × 100 mmLayer thickness0.05 to 0.25 mmSet up for dental and orthodontic models.Price on applicationDetails

Specialist · Tyre mouldsRA600Build volume600 × 600 × 400 mmAccuracy under 100 mm±0.1 mmTyre mould production.Price on applicationDetails

Specialist · Tyre mouldsRA900Build volume950 × 550 × 400 mmLasers2Dual-laser tyre mould production.Price on applicationDetails

UnionTech SLM

Metal parts

Selective laser melting for dense, functional metal parts.

About SLM metal

Metal part on its supports, prepared for selective laser melting

SLM metalMUEES430 PROProcessSelective laser meltingMaterialMetal powderUnionTech’s metal powder-bed fusion system, for dense functional metal parts.Price on applicationDetails

Compare every platform to scale on the UnionTech showcase.

UnionTech showcase

The DWS range.

Specialist SLA for jewellery, dental and fine detail. The laser sits underneath the tank, so less resin sits in the machine and switching material is a tank change. Every DWS is priced on configuration.

DWS XCELL

Automated large-scale production

DWS’s flagship platform. Smart Coating Stereolithography runs unmanned for days at a time with minimal post-finishing, on a 300 mm or 900 mm wide working area.

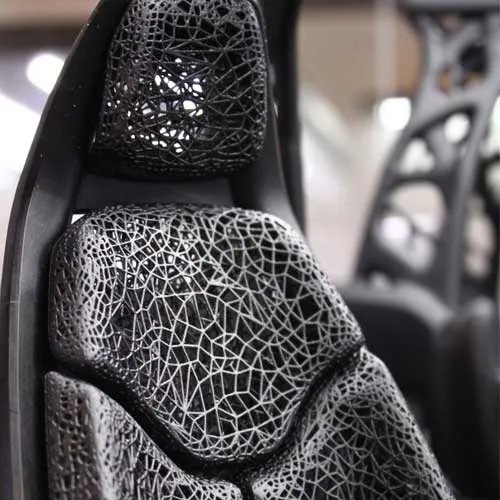

DWS XCELLXCELL 900SWorking area900 × 300 × 550 mmLasers3 BlueEdge®Large-scale production on an ultra-wide platformPrice on applicationDetails

DWS XCELLXCELL 900Q / QHRWorking area900 × 300 × 550 mmLasers12 BlueEdge®Automated large-scale productionPrice on applicationDetails

DWS XCELLXCELL 300SWorking area300 × 300 × 550 mmLasers1 BlueEdge®Mid-volume production for small and large partsPrice on applicationDetails

DWS XCELLXCELL 300Q / QHRWorking area300 × 300 × 550 mmLasers4 BlueEdge®Mid-volume production, quad laserPrice on applicationDetails

DWS XPRO

Industrial prototyping and production

The single-laser XPRO SL for big prototypes. The quad-laser XPRO Q and QL for high-volume work, with a 300 mm or 500 mm Z axis.

DWS XPROXPRO SLWorking area300 × 300 × 500 mmLasers1 BlueEdge®Industrial prototyping and big partsPrice on applicationDetails

DWS XPROXPRO Q / QHRWorking area300 × 300 × 300 mmLasers4 BlueEdge®High-volume industrial productionPrice on applicationDetails

DWS XPROXPRO QL / QLHRWorking area300 × 300 × 500 mmLasers4 BlueEdge®High-volume production, taller partsPrice on applicationDetails

DWS DW

Best in class for fine detail

Compact 3D printers with DWS’s finest detail, down to 20 microns, for jewellery, eyewear and precision mechanics.

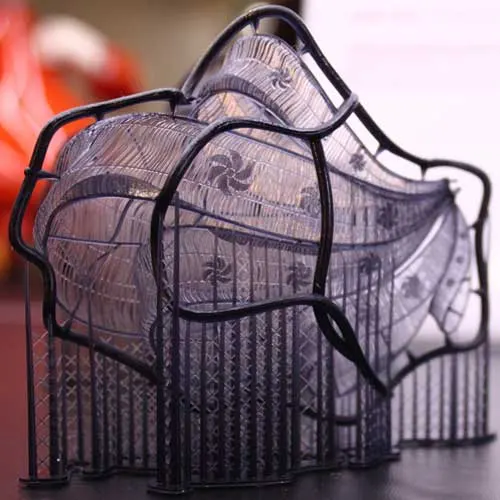

DWS DWDW 029MKIII / HRWorking area170 × 170 × 200 mmLasers1 BlueEdge®Jewellery, eyewear and precision mechanicsPrice on applicationDetails

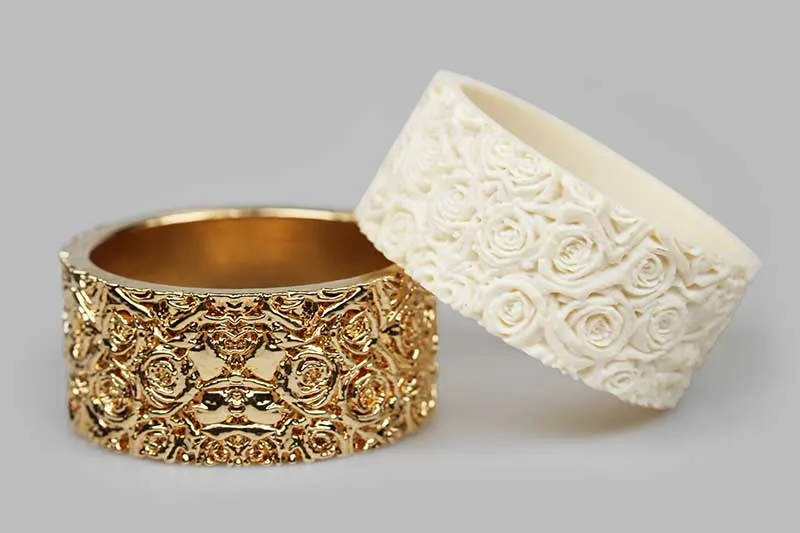

DWS DWDW 028XLHRWorking area100 × 100 × 100 mmLasers1 BlueEdge®Desktop jewellery and fashion accessoriesPrice on applicationDetails

Dental labs and clinics: ask us for the XFAB PD range.

DWS materials DWS showcase

What resin printing does well.

Every 3D printer here cures liquid resin into solid parts, layer by layer, with UV light: a laser on UnionTech and DWS machines (stereolithography, or SLA), a masked LCD screen on a HeyGears Reflex.

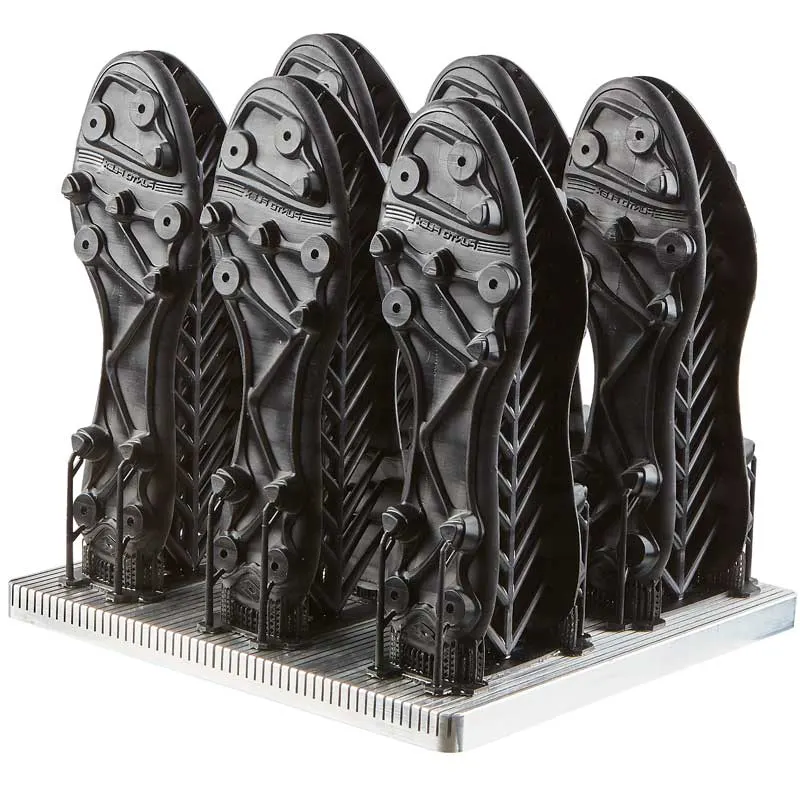

Elastomer shoe soles printed by SLA on a build platform — Elastomer soles, straight off a DWS platform

Smooth, highly accurate surfaces

Resin printing produces smooth, highly accurate surfaces and fine detail.

A wide range of materials

Tough, clear, heat-resistant, castable and rubber-like resins, chosen for the job.

Where it earns its place

Master patterns, tools, functional prototypes, wind tunnel models and clear or transparent components.

Materials and what happens after you buy.

PAH270 resin with a printed mould insert

MaterialsHeyGears UltraPrint resinsEngineering resins with a tuned profile for every Reflex, from modelling grades to tooling.

Orange helmet model printed in Somos resin

MaterialsSomos SLA resinsTough, clear, heat-resistant and castable grades for open SLA 3D printers.

The 3D Printworx machine hall in Whitchurch

After you buyInstallation, training and serviceWhat happens when a 3D printer arrives and who looks after it afterwards.

Europac 3D technician holding an SLA printed steering wheel in front of UnionTech 3D printers

Our print serviceHave the parts printed by usOur own SLA print service runs on UnionTech machines. Not ready to buy? We can print the parts while you decide.

Bought in the UK, looked after in the UK.

A Reflex arrives ready for the bench and we get your team printing. UnionTech and DWS machines are configured and quoted for the parts you make, then installed by our own engineers.

Set up or installed

A Reflex is bench-top, so no installation. UnionTech and DWS are installed and commissioned on your site by Europac 3D engineers.

Operator training

On the 3D printer, its software and part preparation, until your team runs it alone.

UK service and spares

Maintenance, service and spare parts from our base in Whitchurch, Cheshire.

The right material first time

Resins supplied and advised on by people who print with them every day.

Already running an older DWS?

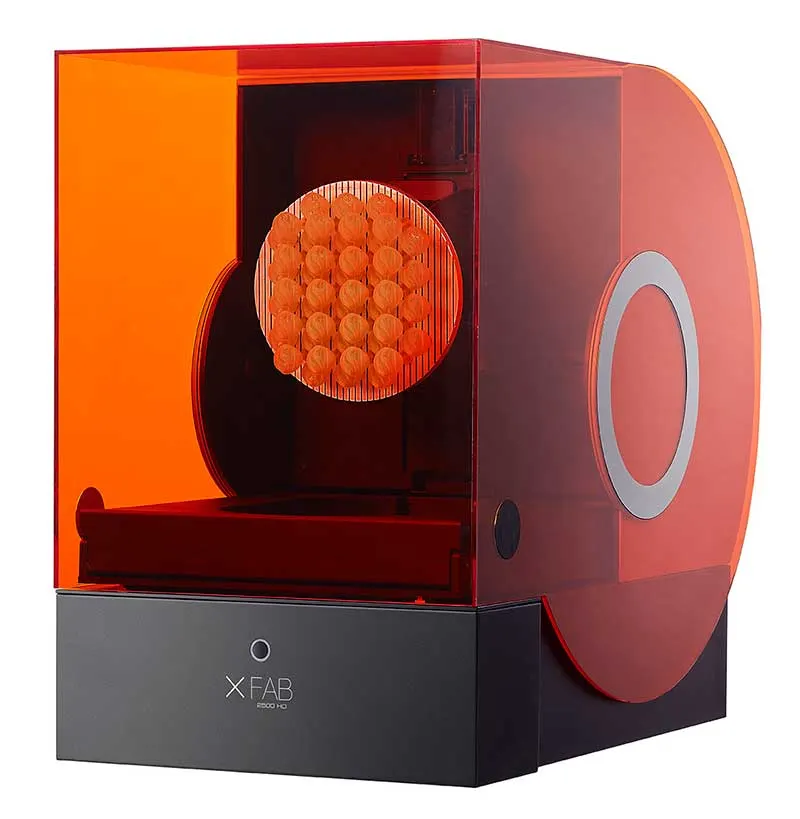

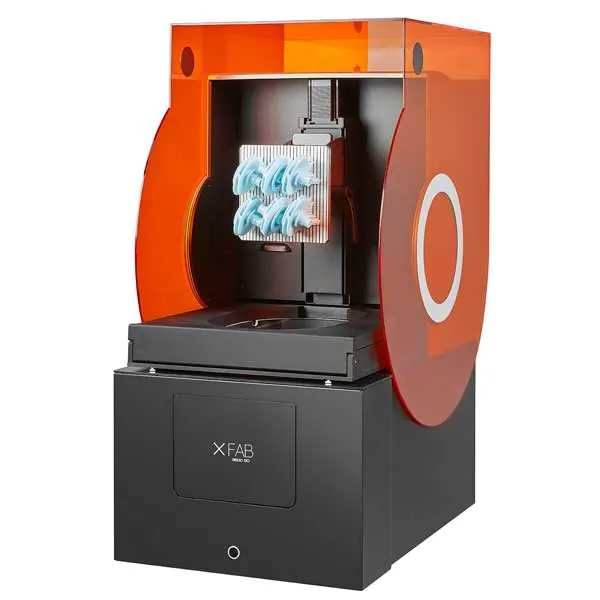

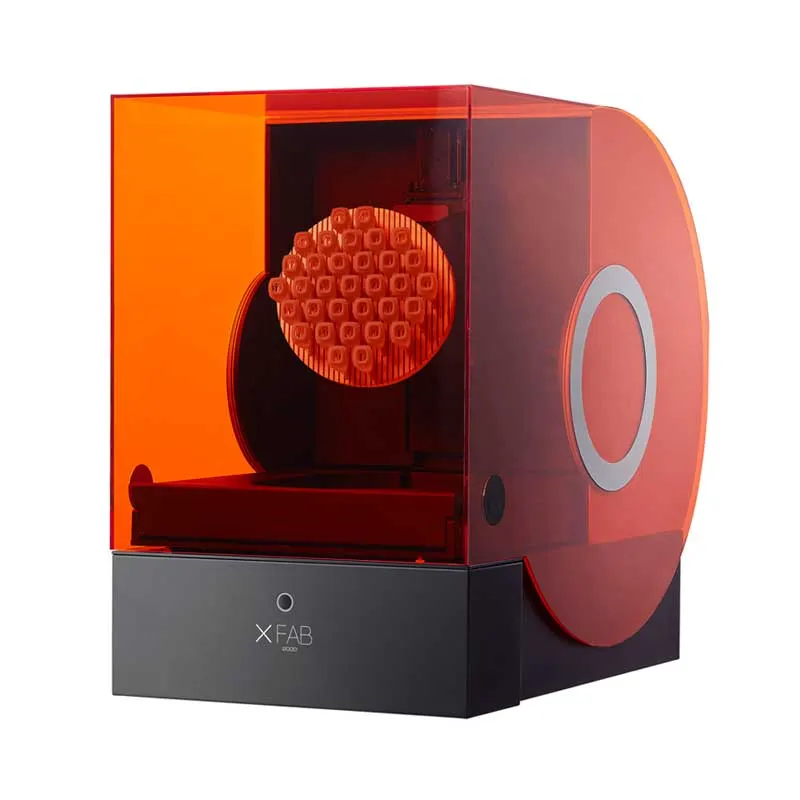

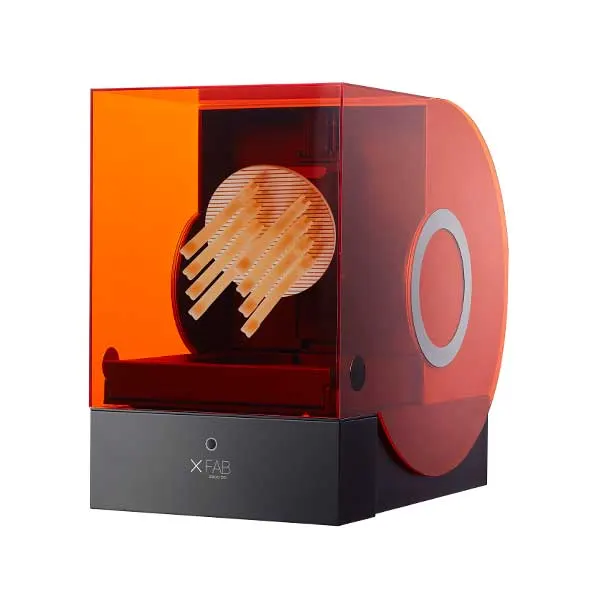

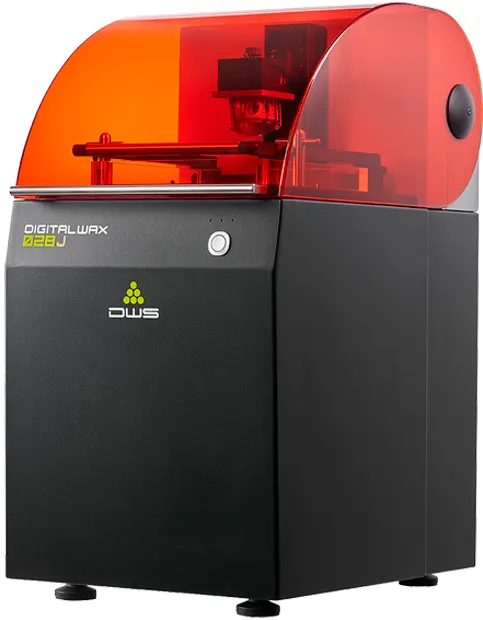

We still support the XFAB 2000, 2500 and 3500. We also support the 028J, 029J and 029X, plus the XPRO S. Tell us your model for materials, service and the current equivalent.

Book a service

FAQ

Not answered here?

Ask the engineers who run the machines. We answer the same working day.

0330 229 0175 Send a message

Which 3D printer brands do you supply?

Three makers, for different buyers. HeyGears Reflex bench-top resin 3D printers suit small businesses, studios and design teams. UnionTech builds large-frame industrial stereolithography for print bureaus and production. DWS specialises in jewellery, dental and fine-detail machines with small to medium build volumes.

How large a part can the 3D printers build?

The UnionTech SLA range runs from the PILOT 250 at 250 x 250 x 250 mm up to the RSPro2100 at 2100 x 700 x 800 mm. DWS working areas run from 100 x 100 x 100 mm on the desktop DW 028XLHR to 900 x 300 x 550 mm on the XCELL 900S and 900Q / QHR.

How much does a 3D printer cost?

Every HeyGears Reflex has its UK price, ex VAT, on its own page. Our UnionTech and DWS 3D printers are priced on application, because each one is priced on its configuration. Tell us what you want to print and we will quote. Request a quote

Am I tied to one resin supplier?

Not on UnionTech machines. They are an open design, so you are not tied to one resin supplier. We supply Somos resins for UnionTech SLA systems. UnionTech 3D printers

What is included when I buy a 3D printer from you?

Every UnionTech SLA 3D printer is installed and commissioned on your site by our engineers, with operator training on the 3D printer, RSCON plus part preparation. UK service, maintenance and spare parts come from our Cheshire base. DWS machines are also sold, installed and supported in the UK by Europac 3D. A HeyGears Reflex is bench-top, so there is no installation: we get your team printing.

Does software come with the 3D printer?

Yes. Every current DWS 3D printer ships with Nauta+ for file preparation and Fictor for machine control, with nothing to buy separately. UnionTech SLA 3D printers run UnionTech's RSCON control software. HeyGears Reflex 3D printers run Blueprint Studio.

Do you supply metal 3D printers?

Yes. UnionTech's current metal range is the MUEES430 PRO, a selective laser melting system that builds dense functional metal parts. We talk through the parts, alloys and volumes first so the machine is specified for the work. UnionTech SLM metal 3D printers

Do you support older DWS 3D printers?

Yes. We continue to support earlier DWS machines, including the XFAB 2000, 2500 and 3500 series. We also support the 028J, 029J and 029X, plus the XPRO S. Tell us which one you have. We will advise on materials, service and the current equivalent. DWS 3D printers
