UnionTech · Large-format production SLA

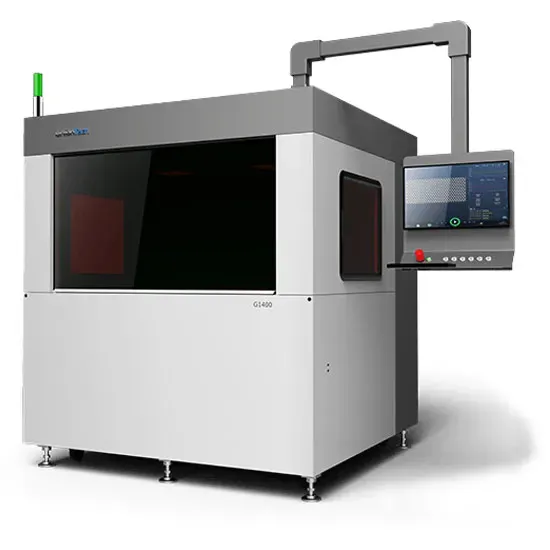

UnionTech RSPro1400
Large-format SLA with a 1400 × 700 × 500 mm build and a dual-laser, dual-scanning system. Made for large, high-quality finished parts and for volume production.
More from UnionTech- Build volume, mm
- 1400 × 700 × 500
- Lasers
- 2
- Layer thickness, mm
- 0.1-0.25
Priced on configuration. We quote on the build size, laser and materials your work needs.
- Sold, installed and supported in the UK by Europac 3D
Why the RSPro1400
For appliance, industrial and product parts at full size, plus volume production.
Two lasers, two scanners
A dual-laser, dual-scanning system, for large finished parts and for volume production.
Long parts in one piece
1400 mm of build length takes long parts, such as appliance panels, at full size.
Large-part accuracy
UnionTech quote ±0.2 mm on parts under 100 mm and ±0.2% of the dimension above that.
Closed-loop control
UnionTech RSCON runs the machine under closed-loop control, with dynamic, variable beam focus.
What it makes
UnionTech show these parts printed on the RSPro1400.
Appliance parts
Air conditioner parts, washing machine panels and electric iron parts.
Industrial parts
Large industrial components.
Sanitaryware prototypes
Full-size washbasin prototypes.
Specification
Specifications from uniontech3d.com. UnionTech ask buyers to confirm the current offering, so check any figure you plan around with us.
- Build volume
- 1400 × 700 × 500 mm
- Lasers
- 2
- Accuracy under 100 mm
- ±0.2 mm
| Build volume | 1400 × 700 × 500 mm |
|---|---|
| Accuracy | Under 100 mm: ±0.2 mm. 100 mm and over: ±0.2% of the dimension |
| Layer thickness | 0.1-0.25 mm |
| Lasers | Dual laser, dual scanning. 355 nm, solid-state frequency-tripled Nd:YVO₄ |
| Beam focus | Dynamic and variable |
| Beam size | 0.12-0.85 mm |
| Scanning speed | 6-10 m/s |
| Resin vat | Fixed |
| Control software | UnionTech RSCON |
| Data interface | .stl |
|---|---|
| Network | Ethernet, IEEE 802.3, TCP/IP |
| Rated power | 3.9 kVA |
| Systems control | Closed-loop |
| Room temperature | 22-26 °C |
| Relative humidity | Below 40% |
| Machine size | 1885 × 1835 × 2100 mm |
| Machine weight | 1907 kg |
Before it arrives
What the RSPro1400 needs from your site, from UnionTech's published data.
Floor space and weight
The machine measures 1885 × 1835 × 2100 mm and weighs 1907 kg. Check the route in and the floor loading before delivery.
Power
It is rated at 3.9 kVA.
The room
UnionTech specify a room at 22-26 °C with relative humidity below 40%.
Data and network
It takes .stl files over Ethernet.
Software selector
The software that runs it
Included with the printer
UnionTech RSCON
UnionTech's control software. It runs the printer under closed-loop control and takes .stl files from your preparation software.
Bought, installed and supported in the UK
Europac 3D supplies UnionTech printers in the UK.
Advice before you buy
Tell us what you make. We will tell you whether the RSPro1400 suits it, then quote on the configuration and materials your work needs.
Installation
We install the printer on your site.
Training
We train your operators to run the printer and its software.
Service and support
Support after installation comes from Europac 3D in the UK, backed by UnionTech.
RSPro1400 questions
How accurate is the RSPro1400?
UnionTech quote ±0.2 mm on parts under 100 mm and ±0.2% of the dimension on larger parts.
How many lasers does it have?
Two. UnionTech describe a dual-laser, dual-scanning system.
Can I change resin?
The resin vat is fixed. Talk to us about materials before you order.
What does the room need?
UnionTech specify a room at 22-26 °C with relative humidity below 40%. The printer is rated at 3.9 kVA, weighs 1907 kg and measures 1885 × 1835 × 2100 mm.
Who installs and supports the RSPro1400 in the UK?
Europac 3D. We supply, install and support UnionTech printers in the UK, as well as training your operators.
Compare with
| UnionTech RSPro1400 | UnionTech RSPro1800 | UnionTech RSPro2100 | |
|---|---|---|---|
| Price | POA | POA | POA |
| Build volume | 1400 × 700 × 500 mm | 1800 × 900 × 600 mm | 2100 × 700 × 800 mm |
| Accuracy, parts under 100 mm | ±0.2 mm | ±0.2 mm | ±0.2 mm |
| Layer thickness | 0.1-0.25 mm | 0.1-0.25 mm | 0.1-0.25 mm |
| Lasers | 2 × 355 nm | 2 × 355 nm | 3 × 355 nm |
| Scanning speed | 6-10 m/s | 8-15 m/s | 8-15 m/s |
| Machine weight | 1907 kg | 2080 kg | 2520 kg |
See the RSPro1400 before you decide
Tell us what you make and we will arrange a demonstration. Or send us a part: we will tell you which printer suits it. We will print it for you if none is worth buying yet.
