UnionTech · High-speed production SLA

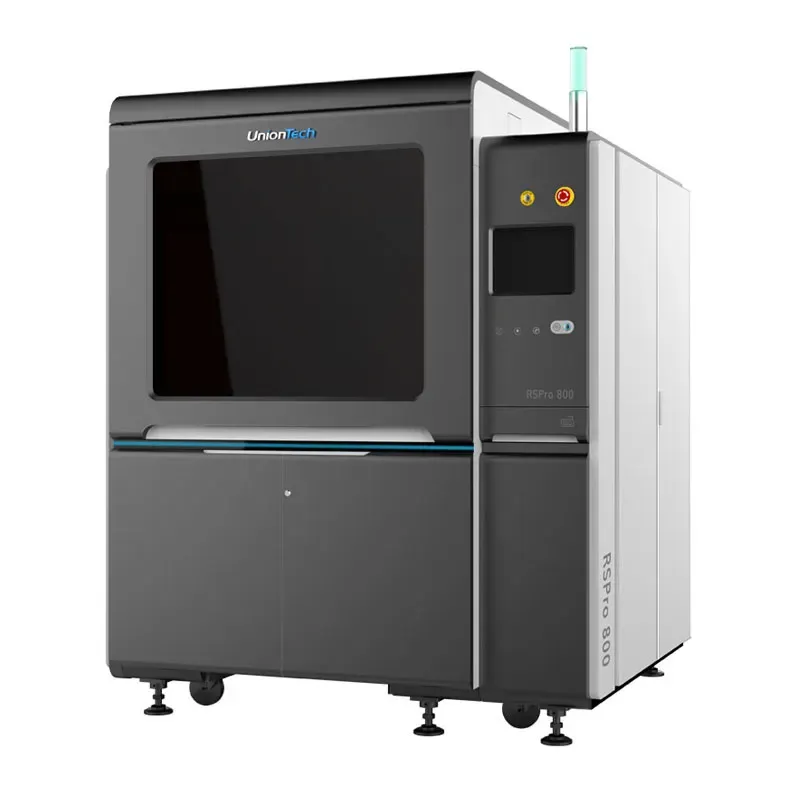

UnionTech RSPro800 2.0
High-speed industrial SLA with an 800 × 800 × 550 mm build. Variable beam control and split scanning keep it quick on large single parts as well as on full platforms of small ones.
More from UnionTech- Build volume, mm
- 800 × 800 × 550
- Scanning speed, m/s
- 6-12
- Layer thickness, mm
- 0.07-0.25
Priced on configuration. We quote on the build size, laser and materials your work needs.
- Sold, installed and supported in the UK by Europac 3D
Why the RSPro800 2.0
For rapid prototyping, small-batch production, automotive and industrial parts.
High-speed scanning
A variable laser beam and split scanning raise print speed without giving up accuracy.
Consistent parts
A good surface finish with fine detail, repeatable results and less post-processing.
Self-calibrating laser
Automatic laser calibration and scanning algorithms keep the energy output stable as well as the laser paths accurate.
A stable base
A marble base and liquid level control hold accuracy through long production runs.
Open materials
An open material system for a wide range of resins, including high-strength, heat-resistant and transparent grades.
Replaceable vat
The resin vat is replaceable, which makes material changes and maintenance simpler.
What it makes
UnionTech show these parts printed on the RSPro800 2.0.
Precision manufacturing parts
Parts that need accuracy and a clean finish.
Industrial components
Industrial components.
Automotive parts
Automotive parts and prototypes.
Creative prototypes
Prototypes for cultural and creative products.
Transparent display models
Clear models for display.
Specification
Specifications from uniontech3d.com. UnionTech ask buyers to confirm the current offering, so check any figure you plan around with us.
- Build volume
- 800 × 800 × 550 mm
- Accuracy under 100 mm
- ±0.15 mm
- Scanning speed
- Up to 12 m/s
| Build volume | 800 × 800 × 550 mm |
|---|---|
| Accuracy | Under 100 mm: ±0.15 mm. 100 mm and over: ±0.15% of the dimension |
| Layer thickness | 0.07-0.25 mm |
| Laser | 355 nm, solid-state frequency-tripled Nd:YVO₄ |
| Beam focus | Dynamic and variable |
| Beam size | 0.12-0.85 mm |
| Scanning speed | 6-12 m/s |
| Resin vat | Replaceable |
| Control software | UnionTech RSCON |
| Data interface | .stl |
|---|---|
| Network | Ethernet, IEEE 802.3, TCP/IP |
| Rated power | 3.0 kVA |
| Systems control | Closed-loop |
| Room temperature | 22-26 °C |
| Relative humidity | Below 40% |
| Machine size | 1750 × 1600 × 2110 mm |
| Machine weight | 1440 kg |
Before it arrives
What the RSPro800 2.0 needs from your site, from UnionTech's published data.
Floor space and weight
The machine measures 1750 × 1600 × 2110 mm and weighs 1440 kg. Check the route in and the floor loading before delivery.
Power
It is rated at 3.0 kVA.
The room
UnionTech specify a room at 22-26 °C with relative humidity below 40%.
Data and network
It takes .stl files over Ethernet.
Software selector
The software that runs it
Included with the printer
UnionTech RSCON
UnionTech's control software. It runs the printer under closed-loop control and takes .stl files from your preparation software. UnionTech pair it with their own pre-processing software and monitoring.
Bought, installed and supported in the UK
Europac 3D supplies UnionTech printers in the UK.
Advice before you buy
Tell us what you make. We will tell you whether the RSPro800 2.0 suits it, then quote on the configuration and materials your work needs.
Installation
We install the printer on your site.
Training
We train your operators to run the printer and its software.
Service and support
Support after installation comes from Europac 3D in the UK, backed by UnionTech.
RSPro800 2.0 questions
How accurate is the RSPro800 2.0?
UnionTech quote ±0.15 mm on parts under 100 mm and ±0.15% of the dimension on larger parts.
Is it fast enough for production?
UnionTech built it for speed without losing precision. It scans at up to 12 m/s. It suits large single parts and high-volume batches of small ones.
Can it run different resins?
Yes. It has an open material system, including high-strength, heat-resistant and transparent resins. We supply Somos grades for UnionTech systems.
Is it easy to maintain?
UnionTech point to the replaceable resin vat, the stable frame plus the monitoring as what keeps operation and maintenance simple.
Who installs and supports the RSPro800 2.0 in the UK?
Europac 3D. We supply, install and support UnionTech printers in the UK, as well as training your operators.
Compare with
| UnionTech RSPro800 2.0 | UnionTech RSPro800 X | UnionTech RSPro600 2.0 | |
|---|---|---|---|
| Price | POA | POA | POA |
| Build volume | 800 × 800 × 550 mm | 800 × 800 × 550 mm | 600 × 600 × 500 mm |
| Accuracy, parts under 100 mm | ±0.15 mm | ±0.1 mm | ±0.1 mm |
| Layer thickness | 0.07-0.25 mm | 0.05-0.25 mm | 0.05-0.25 mm |
| Lasers | 355 nm | 4 × 355 nm | 355 nm |
| Scanning speed | 6-12 m/s | 2.5-12.8 m/s | 6-10 m/s |
| Machine weight | 1440 kg | 1693 kg | 1490 kg |
See the RSPro800 2.0 before you decide
Tell us what you make and we will arrange a demonstration. Or send us a part: we will tell you which printer suits it. We will print it for you if none is worth buying yet.
