Innovative entry level plug and play desktop SLA printer for the jewellery market
Range update (August 2026): the XFAB 2000 is a previous-generation DWS system and no longer features in DWS’s current range. We continue to support installed machines — ask us about the current equivalent, the DW 028XLHR, DWS’s current desktop printer for jewellery and fashion accessories, or request a quote for the latest range.

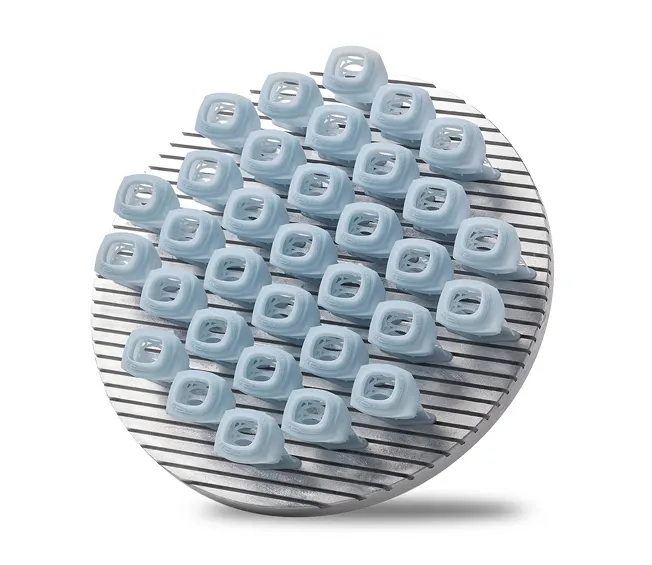

Equipped with the same class leading technologies of the DWS professional range of 3d printers, the XFAB 2000 produces highly detailed accurate and precise parts suitable for small goldsmiths and designers looking to introduce innovative technology processes alongside traditional methods. It is ideal for the production of vulcanised rubber mouldings such as cuff inks, zip pullers, eyewear, keychains, studs, broaches and other pieces for direct casting.
The extremely user friendly software makes loading jobs simple and easy, while the specially designed material cartridges allow for quick, ‘mess free’ installation.
180 x 180mm Cylindrical Build Volume
Cylindrical build volume creates 20% more room on the build platform
5 Jewellery Materials Available
Range of materials available for direct casting and mouldings
Plug And Play
Plug and Play desktop system for fast easy use in office environments
BluEdge Laser
Utilising technology for the professional range the Bluedge produces smooth accurate and detailed parts.
Plug And Play Desktop Jewellery 3D Printer
Get Me A QuoteDownload Brochure
Extensive Material Options
The XFAB 2000 has 5 different jewellery material options which are developed in house by the DWS R&D team. The raw materials cartridges come in easy to install bottles that make material change over quick and easy without making a mess. The 180mm cylindrical print volume is an excellent size for small production runs.
Direct Casting
FUSIA 444
Fusia 444 is a cutting-edge wax-like material for casting applications. Easy to burn out, the material is versatile and was developed for any kind of design model, from thin to thick thickness, from detailed models to extremely smooth surfaces.
Aesthetical Models
PRECISA 779
Precisa 779 is a rigid opaque material, in gray colour. It is precise and accurate and suitable for the realization of prototypes, toys, high detailed models, marketing samples and models for silicon molds.
High Temperature And Moulding
Therma 289
Therma 289 is a light green nano-ceramic material. It is ideal for models that require high thermal resistance tesingt and high definition models for vulcanized rubber molds.
THERMA 294
Therma 294 is a light blue nano-ceramic material. It was developed to be resistant and rigid and it is suitable for vulcanised rubber moulds. It can be used also for thermal resistance tests and high definition models.
Technical Specifications
| Feature | XFAB 2000 | XFAB 2500 HD | XFAB 3500 HD |
|---|---|---|---|
| Build Envelope | 180 X 180mm cylindrical Volume | 180 X 180mm cylindrical Volume | 140 x 140 x 180mm |
| Laser Source | Solid State BluEdge® BE-1300X | Solid State BluEdge® BE-1300X | Solid State BluEdge® BE-1300X |
| Scanning Method | Galvanometer | Galvanometer | Galvanometer |
| Layer Thickness | 0.010-0.100mm | 0.010-0.100mm | 0.010-0.100mm |
| Machine Size (W x D X H) | 400 x 606 x 642 mm | 400 x 606 x 642 mm | 400 x 606 x 742 mm |
| Operating System | Windows 7 or Higher | Windows 7 or Higher | Windows 7 or Higher |
| Protocol | USB | USB | USB |
| Operating Temperature And Humidity | 20°-25°C / 60% | 20°-25°C / 60% | 20°-25°C / 60% |
| Power (Nominal) | 24V DC with AC 240/100V / 50-60 Hz external supplier included | 24V DC with AC 240/100V / 50-60 Hz external supplier included | 24V DC with AC 240/100V / 50-60 Hz external supplier included |
| Input File Format | stl,.slc,.nauta,.fictor,.mkr,.3dm,.3ds,.ply,.obj | stl,.slc,.nauta,.fictor,.mkr,.3dm,.3ds,.ply,.obj | stl,.slc,.nauta,.fictor,.mkr,.3dm,.3ds,.ply,.obj |
Current DWS Equivalent — DW Line Desktop Printers
Specifications from dwssystems.com, August 2026.
| Feature | DW 028XLHR | DW 029MKIII / HR |
|---|---|---|
| Technology | Laser Stereolithography (SLA) | Laser Stereolithography (SLA) |
| Working Area | 100 x 100 x 100 mm | 170 x 170 x 200 mm |
| Laser Source | Solid State BlueEdge® | Solid State BlueEdge® |
| Layer Thickness / Resolution | 0.010 - 0.100 mm (material dependent) | Standard version 40 micron; HR version 20 micron |
| Scanning Method | Galvanometer | Galvanometer |
| Software Included | Nauta®+ and Fictor® | Nauta®+ and Fictor® |
| Machine Size (W x D x H) | 380 x 515 x 733 mm | 610 x 660 x 1375 mm |
| Weight | 56 kg | — |
| Power Supply | AC 230 / 115 V, 50-60 Hz | AC 230 / 100-240 V, 50-60 Hz |
| Electrical Consumption | 400 W | 80 W typical / 140 W peak |
