HeyGears resins

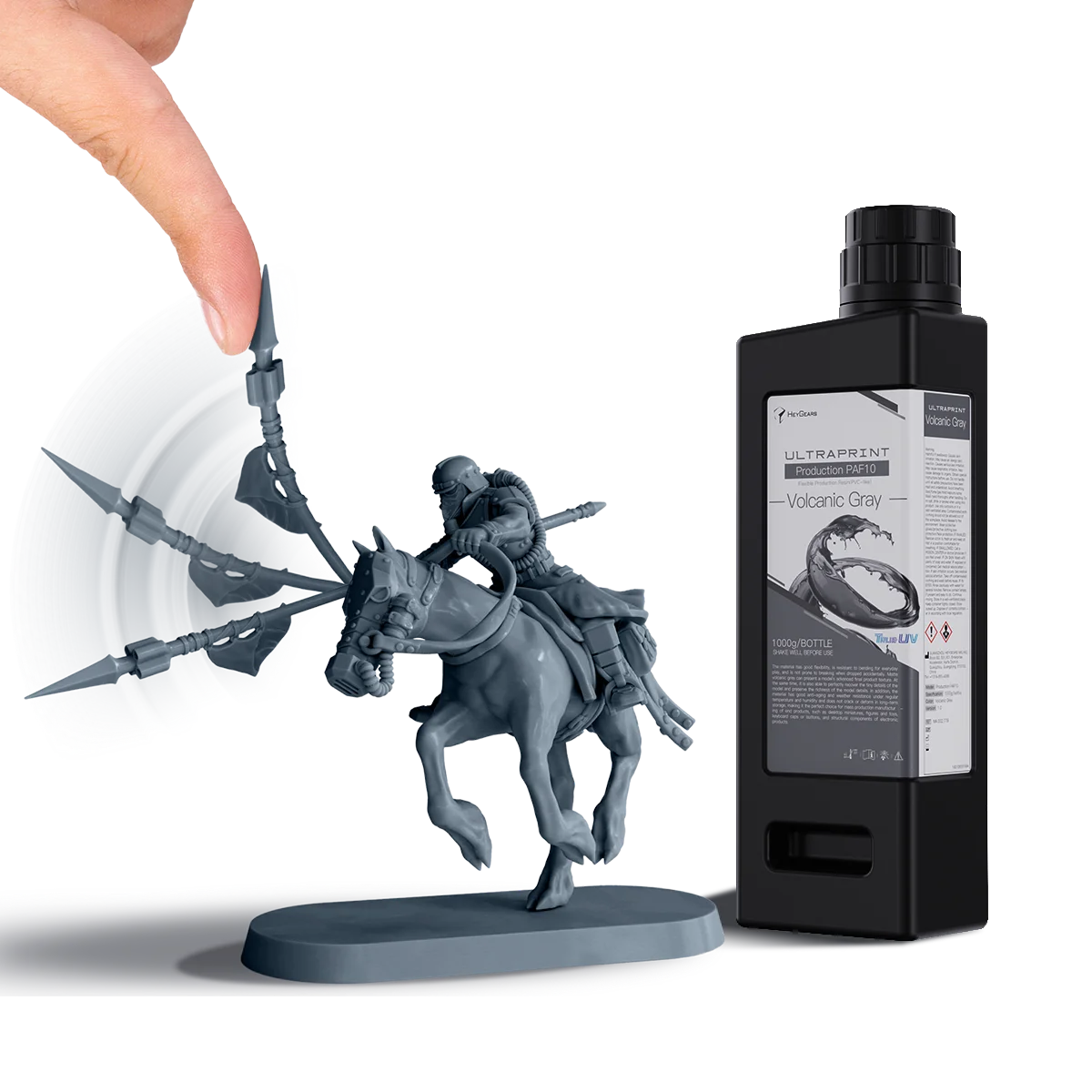

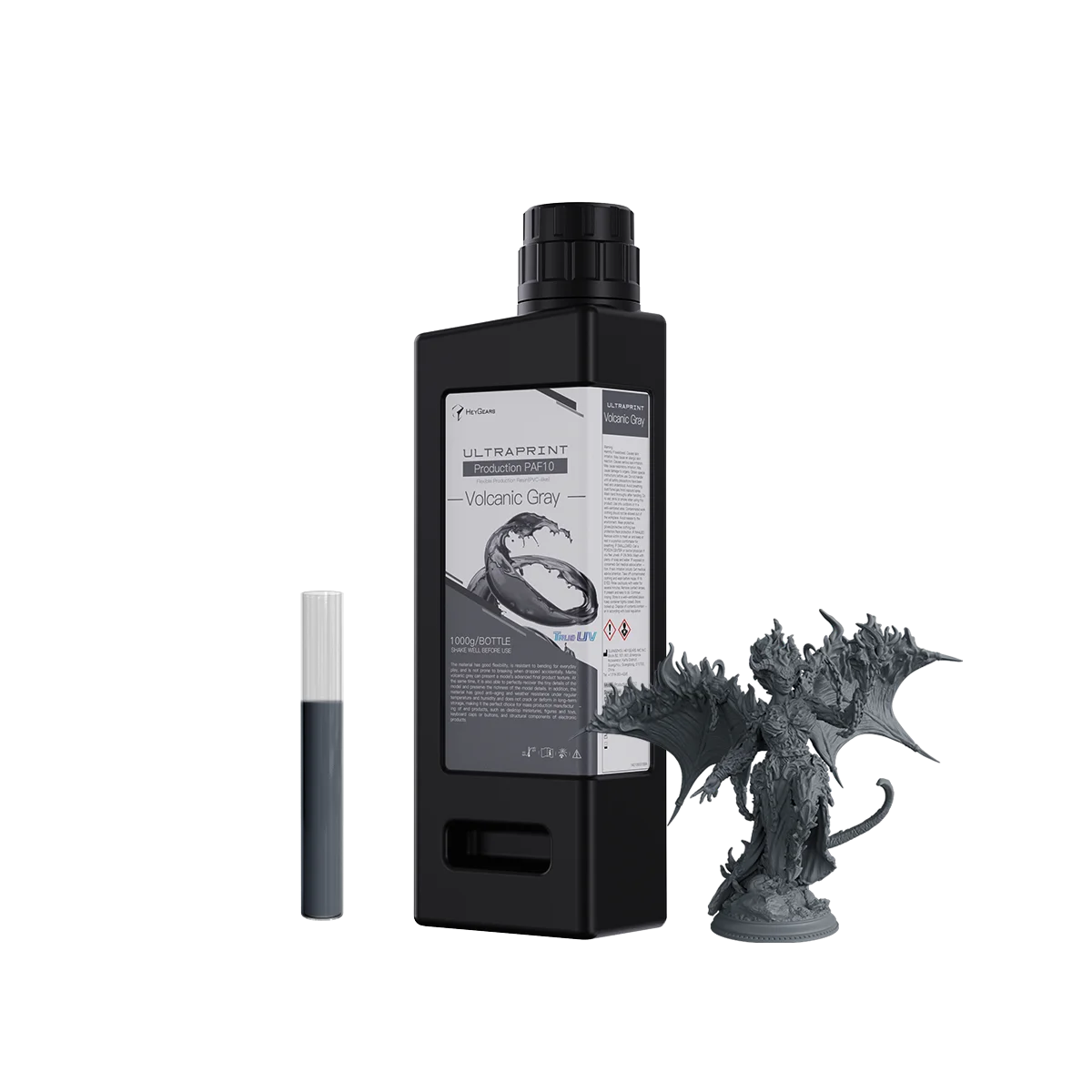

HeyGears UltraPrint PAF10 Flexible Production Resin
Durable, flexible, PVC-like production resin with good breakage resistance. Also offered clear, at 82% light transmittance and 30% elongation at break.
More from HeyGearsProperties
Figures as HeyGears publish them, checked on heygears.com in October 2026. They are HeyGears Lab averages with a deviation of ±10%. Rows marked (data sheet) come from the HeyGears technical data sheet.
- Colours
- Volcanic Grey, Clear
- Bottle
- 1000 g
- Flexural strength
- 39 MPa (Volcanic Grey), 40 MPa (Clear)
| Colours | Volcanic Grey, Clear |
|---|---|
| Bottle | 1000 g |
| Flexural strength | 39 MPa (Volcanic Grey), 40 MPa (Clear) |
| Flexural modulus | 930 MPa (Volcanic Grey), 1200 MPa (Clear) |
| Tensile strength | 28 MPa (Volcanic Grey), 32 MPa (Clear) (data sheet) |
| Elongation at break | 46% (Volcanic Grey), 34% (Clear) |
| Impact strength, notched | 52 J/m (Volcanic Grey), 30 J/m (Clear) |
| Work of fracture | 5390 J/m² (Volcanic Grey), 4780 J/m² (Clear) |
|---|---|
| Heat deflection temperature | 38°C (Volcanic Grey), 40°C (Clear) |
| Hardness | 75 Shore D |
| Viscosity | 550 mPa·s (Volcanic Grey), 700 mPa·s (Clear) |
| Water sorption | 1.6% (Volcanic Grey), 1% (Clear) |
| Light transmittance | 82% (Clear) |
Questions we get asked
Pricing and availability
Prices shown are UK benchmarks and are confirmed on enquiry. Tell us the configuration you need. We will quote it, including resin, post-processing and delivery.
Buying in the UK
UK company, UK demonstrations, UK-based buying advice — backed by HeyGears’ global technical support and knowledge base. Speak to us before you buy and arrange a demonstration with your own parts.
