HeyGears · Post-processing

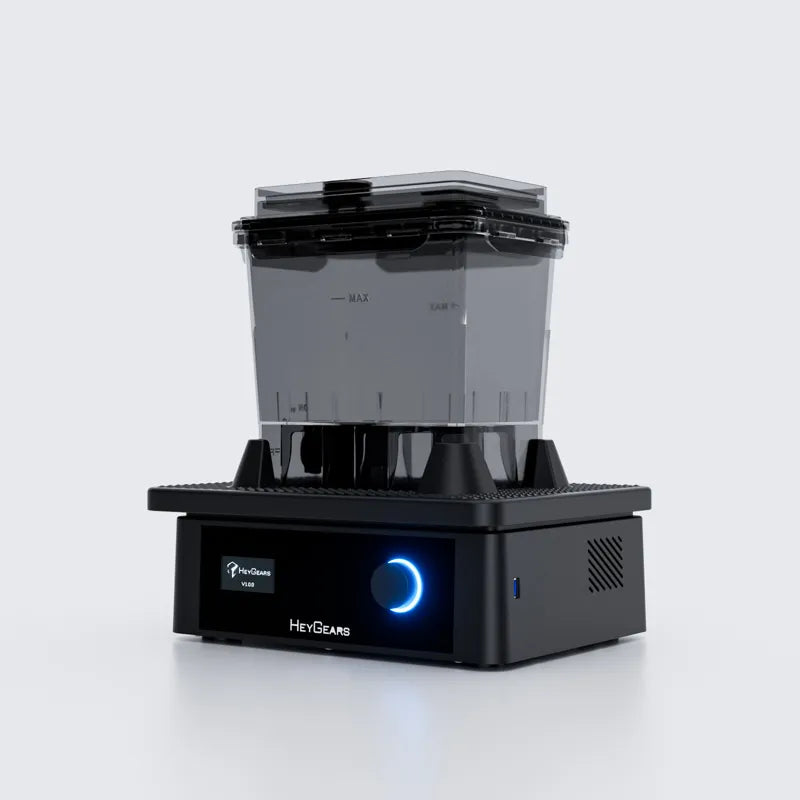

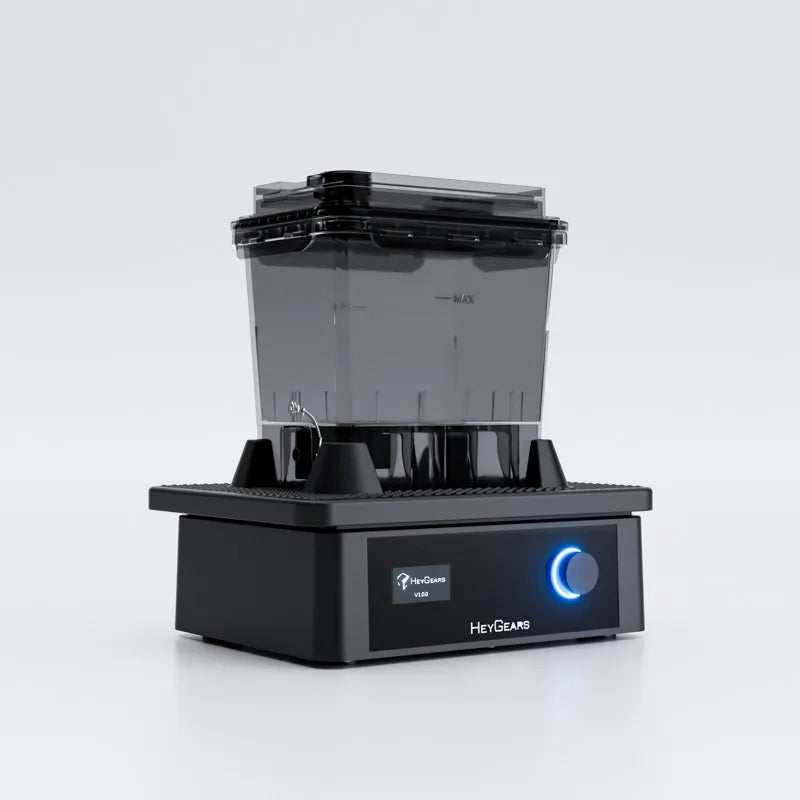

HeyGears UltraCraft Wash
The wash station built for the HeyGears Reflex workflow. Vibration-based washing cleans uncured resin from a print in two to four minutes, with the washing agent sealed in its own box so you never handle it.
More from HeyGears- Washing time
- 2 to 4 min
- Washing volume, mm
- 198 × 123 × 150
- Less washing agent
- 80%
- Supplied and supported in the UK by 3D Printworx
- Part of the HeyGears Reflex one-stop production platform
Why the UltraCraft Wash
One-click deep cleaning, integrated with the Reflex one-stop production platform.
Vibration-based washing
The washing box vibrates on the base, lifting uncured resin from the surface of the print. HeyGears rates it five times as efficient as ultrasonic cleaning.
Deep cleaning with 80% less washing agent
Washing is faster yet uses less washing agent. The collected agent can be drained off for a second rough wash.
No contact with the washing agent
The agent stays sealed in its lidded washing box. Two boxes come with the Wash, stacking neatly for storage.
Single-dial control
Click, rotate or press and hold. One dial runs the Wash, easy to use in any condition.
Specification
Specifications from heygears.com.
- Washing time
- ≤4 min
- Washing volume
- 198 × 123 × 150 mm
- Weight
- 8 kg
| Washing volume | 198 × 123 × 150 mm |
|---|---|
| Washing agent | Ethanol (≥95%) |
| Washing time | ≤4 min |
| Connectivity | USB drive, Wi-Fi |
| Dimensions | 351 × 272 × 168 mm |
| Weight | 8 kg |
|---|---|
| Voltage | 100–240 V AC |
| Rated power | 80 W |
| Interface languages | English, Simplified Chinese, Japanese |
| Compatible resins | PAU10, PAT10, PAM10, PAP10, PAH10, PAWR10, PARP10, PAS10 |
In the box
- UltraCraft Wash base
- Washing box × 2
Questions we get asked
What washing agent does it use?
HeyGears specifies ethanol at 95% or stronger for the UltraCraft Wash.
What comes with it?
The Wash base plus two washing boxes. Extra boxes are sold as a set of two.
Which 3D printers does it work with?
HeyGears lists it for all Reflex series 3D printers, including the Reflex 2 and Reflex 2 Pro.
