HeyGears · Function add-on

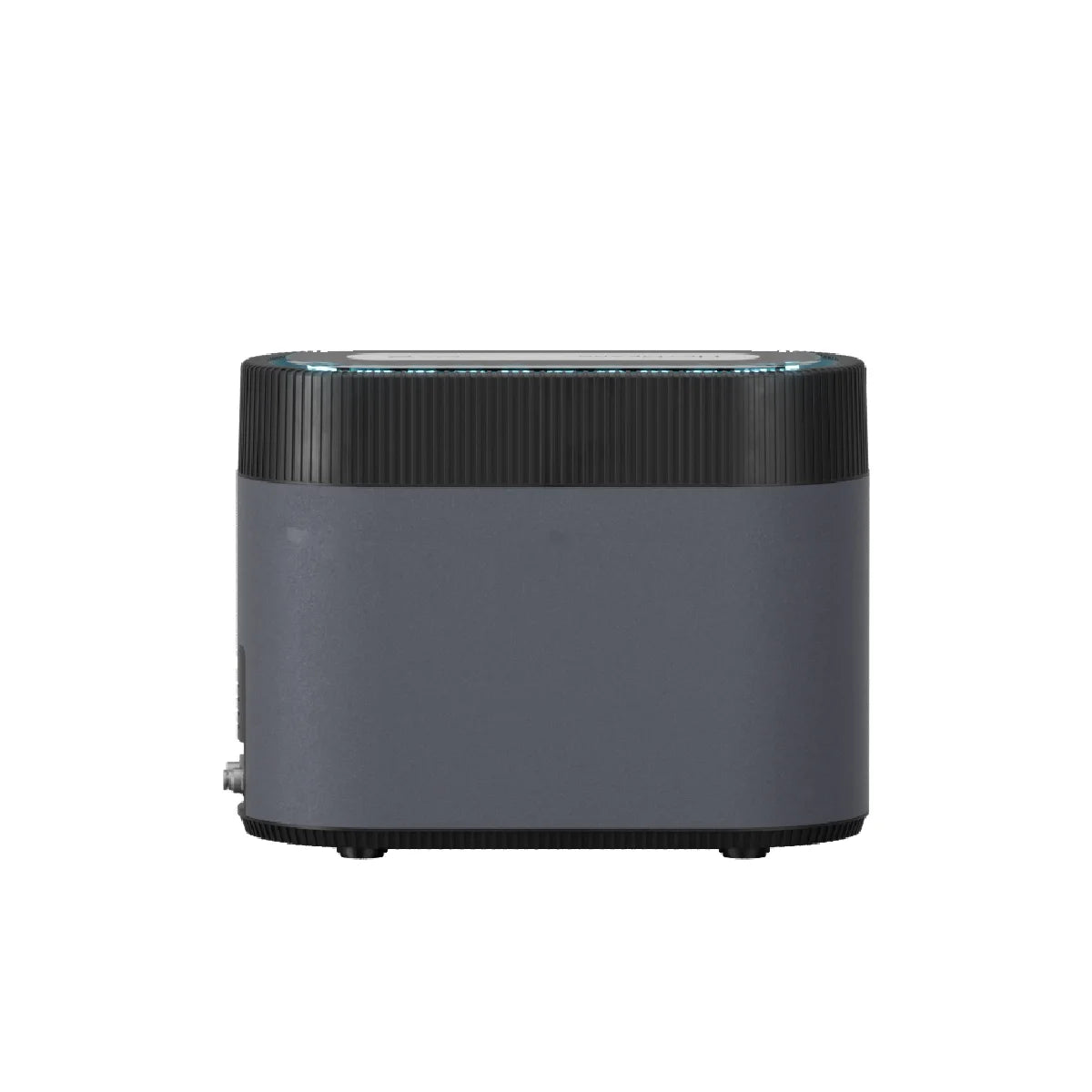

HeyGears Pulsing Release Module 2 Kit for Reflex 2 / 2 Pro
HeyGears' Pulsing Release Module 2 kit for the Reflex 2 and Reflex 2 Pro. More precise pulse control cuts the peeling force by about 50%, for finer surfaces on fewer supports.
More from HeyGears- Less peeling force
- About 50%
- Fewer supports
- 20% to 60%
- Support critical angle
- 15°
- Supplied and supported in the UK by 3D Printworx
- Part of the HeyGears Reflex one-stop production platform
Why the Pulsing Release Module 2
Upgraded for more precise pulse control on the Reflex 2 series.
Improved surface quality
Ultra-fine pillars of 1 mm or less print with better surfaces. Thin walls of 3 mm or less show fewer abnormal layer lines.
20% to 60% fewer supports
Lower peeling force means fewer supports are needed, improving resin use while prints still succeed.
Less time sanding
The total area of support contact points falls by 25% to 54%, cutting the time needed for sanding or polishing.
Critical angle as low as 15°
A lower support critical angle needs fewer supports with smaller contact areas, streamlining post-processing.
Specification
From heygears.com and HeyGears' own store.
- Peeling force
- About 50% less
- Rated power
- 25 W
- Weight
- 3 kg
| Input voltage | 24 V DC |
|---|---|
| Rated power | 25 W |
| Module dimensions | 310 × 148 × 235 mm |
| Weight | 3 kg |
| Fits | Reflex 2, Reflex 2 Pro |
| Resin tank | Reflex 2 Series Pulsing Release Resin Tank |
| Resins that need it | PAC10, PAE10, PAU20, PAH270 |
| Not compatible | PAWW10, PAWW20 |
In the box
- Pulsing Release Module 2 host
- Reflex 2 Series Pulsing Release Resin Tank
Works with
For the original Reflex or the Reflex Turbo, see the Pulsing Release Module.
Questions we get asked
Which resins need the module?
HeyGears lists PAC10, PAE10, PAU20 and PAH270 as resins that must be printed with the Pulsing Release Module 2.
Which resins can't be used with it?
The water-washable resins, PAWW10 and PAWW20.
Does it fit the original Reflex?
No. The Reflex and Reflex Turbo take the original Pulsing Release Module.
