HeyGears · Function add-on
HeyGears Pulsing Release Module Kit for Reflex

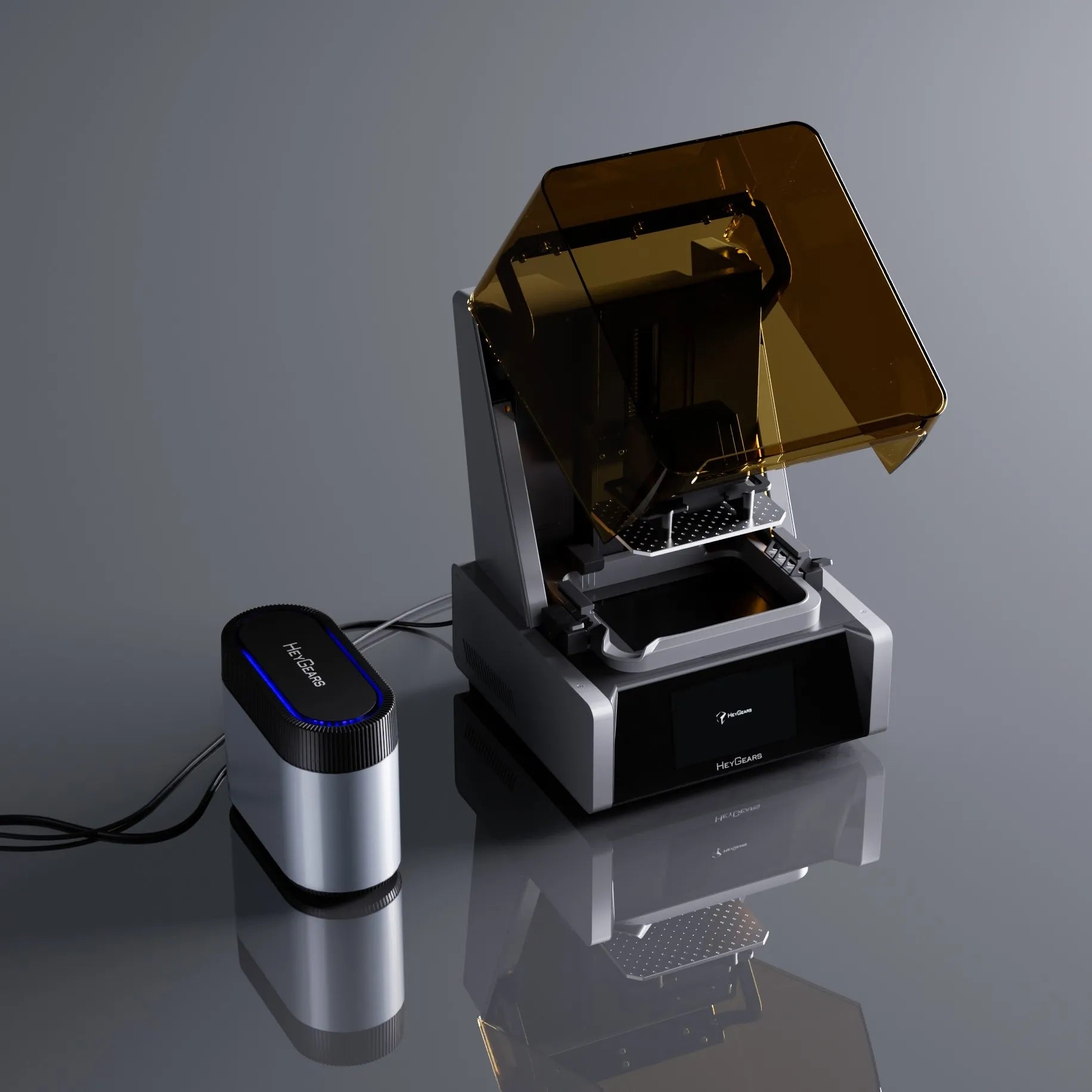

HeyGears' Pulsing Release Module for the Reflex and Reflex Turbo, with its pulsing release resin tank. Periodic inflation of the release film cuts the peeling force by about 50% on every layer.
More from HeyGears- Less peeling force
- About 50%
- Fewer supports (PAU10)
- 25%
- Faster with some resins
- Up to 20%
- Supplied and supported in the UK by 3D Printworx
- Part of the HeyGears Reflex one-stop production platform
Specification
From heygears.com and HeyGears' own store.
- Peeling force
- About 50% less
- Input
- 24 V DC
- Size
- 310 × 148 × 235 mm
| Input | 24 V DC |
|---|---|
| Power | 24 W |
| Size | 310 × 148 × 235 mm |
| Fits | Reflex, Reflex Turbo |
| Resin tank | Reflex Pulsing Release Resin Tank |
| Resins that need it | PAC10, PAE10, PAU20 |
| Not compatible | PAWW10, PAWW20 |
| Thin walls | Not recommended for walls 3 mm or thinner |
In the box

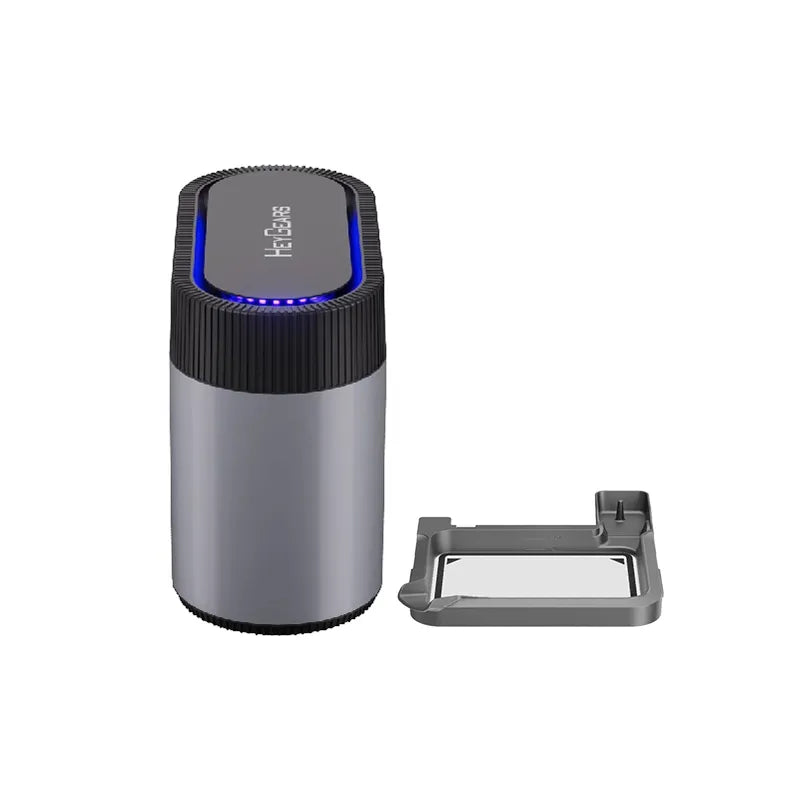

- Pulsing Release Module host
- Reflex Pulsing Release Resin Tank
Works with
For the Reflex 2 series, see the Pulsing Release Module 2.
Questions we get asked
Which resins need the module?
HeyGears lists PAC10, PAE10 and PAU20 as resins that must be printed with the Pulsing Release Module.
Which resins can't be used with it?
The water-washable resins, PAWW10 and PAWW20.
Does it fit the Reflex 2?
No. The Reflex 2 and Reflex 2 Pro take the Pulsing Release Module 2.
