3D Printers
Uniontech Large Volume SLA RSPro Series
Large-format industrial SLA up to a 2.1 m build — full-size parts, props and patterns in one piece, on a completely open resin platform.
UNIONTECH SLA RS PRO SERIES
INDUSTRIAL LARGE VOLUME SLA ADDITIVE MANUFACTURING
3D printing of prototypes, tools and production parts has never been so easy with the RSPro range of large volume SLA printers from Uniontech.The RSPro range of machines deliver accurate parts with excellent surface quality ideal for low to medium part runs at a lower cost per unit.
Open Source Application Driven Additive manufacturing
Produce exact plastic and composite material parts without the limitations of tooling by using Uniontech’s open source 3D printers. Close collaboration with leading material suppliers such as DSM Somos allow for application driven installations that meet the exact customer requirements with out the constraints of closed systems.
High quality components sourced from around the world such as Panasonic, Spectra Physics, DSM and Advanced Optowave
Granite Recoater Frame helps create high quality parts with excellent sidewall properties and small details
Open Source platform with regards to materials allows for application driven sales
Isotropic strength in XYZ
Scanning Speed of 12-15 m/s
High quality mechanical build
Large Voume SLA 3D Printing up to 2100mm In X Axis
Granite Recoater - best in class deatails and side wall quality
Wide Varitety of Open Source 3d print materials
High resolution with layers down to 0.05mm
Full UK Service and Support from Europac3D
Up to 3 Lasers on RS PRO 2100
Large Volume SLA
RS Pro 600
Mid Range Industrial 3D prinitng
600 x 600 x 500 mm
3D printing Volume
Produce industrial grade rapid prototypes with a broad range of open source materials from DSM Somos.
RS Pro 800
Production 3d printing of end-use parts and rapid prototypes.
800 x 800 x 550 mm
3D printing Volume
High throughput and superior quality partswith the Unionetch RS Pro 800 Series
RS Pro 1400
Large volume additive manufcaturing
1400 x 700 x 500 mm
3D printing Volume
Produce large components in a single piece with the RS Pro 1400 large volume SLA machine. Dual Laser machine.

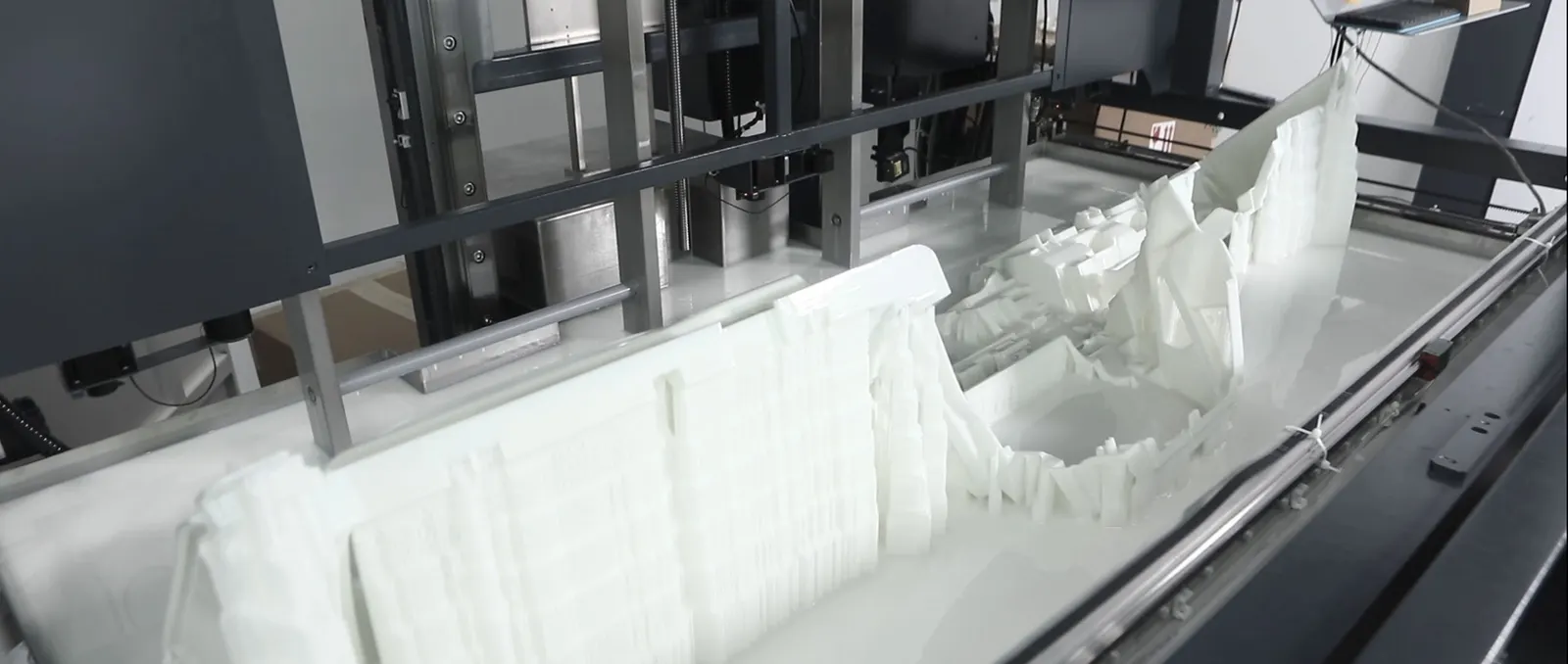

RS Pro 2100
Largest SLA 3D Printer
2100 x 700 x 800 mm
3D printing Volume
Largest SLA 3D printer with 3 lasers and 3 galvanometers.
LARGEST VOLUME SLA 3D PRINTER
SLA MATERIALS
SOMOS ADDITIVE MATERIALS FOR UNIONTECH
DSM Somos materials have been 25 years in the making, a deep understanding of the complex and demanding applications that different industries demand has created class leading high performance materials for many different industry verticals such as tooling, investment casting, high temperature or end-use parts.
Leading SLA System on the market
Uniontech’s unique approach to the market allowing a free and open 3d printing system allows for Europac3D to bring together an SLA printer that delivers the highest quality parts that are precise and have extremely good sidewall quality. The combination of Uniontech build quality and Somos high performance materials delivers a system that raises the bar in the SLA market.
APPLICATIONS
Automotive

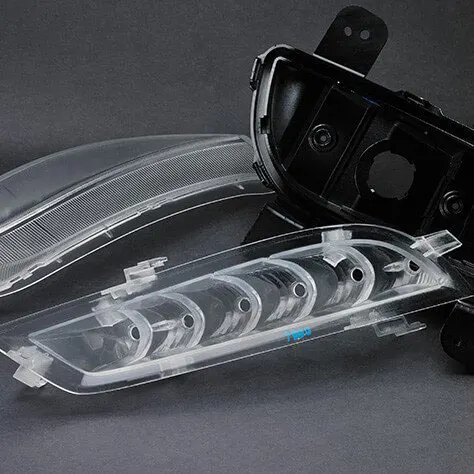

Print extremely large automotive rapid prototypes in one single piece, included car bumpers, grills and dashboards.
Comusmer Goods
Rapid Prototype or create tools with the superior accuracy and surfae finish that Uniontech SLA technology provides.
Healthcare And Medical
Create customisedmedical devices that fit the human body perfectly including orthotic and dental applications.
3D Print Service Bureaus
SLA is an excellent choice for service bureaus, due to the high demand for rapid prototypes with extremely high quality surface finish and accuracy.
Formula 1 and Motorsport
Produce models with high quality super smooth surfaces up to large volumes, ideal for wind tunnel applications.
Additive Manufacturing
Produce large volumes of end use parts that can be manufatcured directly by SLA technology.
Polydevs
3D Print Preparation Software
Polydevs Software for a cost effective software for all you 3D print prepeartion needs
Repair STL mesh files into solid watertight models.
Create advanced support structure for SLA build strategies
Automatcially nest multiple parts on the print bed for fast build preparation
Create lattice structures to lightweight parts.
Split and cut parts that do not fit on the build platform
Check wall thickness to analyse printability
Fast, reliable and extremely easy to use.
Technical Specifications
| Feature | RSPro 600 | RSPro 800 | RSPro 1400 | RSPro 2100 |
|---|---|---|---|---|
| Build Envelope | 600 x 600 x 500mm | 800 x 800 x 550mm | 1400 x 700 x 500mm | 2100 x 700 x 800mm |
| Accuracy | +/- 25 Microns up to 25.4mm Part +/- 0.1% x L (for parts greater then 25.4mm) | +/- 25 Microns up to 25.4mm Part +/- 0.1% x L (for parts greater then 25.4mm) | L less than 100 mm: ±0.2mm, LGreater than 100 mm: ±0.2% x L | L less than 100 mm: ±0.2mm, LGreater than 100 mm: ±0.2% x L |
| Scanning Speed | 6-10 m/s (12 m/s Max.) | 6-10 m/s (12 m/s Max.) | 6-10 m/s (12 m/s Max.) | 6-10 m/s (12 m/s Max.) |
| Beam Size | 0.12-0.20mm Standard | 0.12-0.20mm Standard | 0.12-0.20mm Standard | 0.12-0.20mm Standard |
| Layer Thickness | 0.05-0.25mm | 0.07-0.25mm | 0.1-0.25mm | 0.1-0.25mm |
| Machine Weight | 1800KG | 2000kg | 2847kg | 5050kg |
| Machine Size (W x D X H) | 1598 x 1612 x 2121mm | 1798 x 1602 x 2118mm | 2882 × 1952 × 2395 mm | 4130 × 2720 × 2770 mm |
| Laser | Solid-state frequency tripled Nd:YVO4 354.7mm wavelength | Solid-state frequency tripled Nd:YVO4 354.7mm wavelength | 2 Lasers Solid-state frequency tripled Nd:YVO4 354.7mm wavelength | 3 Lasers Solid-state frequency tripled Nd:YVO4 354.7mm wavelength |
| Operating System | Windows 7, Windows 10 | Windows 7, Windows 10 | Windows 7, Windows 10 | Windows 7, Windows 10 |
| Protocol | Ethernet, IEEE 802.3 using TCP/IP and NFS | Ethernet, IEEE 802.3 using TCP/IP and NFS | Ethernet, IEEE 802.3 using TCP/IP and NFS | Ethernet, IEEE 802.3 using TCP/IP and NFS |
| Laser Warranty | 5000 hours or 15 months | 5000 hours or 15 months | 5000 hours or 15 months | 5000 hours or 15 months |
| Power (Nominal) | Typically 250 ~ 350 mW (@100kHz) on the target surface of the material under nominal optical path condition | Typically 250 ~ 350 mW (@100kHz) on the target surface of the material under nominal optical path condition | Typically 250 ~ 350 mW (@100kHz) on the target surface of the material under nominal optical path condition | Typically 250 ~ 350 mW (@100kHz) on the target surface of the material under nominal optical path condition |
For more information please get in touch
Key Specifications
A little bit about SLA Stereolithography
SLA is an additive manufacturing process that works by focusing an ultra violet (UV) laser onto a vat of photopolymer resin.
The laser is used to draw a pre-programmed design on to the surface of vat of resin. The UV curable resin is solidified by the laser to build parts layer by layer whilst joining it to the layer below. Once a layer is completed the platform is lowered by amount equal to the depth of one layer. This allows the re-coater blade to sweep across the vat, spreading a layer of fresh resin and the whole process is repeated.
CLICK TO PLAY VIDEO
Works with
Confirmed by us, not inferred from a spec sheet. If yours is not listed, ring and we will check.
- Somos TaurusTough, thermoplastic-like SLA resin — heat tolerant to around 90°C, charcoal grey, our workhorse for end-use parts.View machine →
- Somos PerFORMCeramic-filled, very stiff and heat resistant — the resin for wind-tunnel models and tooling inserts.View machine →
- Somos WaterShed XCNear-clear, ABS-like SLA resin that polishes close to transparent — flow rigs, lenses and see-through parts.View machine →
- Somos ElementLow-ash casting pattern resin that burns out clean — foundry patterns without cutting a tool.View machine →
- Uniontech open-platform resinsCost-effective resin range for open Uniontech platforms — comparable performance to the big-name brands at a significantly lower price per litre. Data sheets being prepared.View machine →
