Industrial Rapid Prototyping & Final Part Production
The HP Jet Fusion 5200 & 5210 series is designed for mid-volume production environments and industrial level OEE yield.
Unique print time and part quality predictability from every build
HP’s most economical system with streamlined mixing of materials & integrated natural cooling units.
Range of thermoplastics materials including PA12, PA11, PA12 with Glass Beads and TPU
No support material required.
Fast build times, at a low cost make the HP Jet Fusion 5200 ideal for production environments.
Fast, reliable and extremely easy to use.
Mid Volume Production Runs
Optimal Yield at Industrial level OEE
Industrial Grade Thermoplastics
High Accuracy, Fine Detail & Sharp Edges
Extremely Fast Continuous Production
Up to 80% recycable material

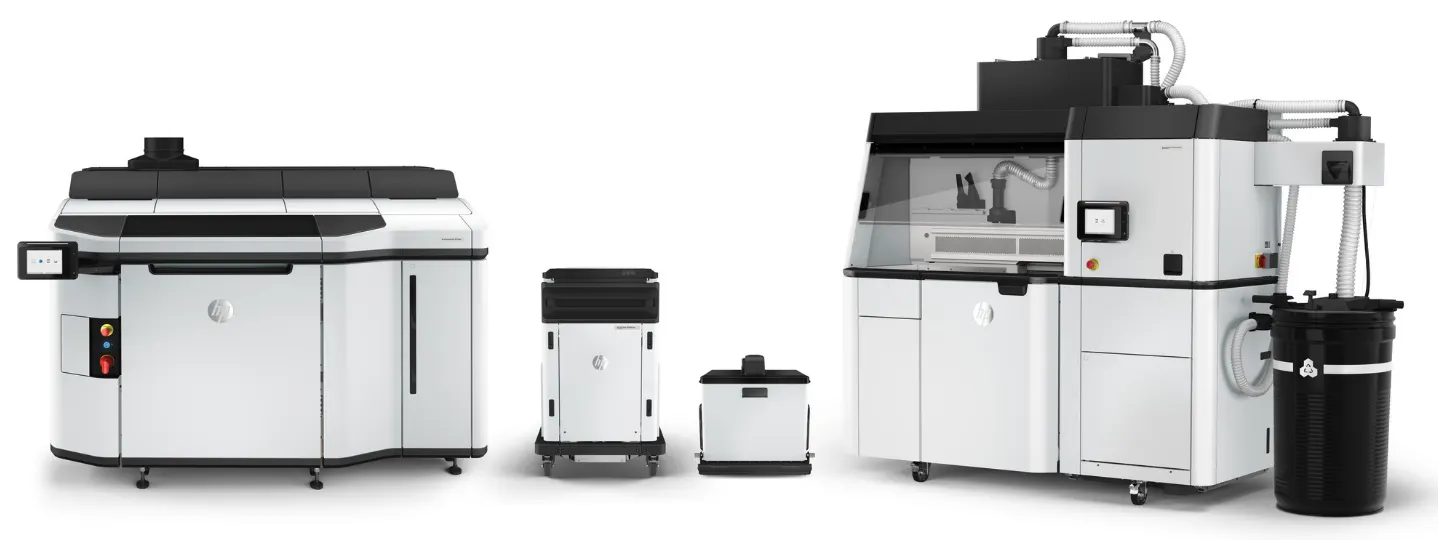

HP JET FUSION 5200 SERIES 3D PRINTERS
1

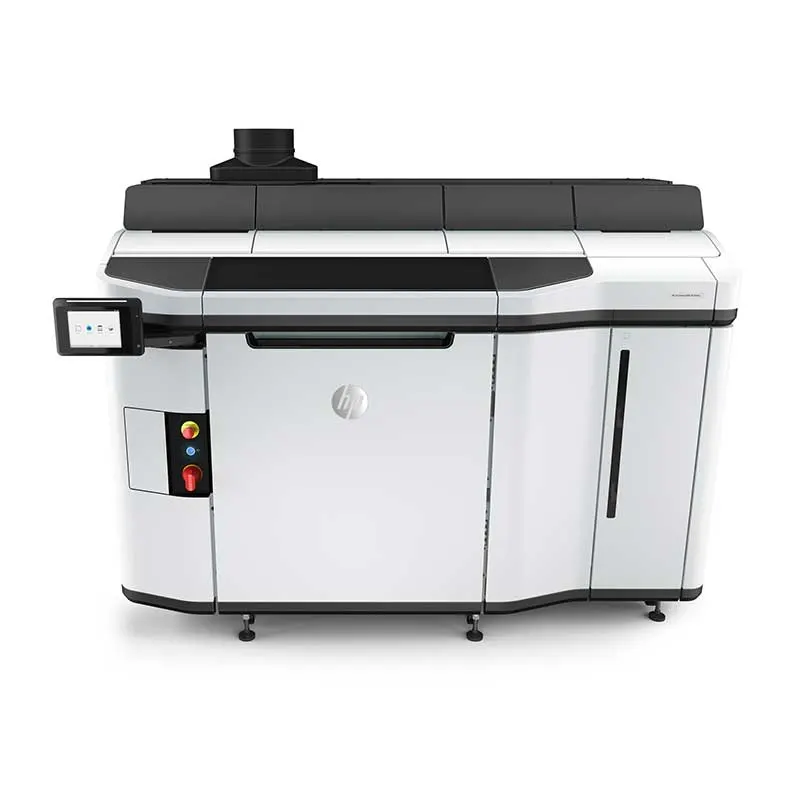

HP 5200 3D PRINTER
The 5200 3d printer from HP represents a breakthrough in economics and manufacturing predictability, designed to target volume production of parts into the many thousands.
2
IMPROVED FUSING LAMP POWER
All new fusing lamps provide the power to fuse a layer in a single pass, allowing for a full build of parts in less than 12 hours.
3
REMOVABLE BUILD UNIT
Multiple build units allows for the removal and immediate reloading of the 3D printer, creating zero downtime and continuous production of parts 24 hours per day.
4
COOLING UNIT
The all new cooling unit which automatically removes a finished print bed and replaces it with a fresh one to minimize downtime.
5
HP PROCESSING STATION
Automatically preload build units with precise mixture of old and fresh material in preparation for the pending builds. Clean parts quickly and efficiently in a clean environment.
Volume Production 3D Printing by Europac3D
Volume 3D Print Manufacturing
MANUFACTURING PREDICTABILITY
Manufacture large batches of components with industrial level OEE (Overall Equipment Effectiveness) and with class leading isotropy, giving maximal strength in X, Y And Z.
Breakthrough Economics
Unlock production opportunities with improved build times, greater reliability and greater throughput with the ability to produce 2 full builds every 24 hours and build yield of 800 parts per week.
New Applications and Markets
Break into new markets with greater levels of repeatable accuracy and best in class economics. Production of parts in PA11, PA12 and TPU increase market opportunities in new sectors.
Software for Production Tracking
Centralized job tracking and production fleet Streamlined workflow and HP’s most economical continuous 3D printing.
3D Process Control Software
MATERIALS
HP 3D High Reusability PA12
Ideal for producing strong, quality parts at the lowest cost per part.
HP 3D High Reusability PA12 Glass Beads
40% glass bead filled thermoplastic material providing stiff functional parts with excellent dimensional stability. Ideal for applications requiring high stiffness like enclosures, housing, fixtures and tooling.
HP 3D High Reusability PA11
Thermoplastic material delivering optimal mechanical properties with superb impact resistance and elongation-at-break, ideal for snap fits, insoles, sports goods, living hinges and more.
TPU – BASF UltrasintTM 3D TPU01
Bridging the gap between plastics and rubbers the BASF Ultrasint is an excellent choice for those applications requiring high flexibility and shock absorption.
3D PRINTED ORTHOTICS

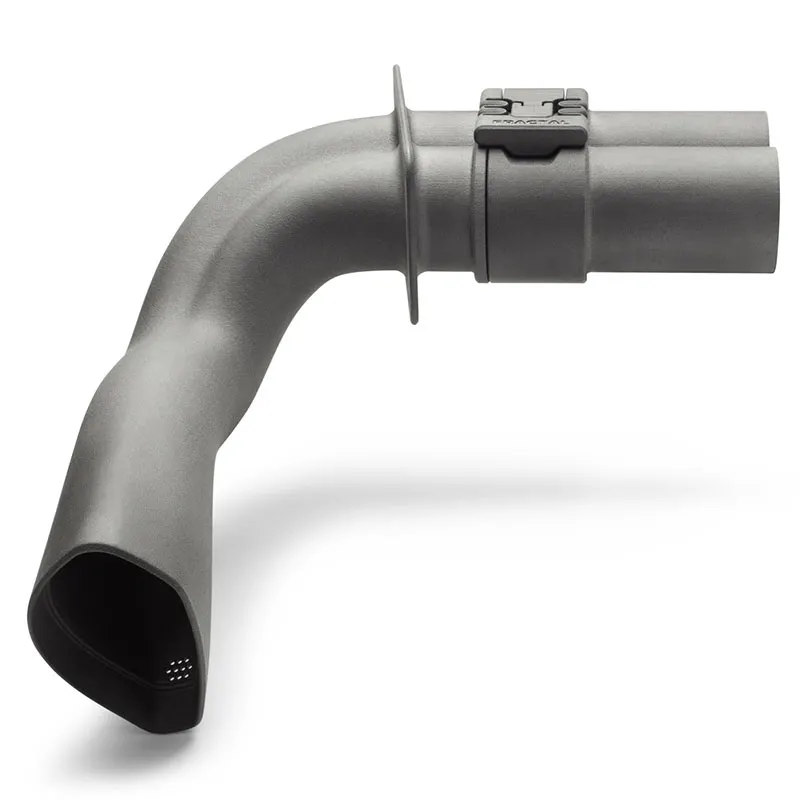

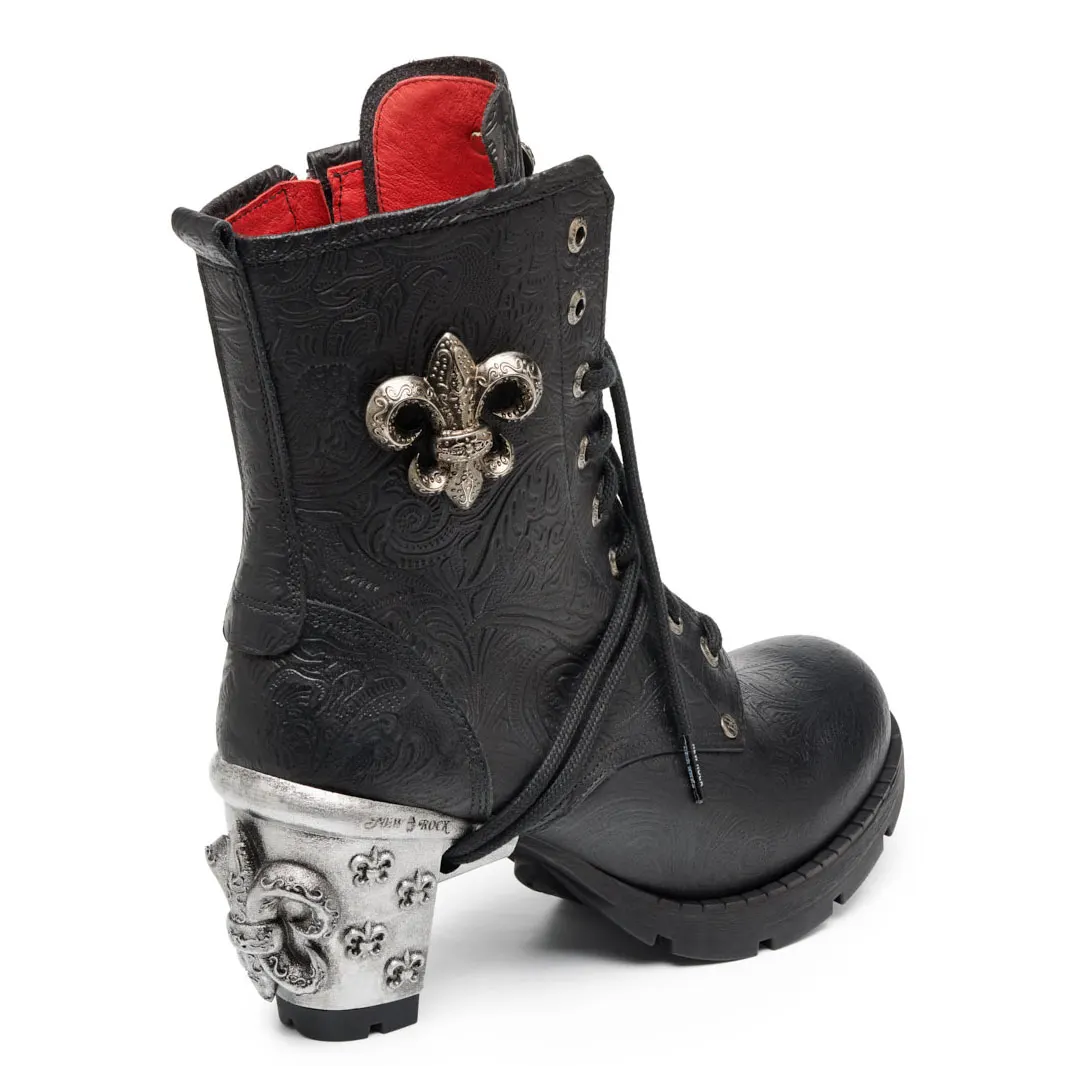

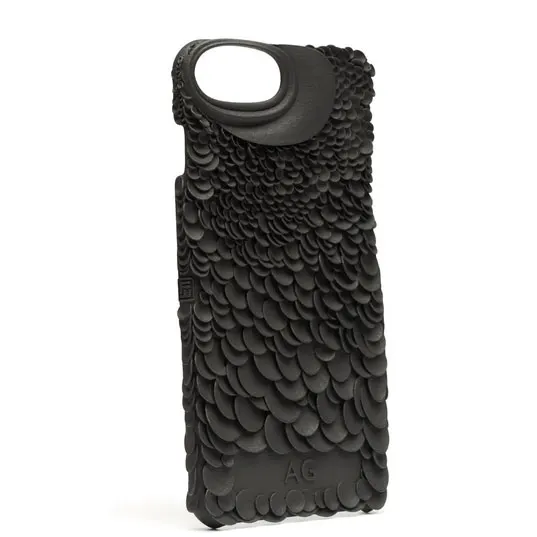

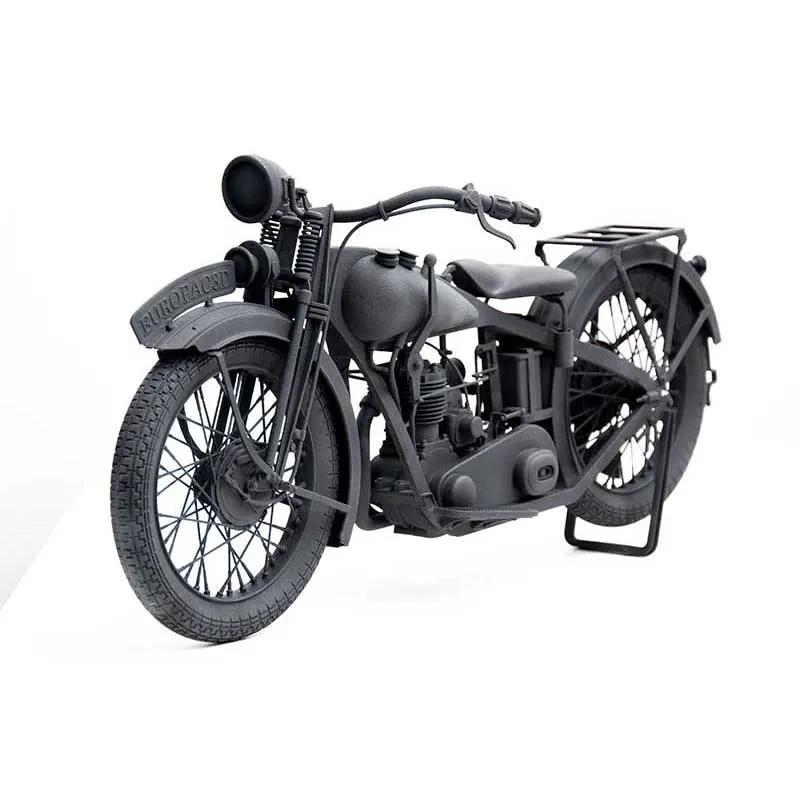

END USE 3D PRINTED CONSUMER PRODUCTS

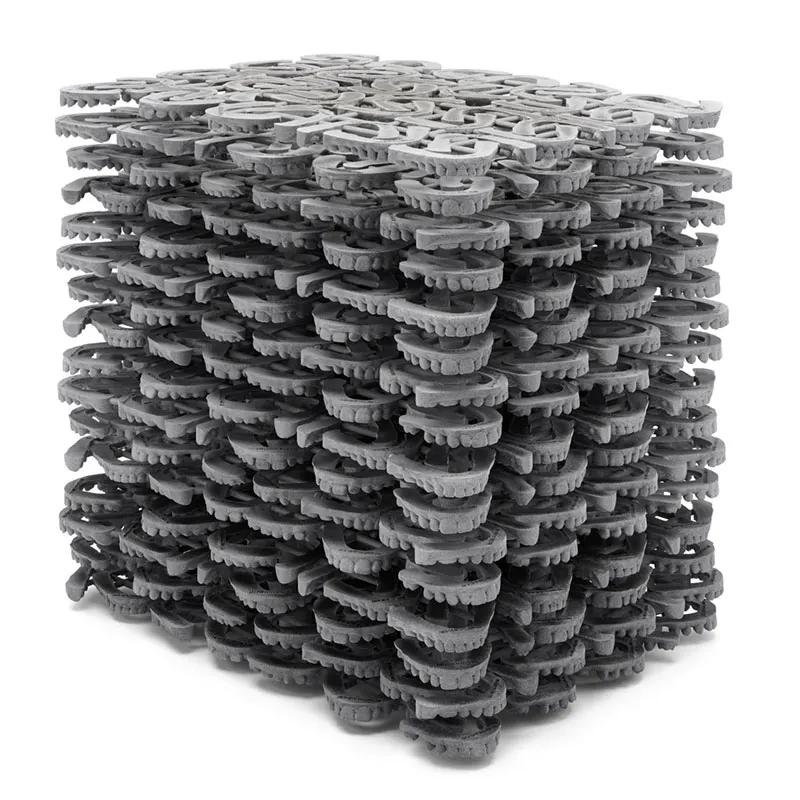

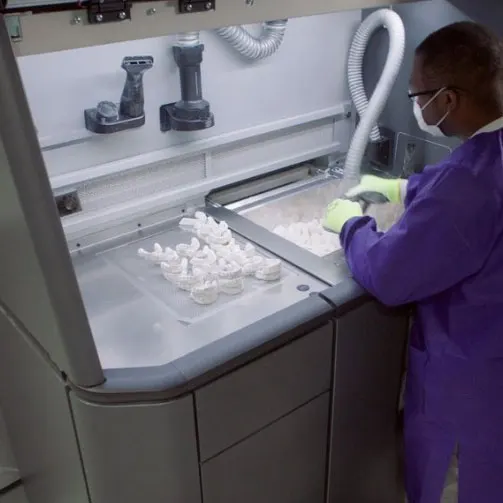

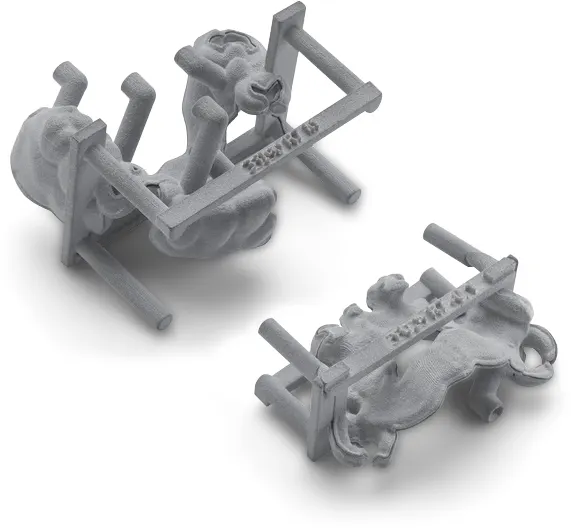

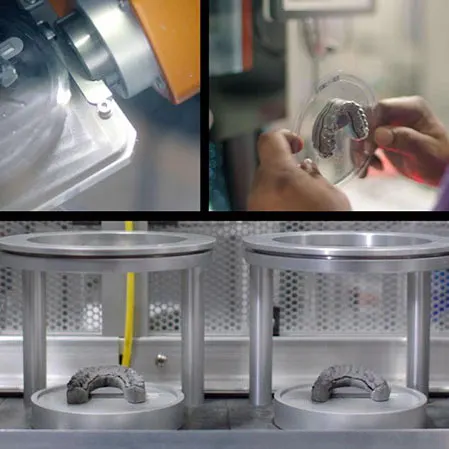

3D PRINTED DENTAL MODELS AND ALIGNERS

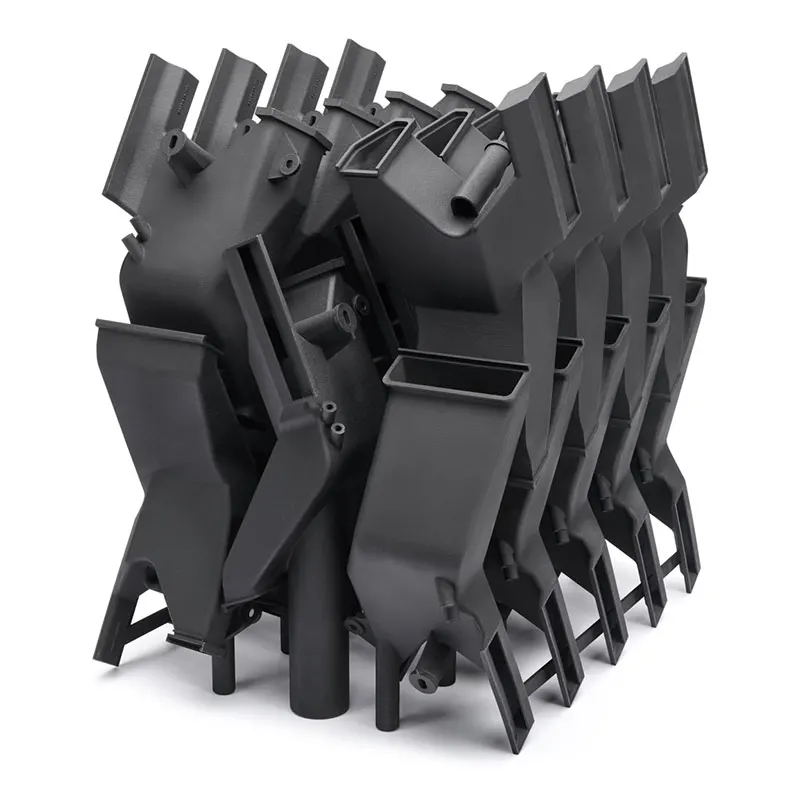

LARGE VOLUME INDUSTRIAL DIGITAL MANUFACTURING

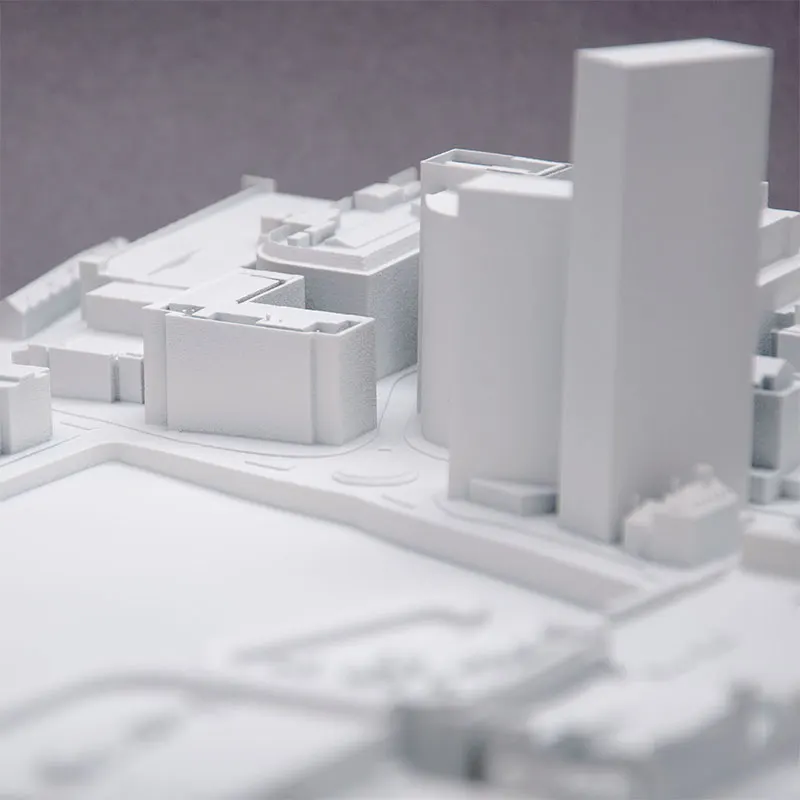

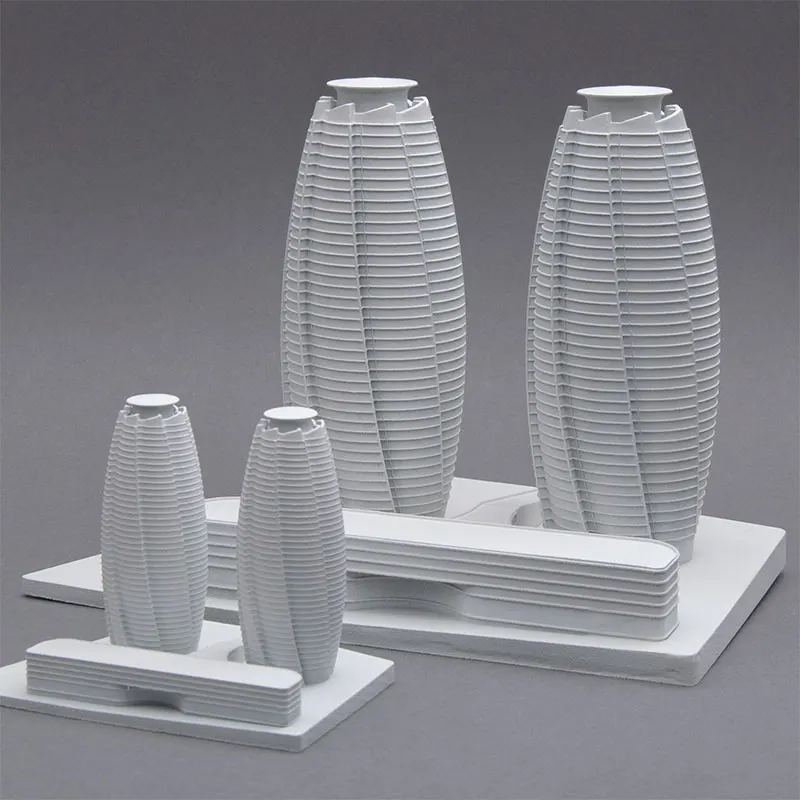

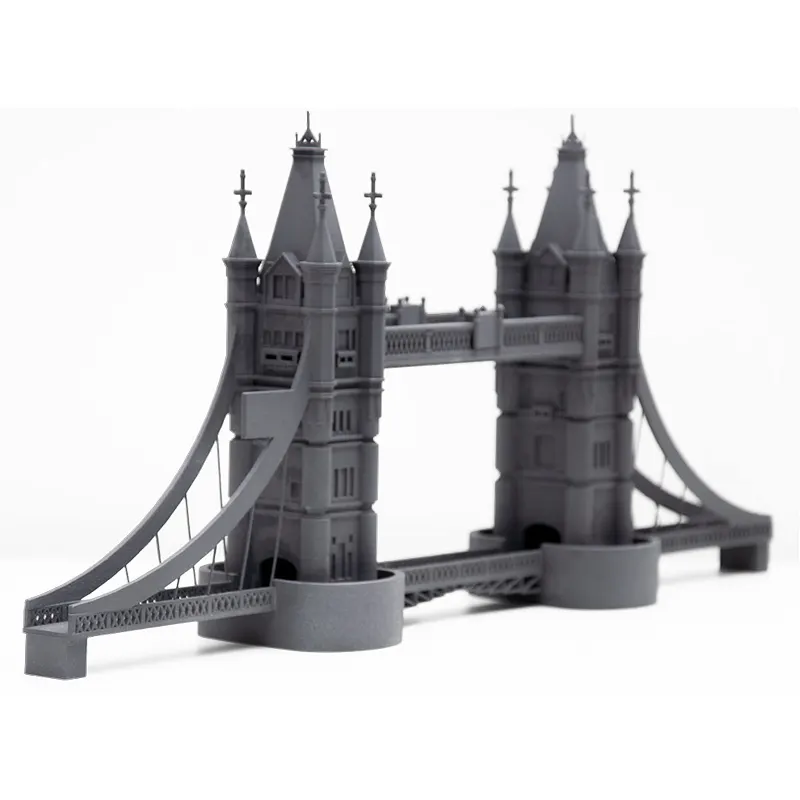

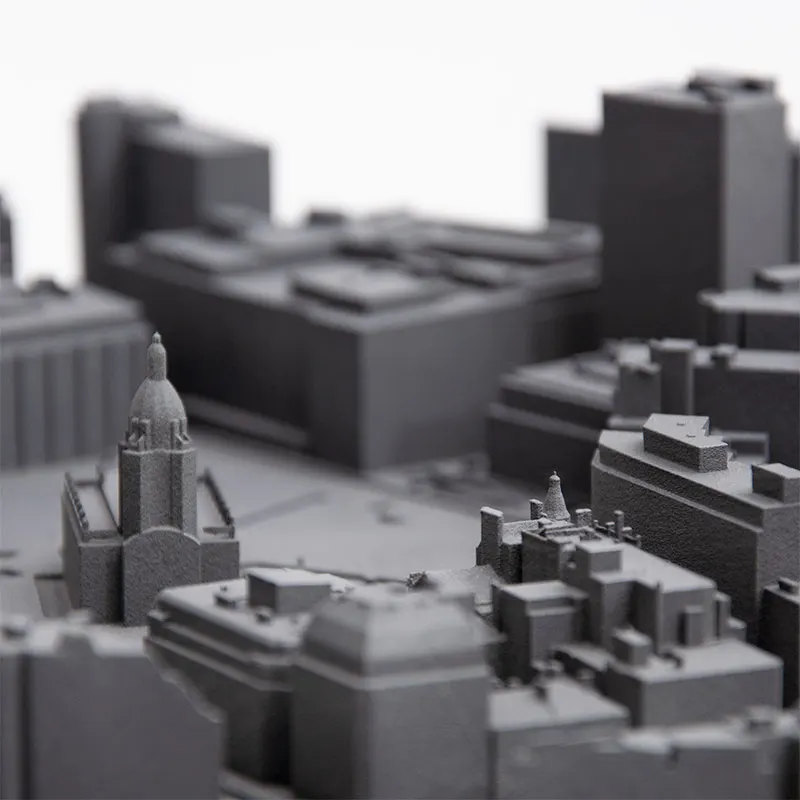

3D PRINTING ARCHITECTURAL MODELS

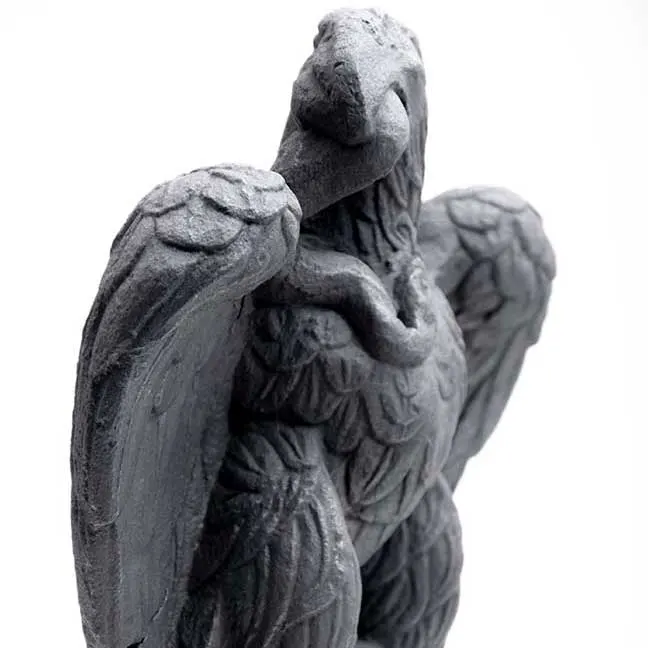

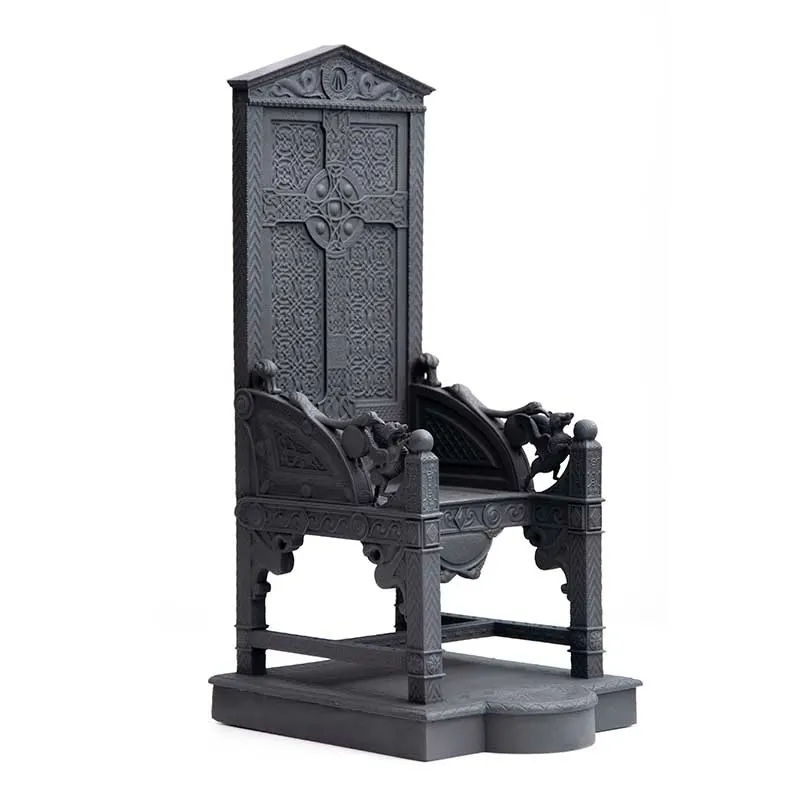

3D PRINTING FOR SCULPTURE AND CREATIVE ARTS
| Feature | HP Jet Fusion 5200 |
|---|---|
| Printhead Resolution | 1200 dpi |
| 3DPrint Speed | 4115 cm3/hr (251 in3/hr) |
| Material | PA12, PA11, PA12 with Glass Beads, TPU |
| Build Volume | 380 x 284 x 380 mm (15 x 11.2 x 15 inches) |
| Layer Thickness | 0.08 mm (0.003 inches) |
| Supported File Types | 3MF, STL, OBJ, VRML |
| Included Software | HP SmartStream 3D Build Manager |
| Consumption | 12 kW (typical) |
| 3D Printer Dimensions | 2210 x 1200 x 1448 mm (87 x 47 x 57 inches) |
| Power Requirements | 380-415 V (line-to-line), 50 A max, 50/60 Hz 200-240 V (line-to-line), 80 A max, 50/ |
