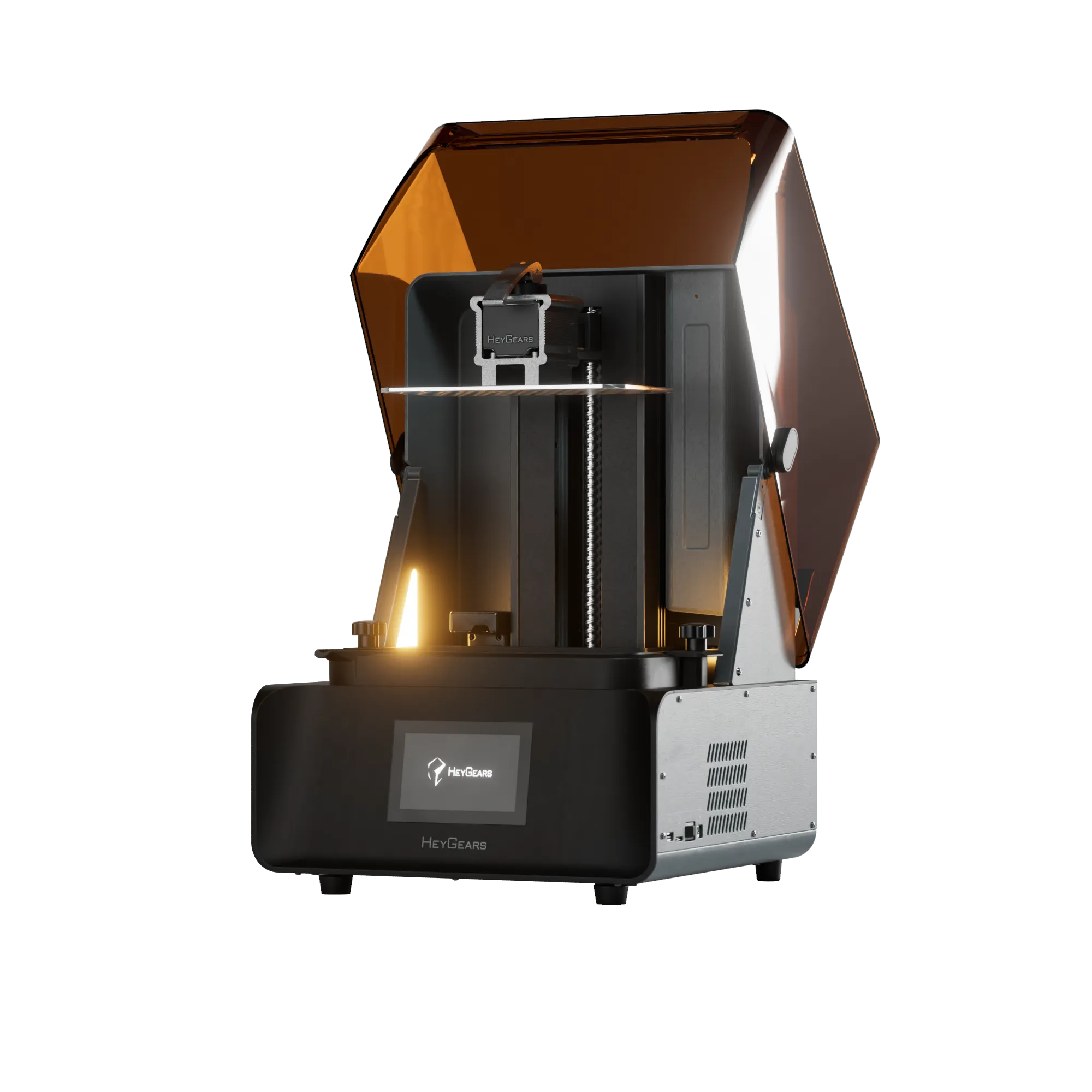

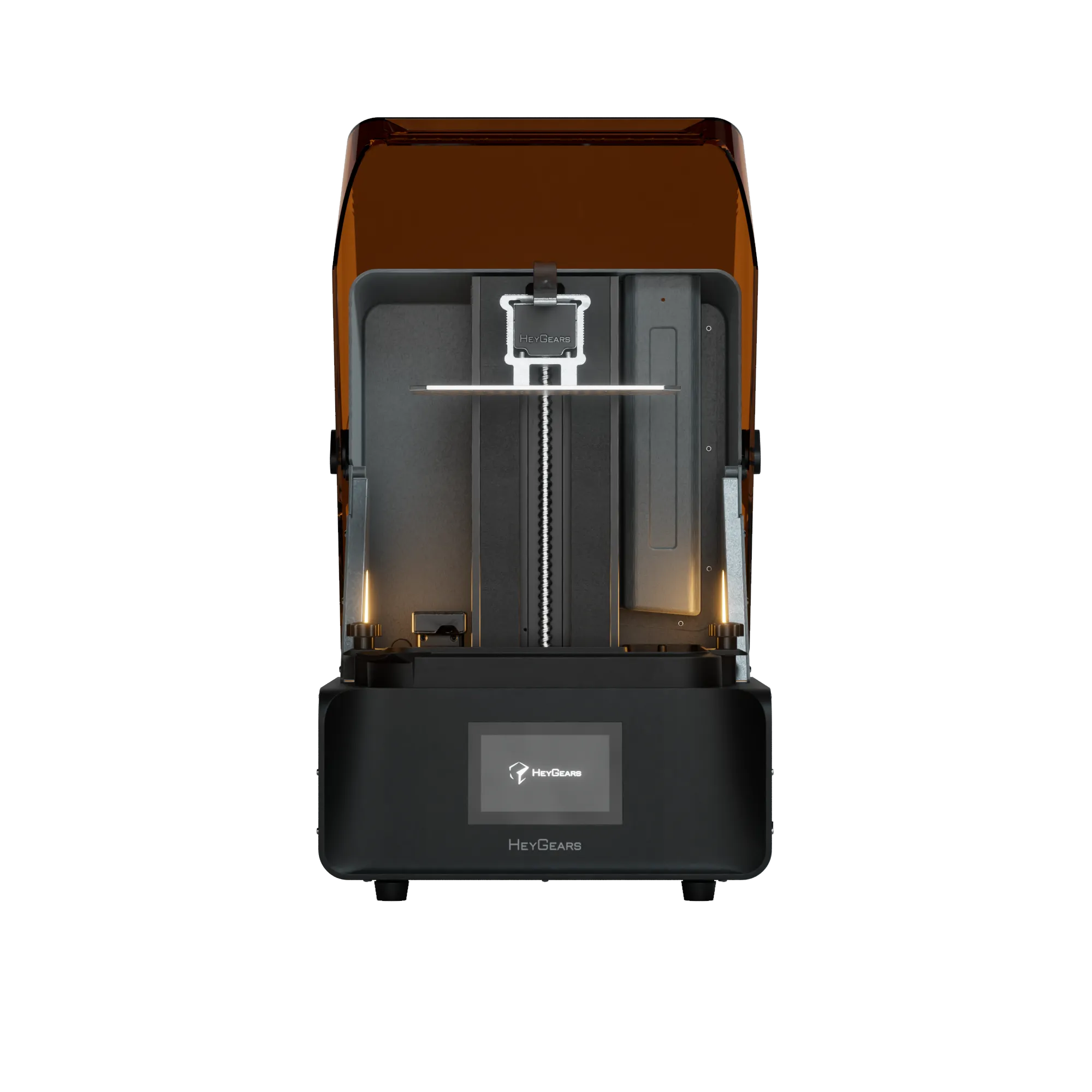

HeyGears UltraCraft Reflex RS
LCD (MSLA) printer with a 222 × 122 × 228 mm build volume, 10.3-inch 8K mono screen, C5-grade Z-axis module, 405 nm optics, 29.7 μm native XY pixel and ±15 μm accuracy at 30–100 μm layers.
LCD (MSLA) printer with a 222 × 122 × 228 mm build volume, 10.3-inch 8K mono screen, C5-grade Z-axis module, 405 nm optics, 29.7 μm native XY pixel and ±15 μm accuracy at 30–100 μm layers.
Who this is for
Entry point into the Reflex ecosystem.
Supplied and supported in the UK by 3D Printworx, backed by HeyGears’ global technical resources.
Highlights
C5-grade Z-axis module for stable layer thickness and clear detail
Full-field screen calibration for consistent accuracy
Dynamic Motion Algorithm 3.0, up to 33% faster
Open Material Mode for third-party 405 nm resins
Specifications
| 3D printing technology | LCD (MSLA) |
| Build volume | 222 × 122 × 228 mm |
| LCD screen | 10.3 inch 8K mono |
| Z-axis module | C5 grade accuracy |
| Optical wavelength | 405 nm |
| XY native pixel | 29.7 μm |
| Accuracy | ±15 μm |
| Layer thickness | 30–100 μm |
| Weight | 20 kg |
| Rated power | 180 W |
| Voltage | 100–240 V ~50/60 Hz |
Complete your HeyGears workflow
A Reflex is bought as a system rather than a machine: printer, engineering resin, Blueprint Studio for preparation, and the UltraCraft Wash and Cure stations for repeatable post-processing. Function add-ons — the Pulsing Release Module and heated tanks — extend what the platform will run.
Software — Blueprint Studio and Blueprint Go
Blueprint Studio handles model placement, support generation, material-specific print profiles and production workflow management. Blueprint Go is the mobile companion for monitoring prints. For engineers who want direct process control, Blueprint Studio also includes a Print Process Editor built on Open Material Mode.
Learn and get support
Setup instructions, software tutorials, application solutions and technical guidance are published in the HeyGears Knowledge Base.
Pricing and availability
Prices shown are UK benchmarks and are confirmed on enquiry. Tell us the configuration you need and we will quote it, including resin, post-processing and delivery.
Buying in the UK
UK company, UK demonstrations, UK-based buying advice — backed by HeyGears’ global technical support and knowledge base. Speak to us before you buy and arrange a demonstration with your own parts.
Works with
Confirmed by us, not inferred from a spec sheet. If yours is not listed, ring and we will check.
- HeyGears UltraPrint PAS10 Standard Modeling ResinGeneral-purpose modelling resin, the standard choice across the Reflex line.View machine →
- HeyGears UltraPrint PAB10 Standard Modeling ResinSharp 0.1 mm detail with smooth matte surfaces, pre-tuned profiles, smaller support contact points and 45 J/m impact resistance.View machine →
- HeyGears UltraPrint PAP10 Precise Detail ResinProduction resin for intricate geometry where edge definition matters most.View machine →
- HeyGears UltraPrint PAF10 Flexible Production ResinDurable, flexible, PVC-like production resin with good breakage resistance. Also offered clear, at 82% light transmittance and 30% elongation at break.View machine →
- HeyGears UltraPrint PAWW10 Water Washable ResinWater-washable modelling resin — no solvent needed for post-processing.View machine →
- HeyGears UltraPrint PAWW20 Water Washable ResinWater-washable modelling resin, cured in about five minutes. Wastewater must not go to drain.View machine →
- HeyGears UltraPrint PARP10 Rapid Prototyping ResinFast-turnaround prototyping resin for iteration rather than end use.View machine →
- HeyGears UltraPrint PAWR10 Wear-Resistant ResinProduction resin for parts that see handling, contact and abrasion.View machine →
- HeyGears UltraPrint PAU11 ABS-like ResinABS-like toughness. PAU11 runs on Reflex, Reflex Turbo, Reflex RS and Reflex RS Turbo; the earlier PAU10 is Reflex and Reflex Turbo only.View machine →
- HeyGears UltraPrint PAH10 High-Temperature Resistance ResinHeat-resistant resin for parts that see elevated temperature in service.View machine →
- HeyGears UltraPrint PAH270 Injection-Molding ResinUltra-high-temperature, high-stiffness material for tooling, moulds, jigs, fixtures and demanding engineering work.View machine →
- HeyGears UltraPrint PAU20 Structural ResinPC-like tooling and engineering resin for functional tooling, fixtures and demanding engineering parts.View machine →
- HeyGears UltraPrint PAU10 ABS-like ResinABS-like engineering resin for general engineering and functional prototyping. Runs on Reflex and Reflex Turbo.View machine →
- HeyGears UltraPrint PAE10 Elastic ResinElastic tooling resin for flexible engineering parts, seals and fixture applications.View machine →
- HeyGears UltraPrint PAT10 Transparent ResinTransparent resin for housings, flow and visualisation parts and clear prototypes.View machine →
- HeyGears UltraPrint RE40 Resilient ElastomerSoft elastomeric components.View machine →
- HeyGears UltraPrint RE70 Resilient ElastomerMedium-durometer flexible parts.View machine →
- HeyGears UltraPrint RE80 Production Resilient ElastomerProduction-grade resilient elastomer for TPU-like functional parts, lattices and wearables.View machine →
- HeyGears UltraPrint DE70 Damping ElastomerDamping elastomer for vibration and energy-absorption applications.View machine →
- HeyGears UltraPrint PARP10 Orange Clay Rapid Prototyping ResinRapid prototyping resin in a clay finish, for design models and visual prototypes.View machine →
- HeyGears UltraPrint PAM10 Mixable Design ResinDesign and colour-oriented modelling resin.View machine →
- HeyGears UltraPrint PAC10 Wax Casting ResinInvestment and lost-wax casting patterns.View machine →
- HeyGears UltraPrint ClearG115 Gloss GlazeGloss finishing coating for compatible parts.View machine →
- HeyGears Blueprint StudioThe preparation and workflow software for the Reflex ecosystem: model placement, support generation, material-specific print profiles and production workflow management. Includes a Print Process Editor built on Open Material Mode for engineers who want direct process control.View machine →
- HeyGears Blueprint GoMobile companion to Blueprint Studio for monitoring and managing prints away from the machine.View machine →
Goes with it
- HeyGears UltraCraft CureCuring station for the Reflex series, sold with the printers as a combo or on its own.
- HeyGears UltraCraft WashWash station for the Reflex series.
- HeyGears Reflex Pulsing Release Module KitPulsing release module, reducing peel force between layers on the Reflex line.
- HeyGears GreenPrint Purification UnitVOC and resin air-purification unit for offices, studios and enclosed production environments.
- HeyGears Pulsing Release Module 2 (PrintBoost)Reflex 2 series enhancement for lower peel force, advanced materials and higher productivity.
- HeyGears Heating Scraper — Reflex 2 SeriesTemperature-management upgrade for the Reflex 2 series.
- HeyGears UltraCraft Wash Washing BoxWashing box for the UltraCraft Wash station.
- HeyGears Reflex RS Build PlatformReflex RS Build Platform for the HeyGears Reflex RS series.
- HeyGears Reflex RS LCD Screen ProtectorReflex RS LCD Screen Protector for the HeyGears Reflex RS series.
- HeyGears Reflex RS LCD Screen Tape Kit (2 pack)Reflex RS LCD Screen Tape Kit (2 pack) for the HeyGears Reflex RS series.
- HeyGears Reflex RS Pulsing Release Film (2 pack)Reflex RS Pulsing Release Film (2 pack) for the HeyGears Reflex RS series.
- HeyGears Reflex RS Pulsing Release Resin TankReflex RS Pulsing Release Resin Tank for the HeyGears Reflex RS series.
- HeyGears Reflex RS LCD ScreenReflex RS LCD Screen for the HeyGears Reflex RS series.
- HeyGears Reflex RS Resin TankReflex RS Resin Tank for the HeyGears Reflex RS series.
