UnionTech · Industrial SLA, small and mid-size parts

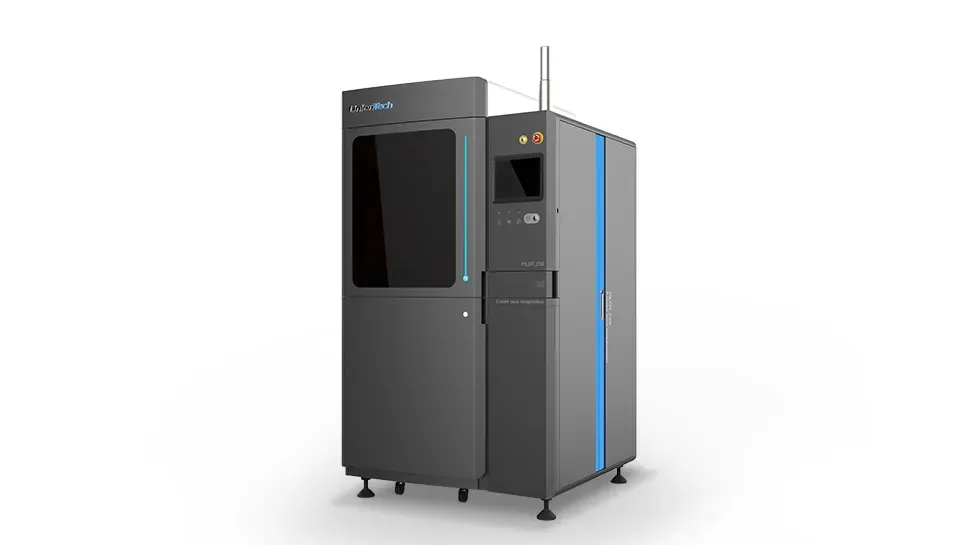

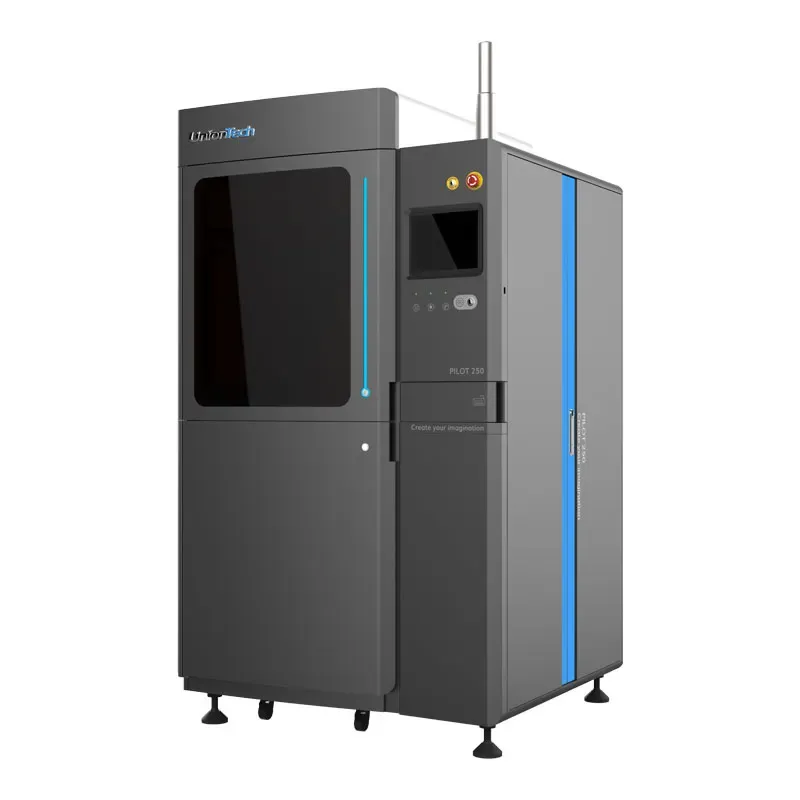

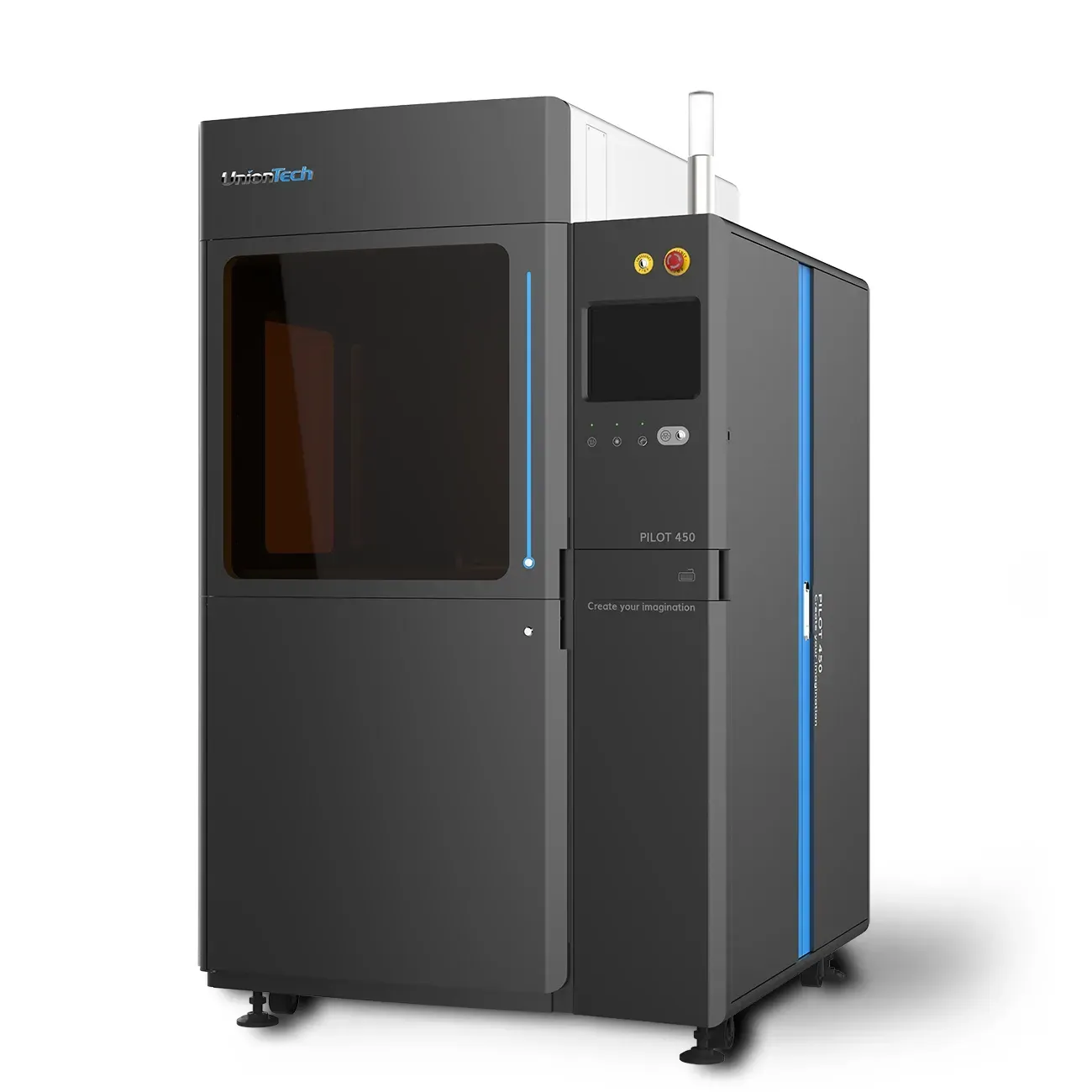

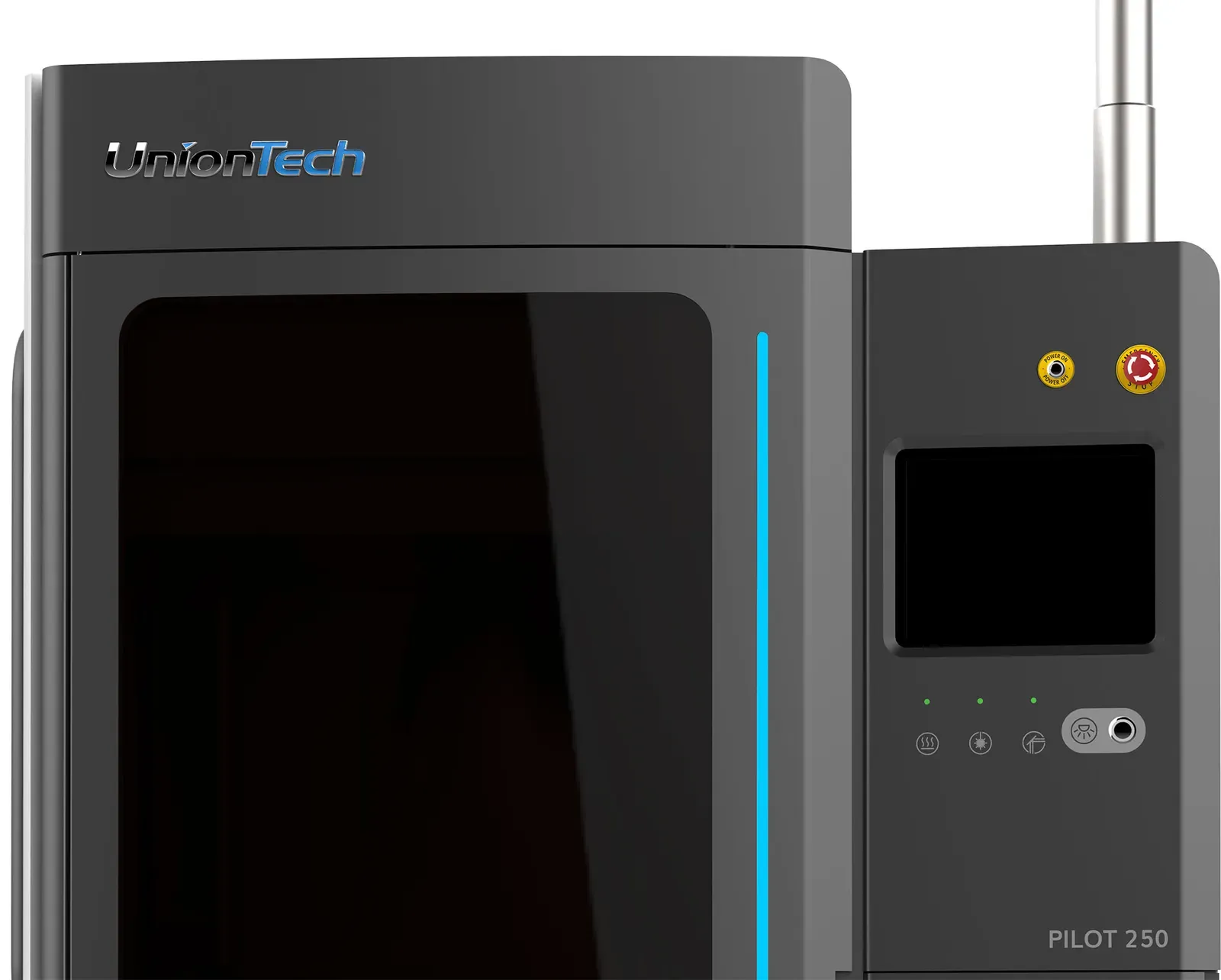

UnionTech Pilot Series SLA
Industrial SLA for high-quality small and medium parts, in 250 mm or 450 mm build sizes. Layers down to 0.05 mm on an open platform that runs Somos or whichever resin suits the job.
More from UnionTech- Max build envelope, mm (Pilot 450)
- 450 × 450 × 400
- Min layer thickness, mm
- 0.05
- Max scanning speed
- 10 m/s
Priced on configuration. We quote on the build size, laser and materials your work needs.
- Sold, installed and supported in the UK by Europac 3D
Why the Pilot

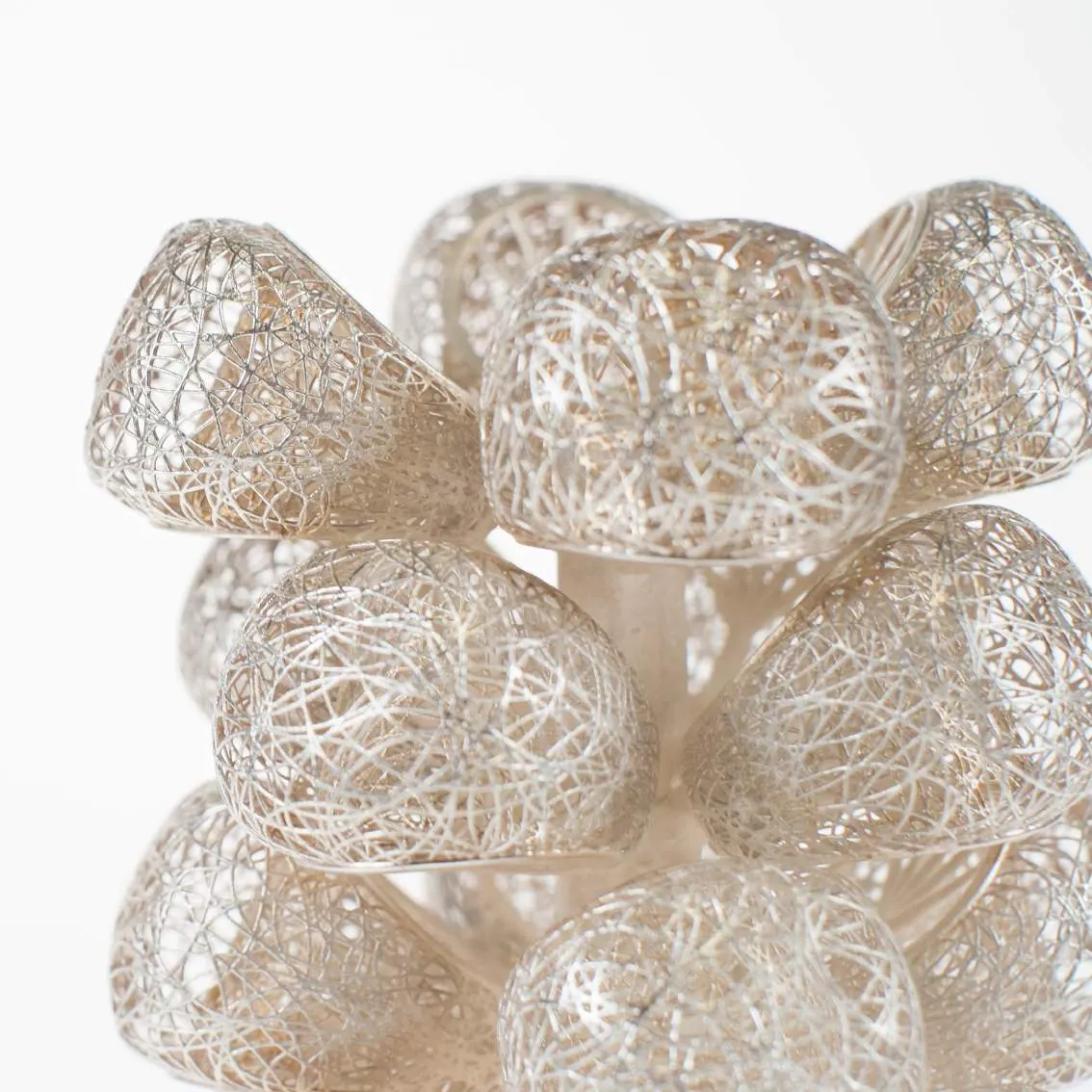

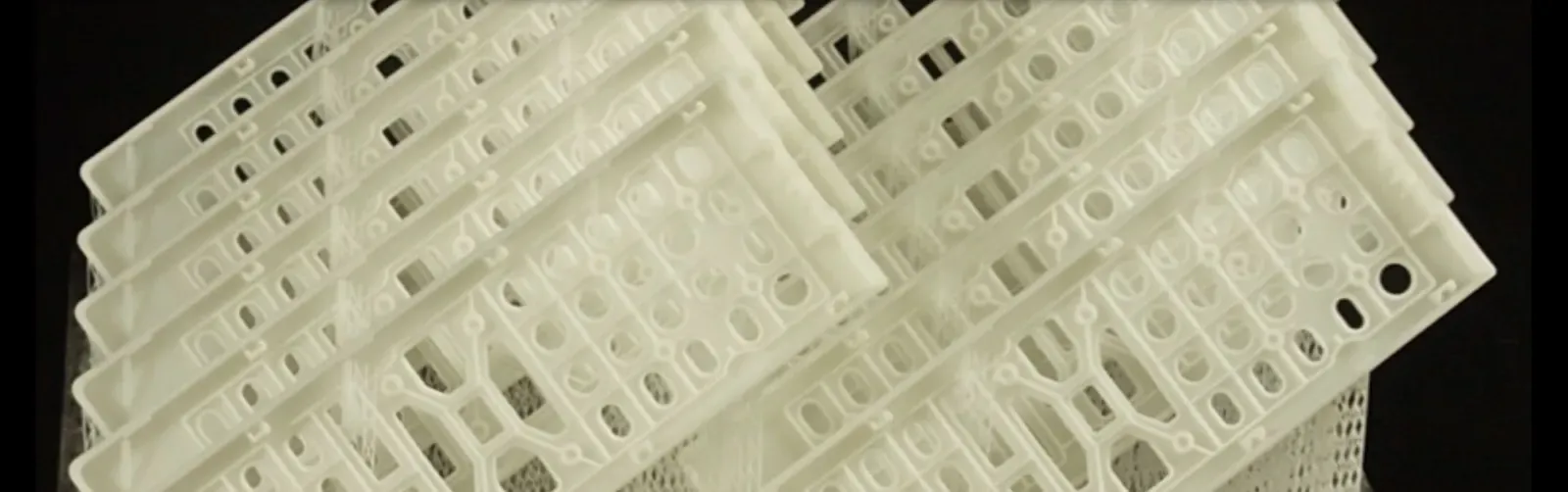

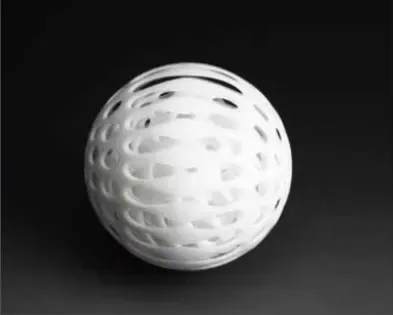

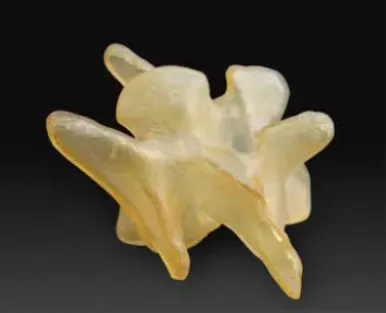

Used for engineering parts, medical models, architectural parts, jewellery.
Open material platform
Open software and materials, so we can match the resin to the application: Somos grades, medical-grade, high-temperature or high-impact materials.

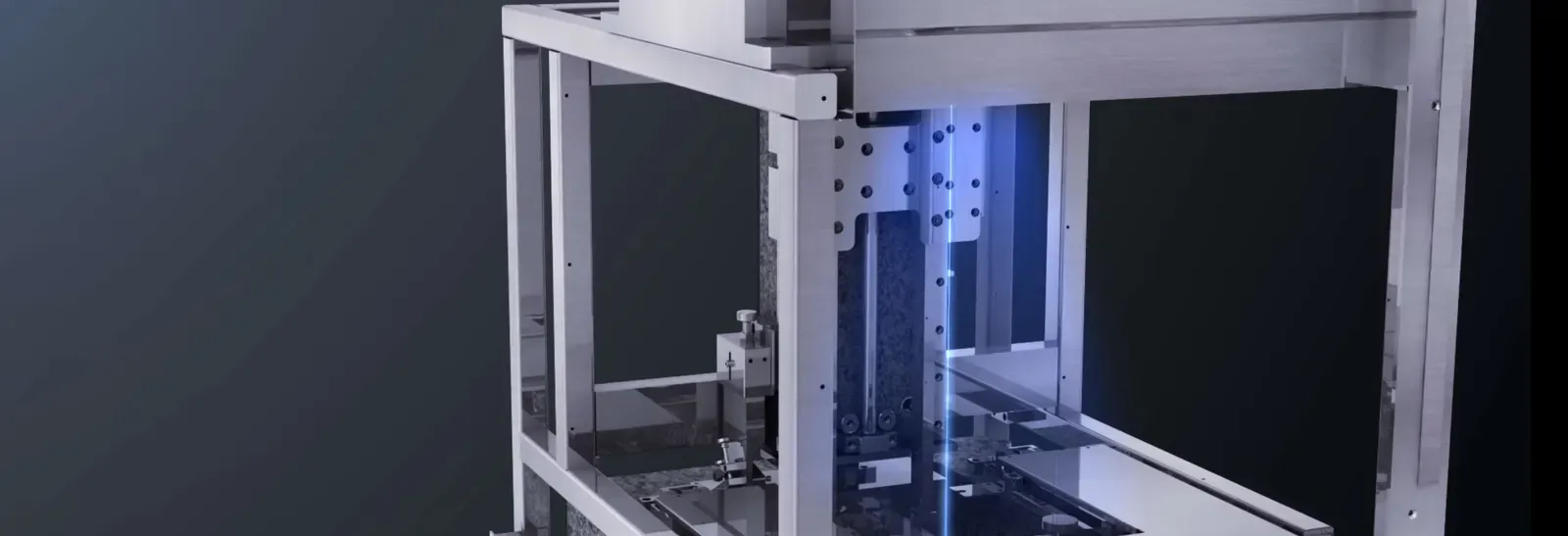

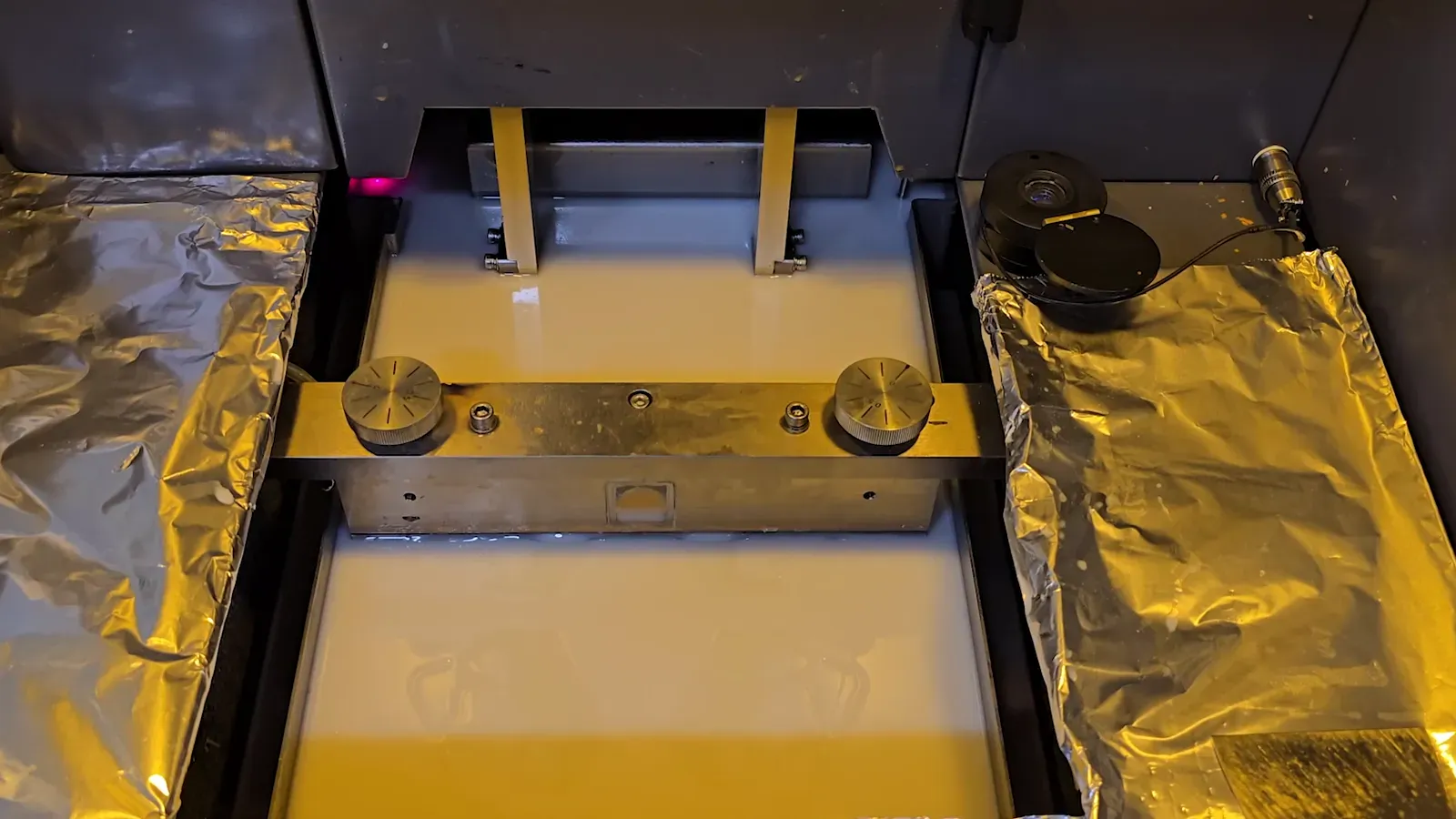

Granite recoater frame
A granite recoater frame gives excellent sidewall quality as well as small details, with isotropic strength in X, Y and Z.
Fine layers, fast scanning
Layers from 0.05 mm, a nominal beam size of 0.08 mm plus scanning at 6 to 10 m/s, with automatic control of resin level and process parameters.
High-grade components
Built with components from suppliers such as Panasonic, Spectra Physics, DSM and Advanced Optowave. This keeps operating and maintenance costs low.
Specification
2 models, side by side.
| Pilot 250 | Pilot 450 | |
|---|---|---|
| Build volume | 250 × 250 × 250 mm | 450 × 450 × 400 mm |
| Accuracy | ±0.025 mm, ±0.1% | ±0.1 mm, ±0.1% |
| Layer thickness | 0.05-0.25 mm | 0.05-0.25 mm |
| Laser | 355 nm | 355 nm |
| Beam size | 0.06-0.08 mm | 0.08-0.12 mm |
| Scanning speed | 6-10 m/s | 6-10 m/s |
| Resin vat | Replaceable | Replaceable |
| Control software | RSCON | RSCON |
| Rated power | 2.4 kVA | 3.0 kVA |
| Machine size | 1090 × 1000 × 1850 mm | 1310 × 1290 × 2135 mm |
| Machine weight | 726 kg | 945 kg |
Specifications from uniontech3d.com.
Software selector

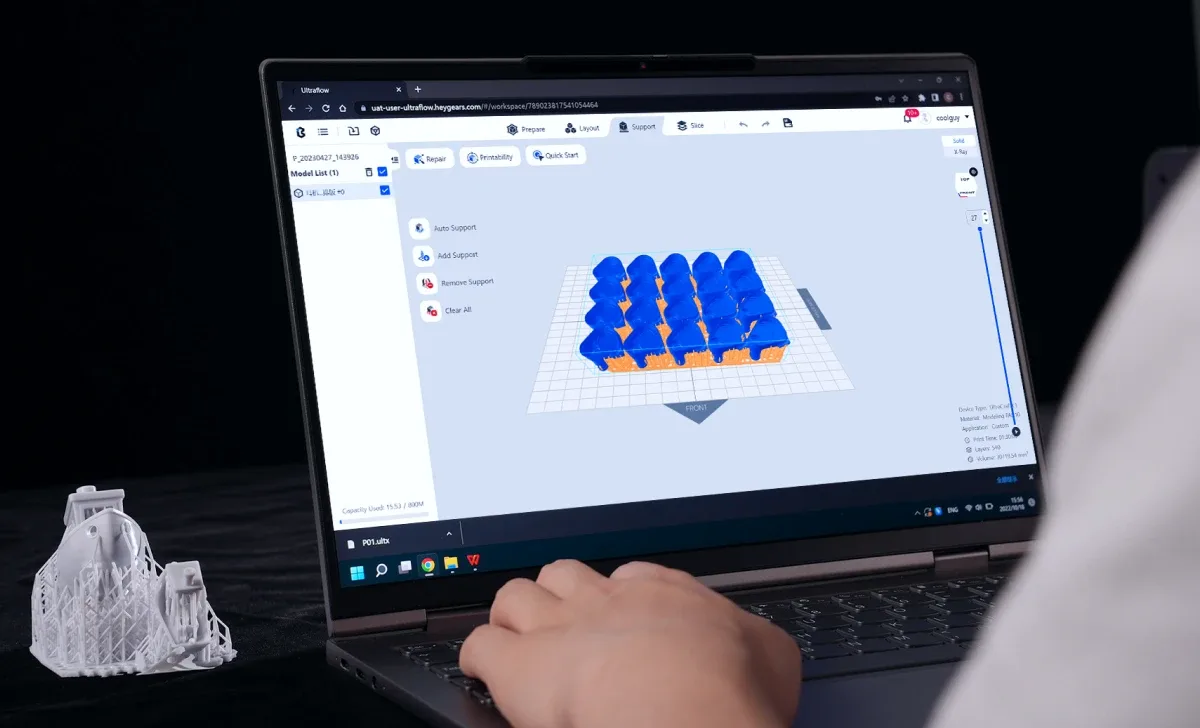

The software that runs it
Included with every printer
UnionTech RSCON
Closed-loop control of the laser, platform, resin level and temperature on every UnionTech SLA machine.

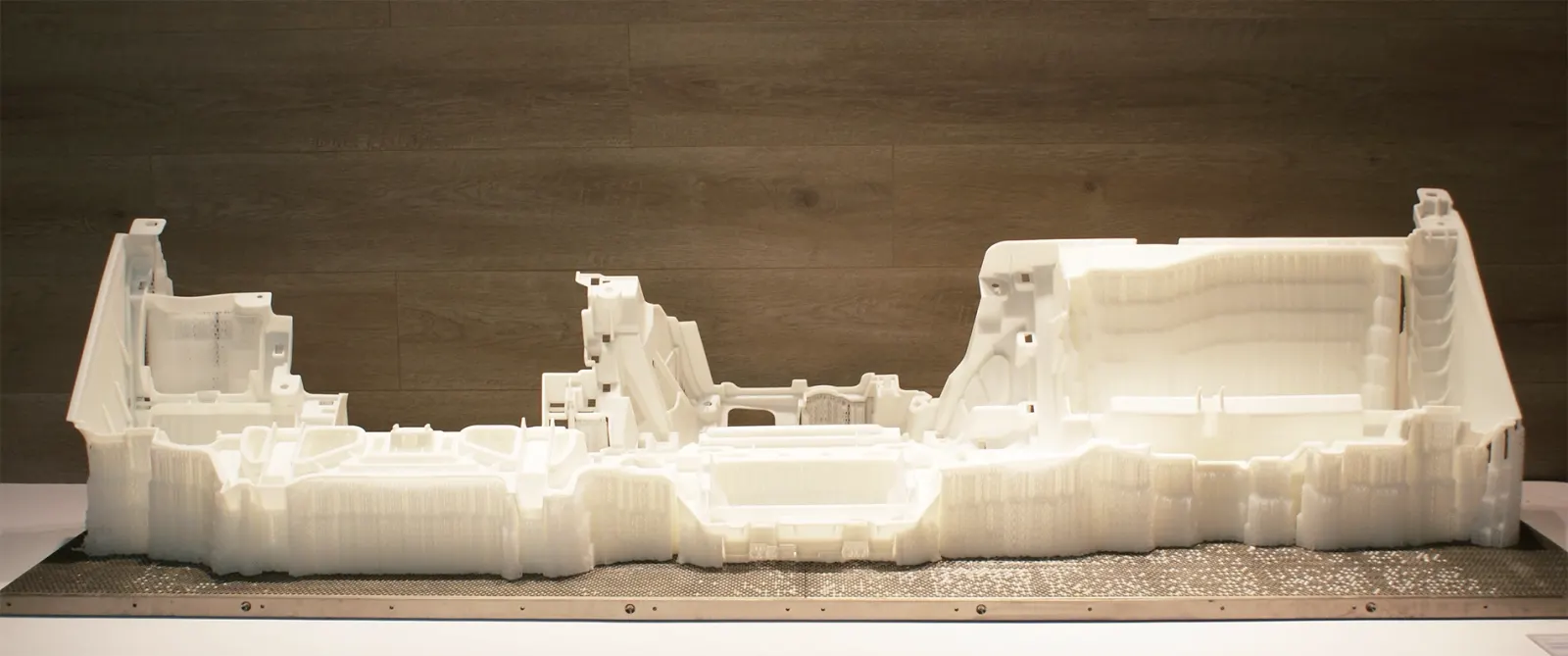

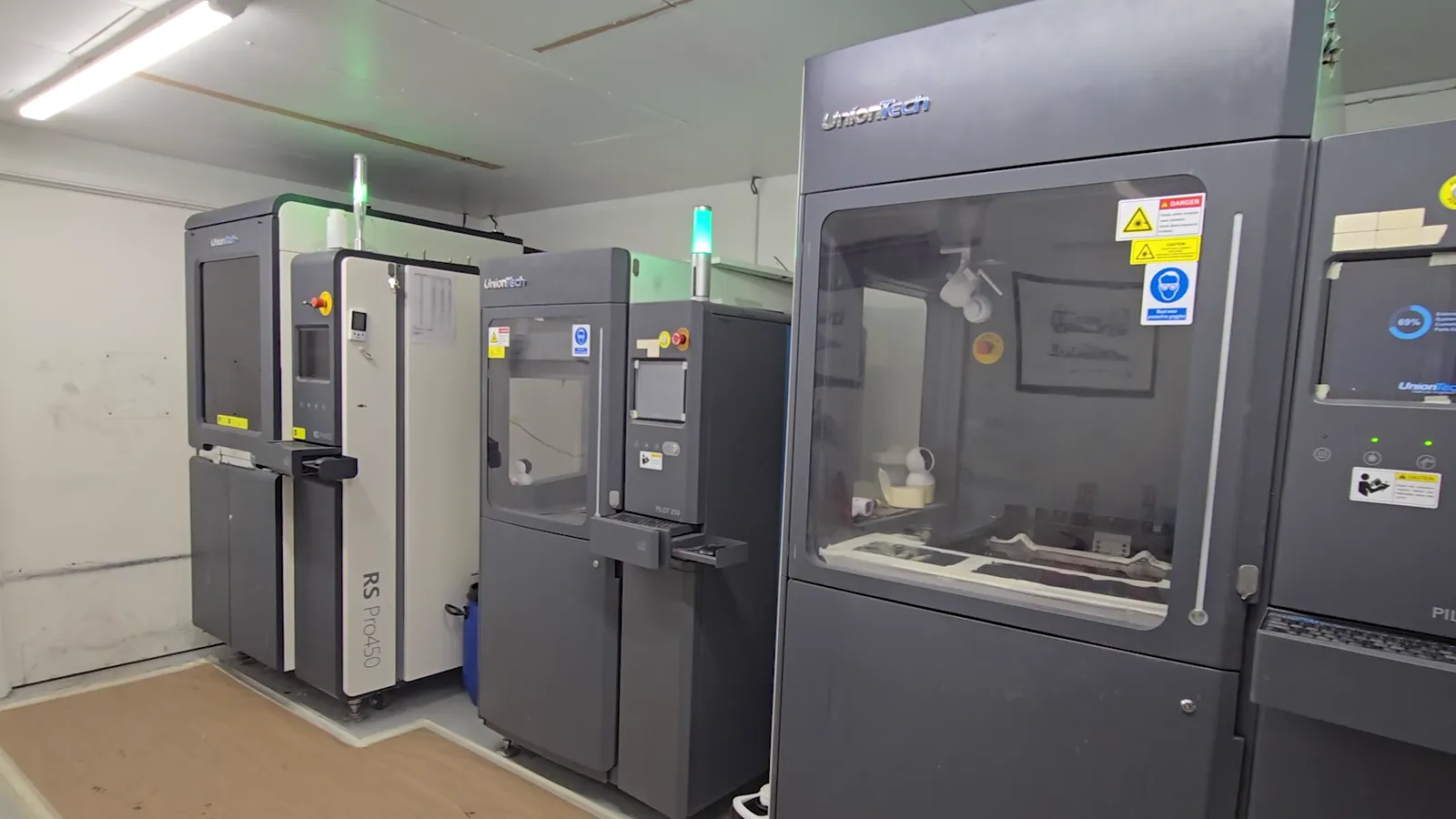

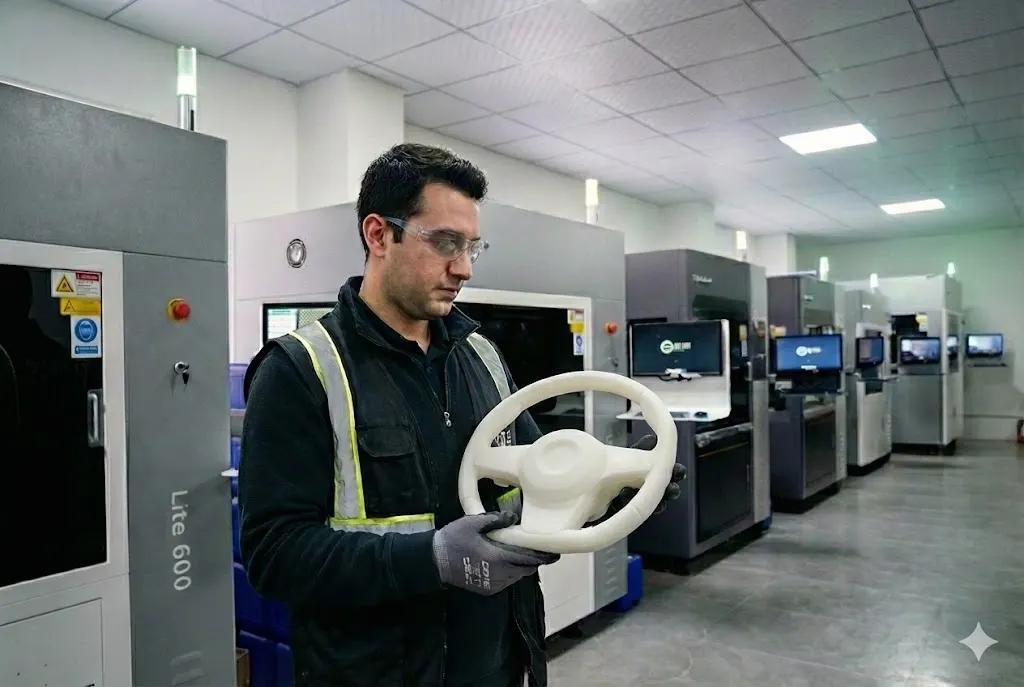

UnionTech printers at work
Compare with
| UnionTech Pilot Series SLA | UnionTech RSPro Series SLA | UnionTech Lite 600 2.0 | |
|---|---|---|---|
| Price | POA | POA | POA |
| Build volume | 250 × 250 × 250 mm / 450 × 450 × 400 mm | 600 × 600 × 500 mm to 2100 × 700 × 800 mm | 600 × 600 × 400 mm |
| Layer thickness | 0.05-0.25 mm | 0.05-0.25 mm to 0.1-0.25 mm | 0.05-0.25 mm |
| Light source | 355 nm | 355 nm / 4 × 355 nm | 355 nm |
| Machine size | 1090 × 1000 × 1850 mm / 1310 × 1290 × 2135 mm | 1550 × 1600 × 2115 mm to 2630 × 1945 × 2765 mm | 880 × 1280 × 1895 mm |
| Weight | 726 kg / 945 kg | 1490 kg to 2520 kg | 760 kg |
See the Pilot before you decide
Tell us what you make and we will arrange a demonstration. Or send us a part: we will tell you which printer suits it. We will print it for you if none is worth buying yet.
