UnionTech · Industrial SLA, mid-size parts

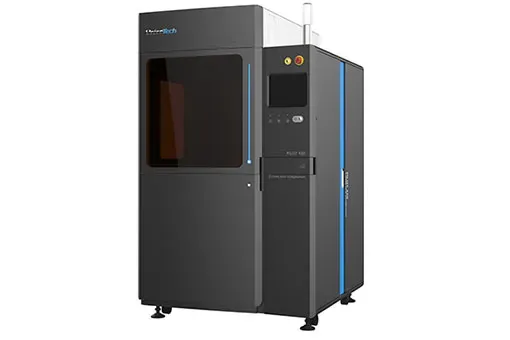

UnionTech PILOT 450
Industrial SLA with a practical 450 × 450 × 400 mm build. Layers from 0.05 mm and ±0.1 mm on parts under 100 mm, on an open platform that runs a range of resins.
More from UnionTech- Build volume, mm
- 450 × 450 × 400
- Layer thickness, mm
- 0.05-0.25
- Beam size, mm
- 0.08-0.12
Priced on configuration. We quote on the build size, laser and materials your work needs.
- Sold, installed and supported in the UK by Europac 3D
Why the PILOT 450
For architectural, decorative or design work, glass and jewellery prototypes.
A practical build size
450 × 450 × 400 mm takes mid-size parts whole, or a platform of smaller ones.
Quality and precision
Layers from 0.05 mm, a 0.08-0.12 mm beam and ±0.1 mm on parts under 100 mm.
Open materials
Compatible with a range of SLA resins, so the material can follow the job.
Software for the whole job
Software for file preparation and production, with UnionTech RSCON running the machine under closed-loop control.
Granite recoater frame
UnionTech’s brochure lists a granite recoater frame for stable recoating.
Replaceable vat
The resin vat is replaceable.
What it makes
UnionTech show these parts printed on the PILOT 450.
Architectural parts
Architectural models and parts.
Decorative parts
Decorative and display pieces.
Glass parts
Parts for glass products.
Jewellery
Jewellery pieces.
Creative prototypes
Prototypes for cultural and creative products.
Specification
Specifications from uniontech3d.com. UnionTech ask buyers to confirm the current offering, so check any figure you plan around with us.
- Build volume
- 450 × 450 × 400 mm
- Accuracy under 100 mm
- ±0.1 mm
- Beam size
- 0.08-0.12 mm
| Build volume | 450 × 450 × 400 mm |
|---|---|
| Accuracy | Under 100 mm: ±0.1 mm. 100 mm and over: ±0.1% of the dimension |
| Layer thickness | 0.05-0.25 mm |
| Laser | 355 nm, solid-state frequency-tripled Nd:YVO₄ |
| Beam size | 0.08-0.12 mm |
| Scanning speed | 6-10 m/s |
| Resin vat | Replaceable |
| Control software | UnionTech RSCON |
| Data interface | .stl |
|---|---|
| Network | Ethernet, IEEE 802.3, TCP/IP |
| Rated power | 3.0 kVA |
| Systems control | Closed-loop |
| Room temperature | 22-26 °C |
| Relative humidity | Below 40% |
| Machine size | 1310 × 1290 × 2135 mm |
| Machine weight | 945 kg |
Before it arrives
What the PILOT 450 needs from your site, from UnionTech's published data.
Floor space and weight
The machine measures 1310 × 1290 × 2135 mm and weighs 945 kg. Check the route in and the floor loading before delivery.
Power
It is rated at 3.0 kVA.
The room
UnionTech specify a room at 22-26 °C with relative humidity below 40%.
Data and network
It takes .stl files over Ethernet.
Software selector
The software that runs it
Included with the printer
UnionTech RSCON
UnionTech's control software. It runs the printer under closed-loop control and takes .stl files from your preparation software. UnionTech’s brochure lists PolyDevs or Materialise Magics for part preparation.
Bought, installed and supported in the UK
Europac 3D supplies UnionTech printers in the UK.
Advice before you buy
Tell us what you make. We will tell you whether the PILOT 450 suits it, then quote on the configuration and materials your work needs.
Installation
We install the printer on your site.
Training
We train your operators to run the printer and its software.
Service and support
Support after installation comes from Europac 3D in the UK, backed by UnionTech.
UnionTech printers at work
PILOT 450 questions
How accurate is the PILOT 450?
UnionTech quote ±0.1 mm on parts under 100 mm and ±0.1% of the dimension on larger parts.
Is the resin vat replaceable?
Yes.
Which is right for me, the PILOT 450 or 250?
The 450 builds up to 450 × 450 × 400 mm for larger parts or bigger batches. The 250 has a finer beam and tighter accuracy on very small features.
What does the room need?
UnionTech specify a room at 22-26 °C with relative humidity below 40%. The printer is rated at 3.0 kVA.
Who installs and supports the PILOT 450 in the UK?
Europac 3D. We supply, install and support UnionTech printers in the UK, as well as training your operators.
Compare with
| UnionTech PILOT 450 | UnionTech PILOT 250 | UnionTech RSPro600 2.0 | |
|---|---|---|---|
| Price | POA | POA | POA |
| Build volume | 450 × 450 × 400 mm | 250 × 250 × 250 mm | 600 × 600 × 500 mm |
| Accuracy, parts under 100 mm | ±0.1 mm | ±0.025 mm (under 25.4 mm) | ±0.1 mm |
| Layer thickness | 0.05-0.25 mm | 0.05-0.25 mm | 0.05-0.25 mm |
| Lasers | 355 nm | 355 nm | 355 nm |
| Scanning speed | 6-10 m/s | 6-10 m/s | 6-10 m/s |
| Machine weight | 945 kg | 726 kg | 1490 kg |
See the PILOT 450 before you decide
Tell us what you make and we will arrange a demonstration. Or send us a part: we will tell you which printer suits it. We will print it for you if none is worth buying yet.
